Product´s description Premium solar fence kit - Complete safety box + 15 J LTE Smart energizer, 200 W panel
Practical solution for operation in places without electricity during the season. A 15 J solar-powered fence kit suitable for demanding electric fences.
Safety box for energizer and battery, Mounting mandrel and Regulator included
Safety box for the energizer for electric fence and battery. Electrifiable metal battery box with robust mounting mandrel. The box can be connected to the fence, then energized - anti-theft protection, 2 × insulated key to open the box safely. Complete wiring and earthing included. Has a DIN fencee rail for quick and easy attachment of the fencee energizer. Controller for solar panels with 200 W output.
Safety box features:
- Robust box made of galvanized steel.
- Stable mounting mandrel to the box
- Internal ground connection for the fenceenergizer
- All cables inside the box
- High voltage box - anti-theft protection
- Insulated keys for safe unlocking of the box
- External dimensions of the box: 37 × 37 × 34.5 cm (W×D×H)
Smart LTE fence energizer 15 J with combined 12/230 V
Powerful smart fencee energizer with 15 J power suitable for electric fences up to 120 km. LEDs and Bargraph colour-coded to indicate the operation of the fence. Overview of the fence voltage and power on your mobile phone. Warning alerts. LTE FENCEE ENERGY DUO Celullar EDC150
LTE electric fence control by mobile phone
200 W solar panel for electric fence
The location of the solar panel should be chosen to be south-facing and as perpendicular to the sun as possible. Poor positioning, shielding and dirt will reduce the performance of the solar panel. The fence power supply cannot be powered by the solar panel alone, the battery and controller must always be connected at the same time.
Mounting bracket for attaching the 200 W solar panel to the safety box
Mounting bracket for mounting the 200 W solar panel on the safety box. Consists of 6 parts and fasteners. Please refer to the instructions on how to assemble the bracket for mounting the solar panel.

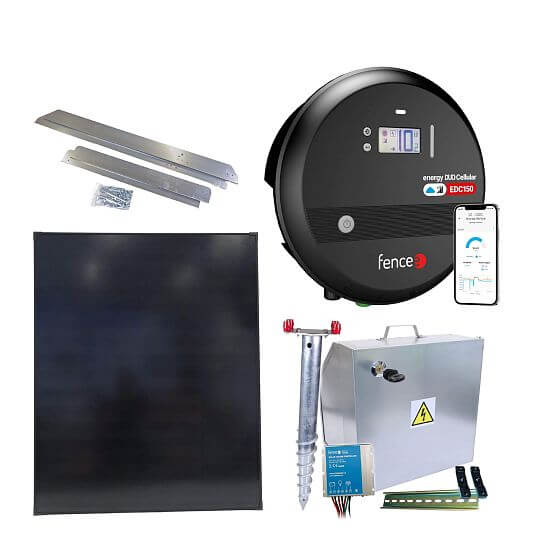

Package contents:
- LTE fencee energy DUO Cellular EDC150 electric fence

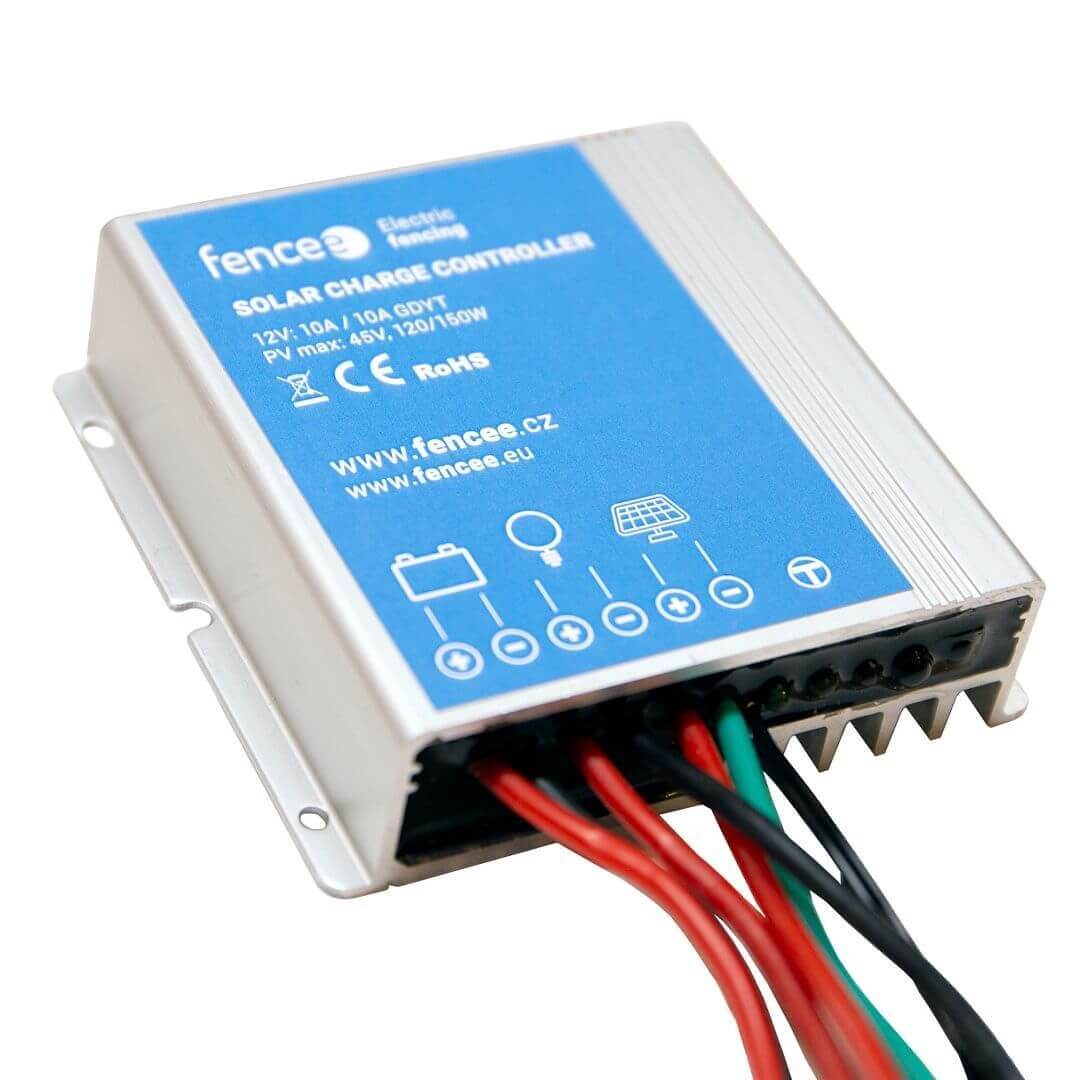

- Safety box with DIN rail and 10 A regulator
- Solar panel with 200 W output
- Mounting bracket for attaching the 200 W solar panel to the safety box
This kit does not include a battery. A 12 V battery to power the energizer must be purchased. Accessories in complete kits are covered by a 24 month warranty only. All fencee generators come with a 36 month extended warranty. Mounting the LTE energizer in a metal box may degrade LTE network connectivity.
Get maximum visibility with the fencee Cloud app
| Power source | 230 V ~ / 12 V |
| Energizer consumption 230 V | 6 - 21 W |
| Energizer consumption 12 V | 470 - 1400 mA |
| Output energy | 15 J |
| Input energy | 20 J |
| Output voltage | 10500 V |
| Output voltage 500 Ω | 8000 V |
| ON/OFF | |
| LED ON/OFF | |
| LED impulse | |
| LED low battery voltage | |
| LED lower power 50% | |
| LED error check | |
| Time delay | |
| LED impulse bargraph | |
| Reduced output terminal | |
| Earth measuring terminal | |
| LCD display | |
| fencee Cloud connection | |
| TEOR. max. CEE | 350 km |
| Low vegetation | 120 km |
| Medium vegetation | 28 km |
| High vegetation | 16 km |
| LTE | Cat M1 + NB1 |
| BLUETOOTH | 4.1 |
| Earthing 1 m | 6x |
| El. fence nets | 38x |
| Diameter | 290 mm |
| Depth | 108 mm |
| Weigth | 3301 g |
Manuals and files for downloading
Manual - fencee energy DUO Cellular EDC (CZ,EN,PL,HU) Manual - Mounting brackets for solar panels Manual - Regulators for solar panels Manual - Boxes for energizers and solar panels Manual - Solar panels 40, 100, 200 WFAQ
Go to How-to guide
Protected by utility model
Smart Farm fencee Cloud system is protected in the EU utility model Nº 1870632, Nr. 202018102939, Nr. 31675
