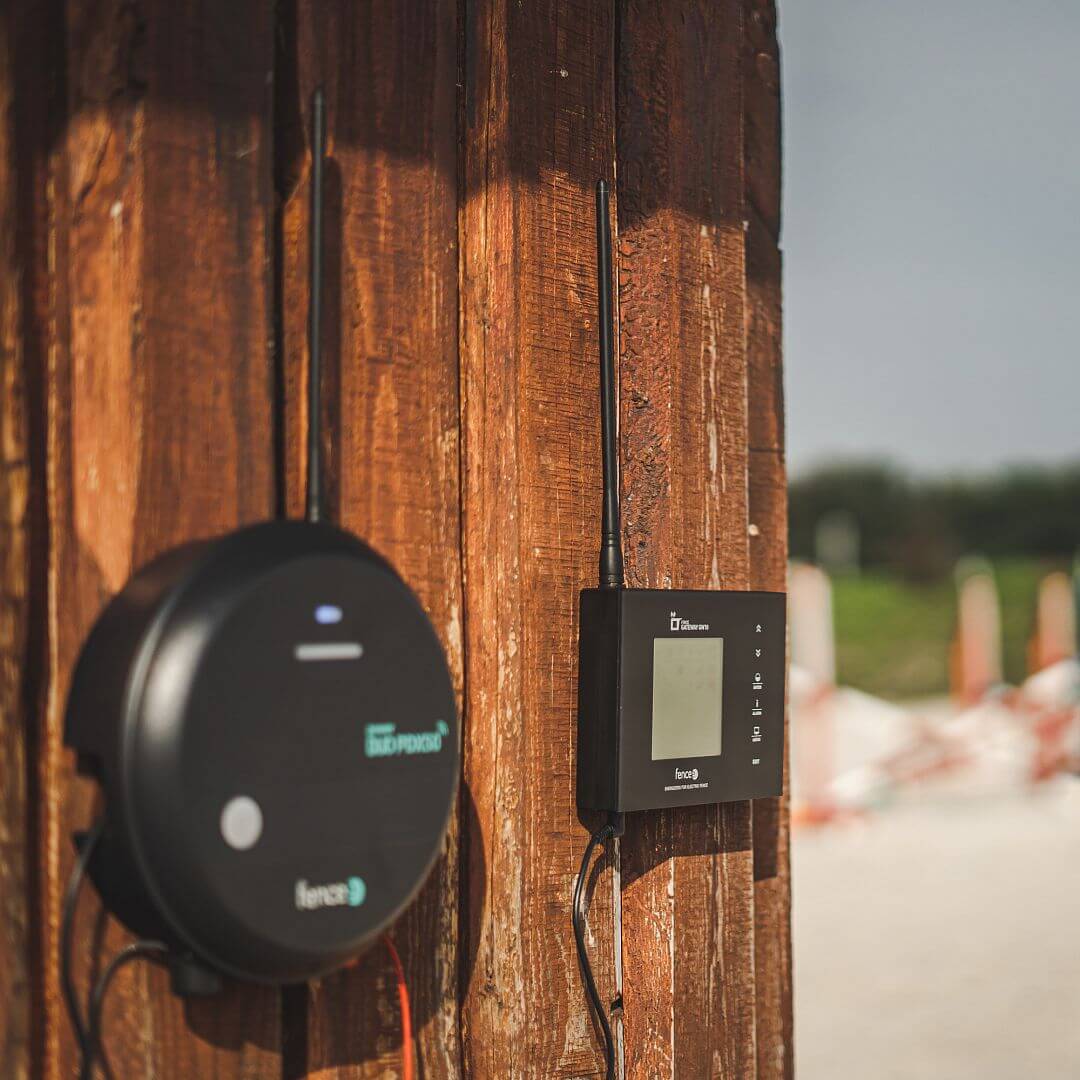

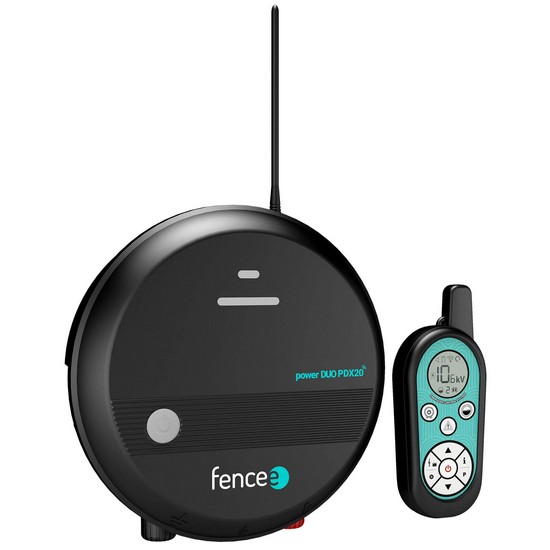

Electric fence energizer fencee power DUO RF PDX20

Product´s description Electric fence energizer fencee power DUO RF PDX20

The compact and modern construction of the energizer fencee power DUO RF PDX20 with a switch and the latest microprocessor technology inside offers a practical fence solution under control. Energizers have the option of reducing the output energy to 50%. The LEDs and BARGRAPH on the front of energizer show the status of the power supply, measure the voltage on the fence and also signal a possible fault on the fence.

The remote control of the energizer can be used for up to 10 km distance in ordinary terrain and buildings. In difficult, eg hilly terrain, the range is shortened, on the contrary, in open space it can be even longer. An external antenna can be used to improve the signal transmission between the energizer and the controller (note ACCESSORY REFERENCE).

  • Up to six different energizers can be controlled by one controller.
  • One energizer can be controlled by up to three controllers.

Remote signal transmission using RF technology (radio frequency) is absolutely unique in the world. This means that you no longer need a SIM card! Just install energizer, plug it in and you're working.

You can use fencee energizers anywhere on the pasture. If you have a problem in the fence, you don't have to go anywhere. Just press the button on the remote control and you will turn off the energizer, correct the fault and turn it on again. Even checking the further fence is not a problem. The remote control immediately informs you that:

  • the voltage on the fence has dropped below the set value, eg the line has been interrupted, the branch has fallen on the wires or there is tall grass,
  • the battery voltage has dropped below 12 V,
  • the signal is lost, eg by disconnecting the energizer, damaging the antenna or for other reasons.

Package contents:

  • energizer fencee
  • energizer remote control
  • CR2 battery
  • power adapter fencee DUO 14 V 1.5 m
  • earthing cable 150 cm (eyelet-eyelet)
  • connecting cable 100 cm (eye-heart)
  • battery cable fencee DUO 1.7 m
  • warning sign fencee
  • antenna to the generator
  • Operating Instructions

Power source 12 V / 230 V
Power consumption 40 - 160 mA
Input energy 3 J
Output energy 2 J
Output voltage 12000 V
Output voltage 500 Ω 6000 V
ON/OFF
LED ON/OFF
LED impulse
LED low battery voltage
LED lower power 50%
LED error check
LED impulse bargraph
External antenna SMA connector
Remote control
Data encoding
Controller batteries 1x CR2
Transmission frequency 869,525 MHz
Transmitting power +22 dBm
TEOR. max. CEE 60 km
Low vegetation 15 km
Medium vegetation 3 km
High vegetation 1,5 km
Earthing 1 m 2x
El. fence nets 5x
DIN rail
Diameter 210 mm
Depth 66 mm
Weigth 1599 g

Manuals and files for downloading

Manual fencee power DUO RF PDX
