Product´s description Smart portable battery energizer fencee battery DUO RF BDX30
The smart battery-powered 3 J electric fence is a compact solution for farms, for protecting pastures, fields and crops.

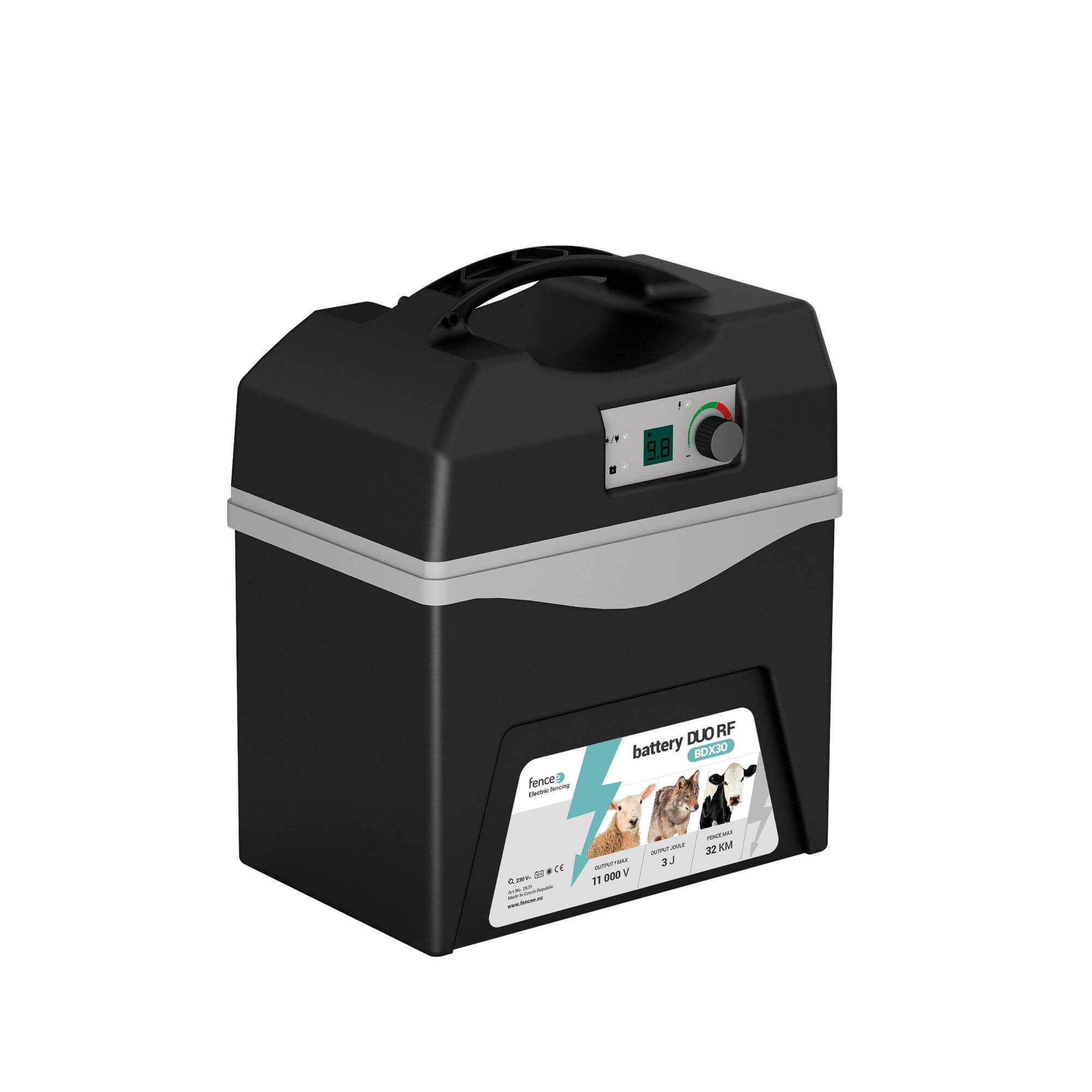

The battery-powered RF electric fence with 3 J of power

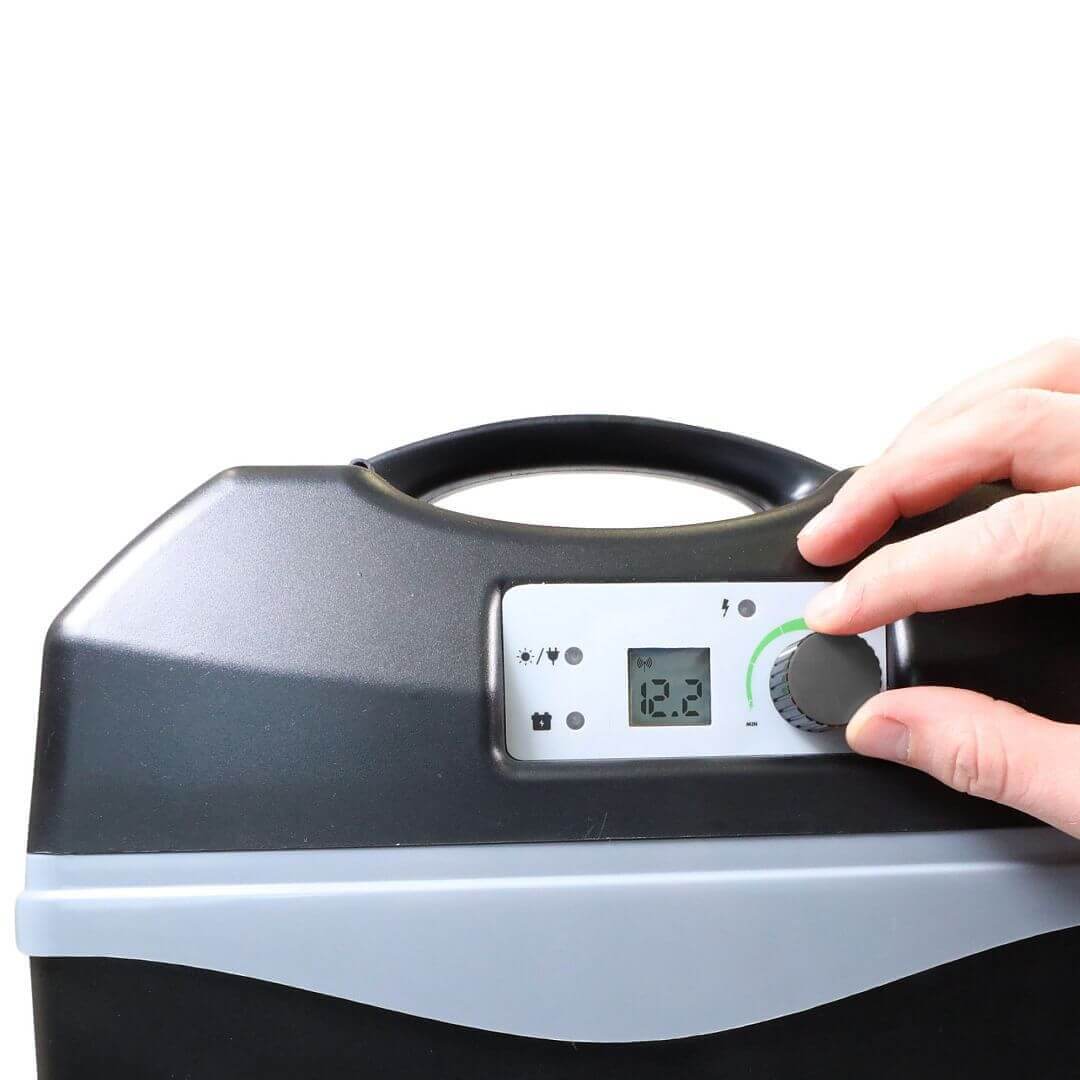

Smart battery operated fence with display to indicate source voltage, battery voltage and power level. Output power can be infinitely adjusted with the rotary control knob in 19 levels. Signalling LEDs and battery level indication. The device has a combined power supply, so it can also be powered by mains adapter.
Energy-saving fence mode and efficient battery usage
The microprocessor controls the operation of the power supply, adjusts the optimal power and ensures maximum efficient use of the battery. The battery generators allow you to regulate the power in 19 degrees. Levels 1 to 6 function as ecomode.
Robust design with handle for easy transport
Battery fence for harsh conditions and long term outdoor use. Protection IP44. The device is resistant to rain, weather conditions and UV radiation. Generator with integrated lightning protection.

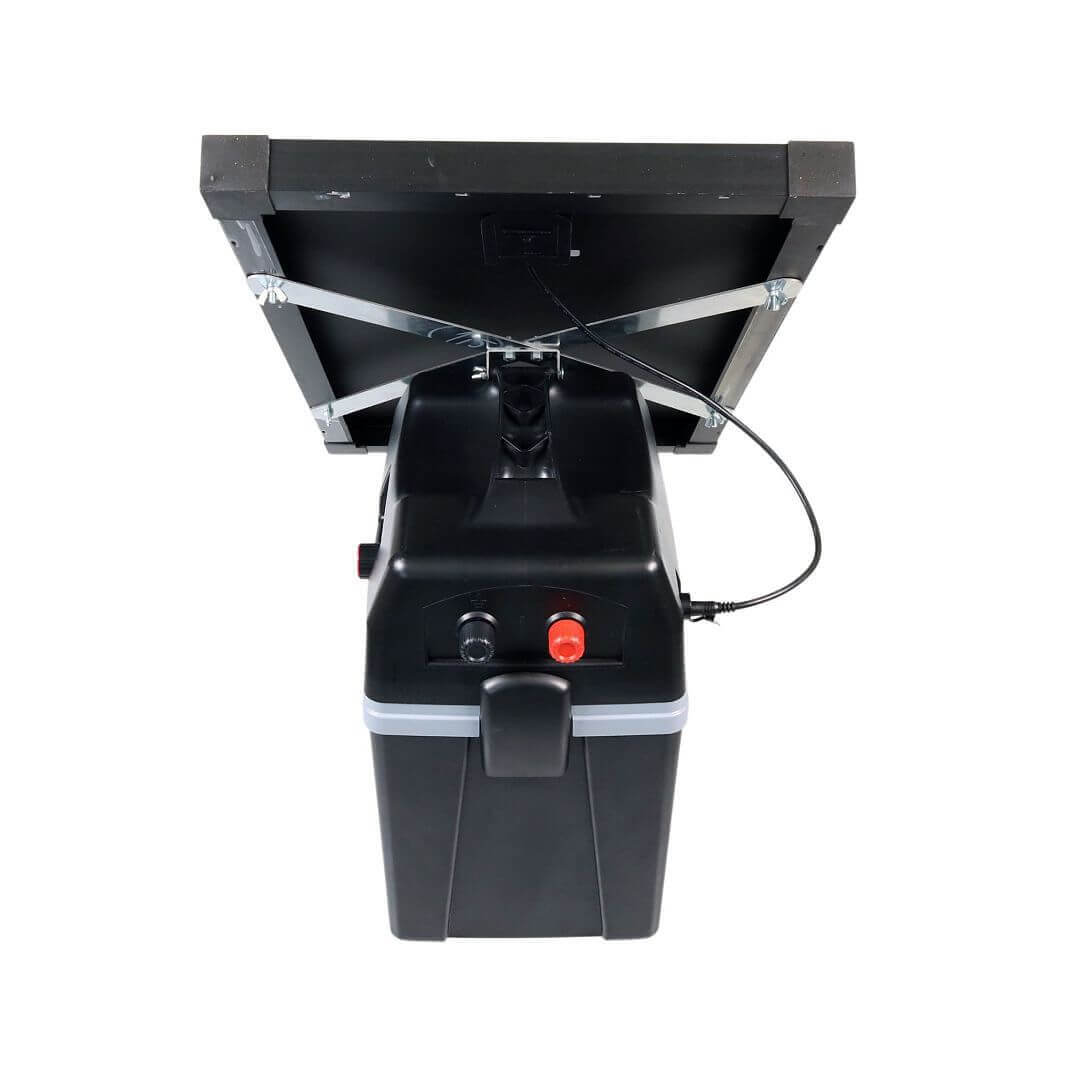

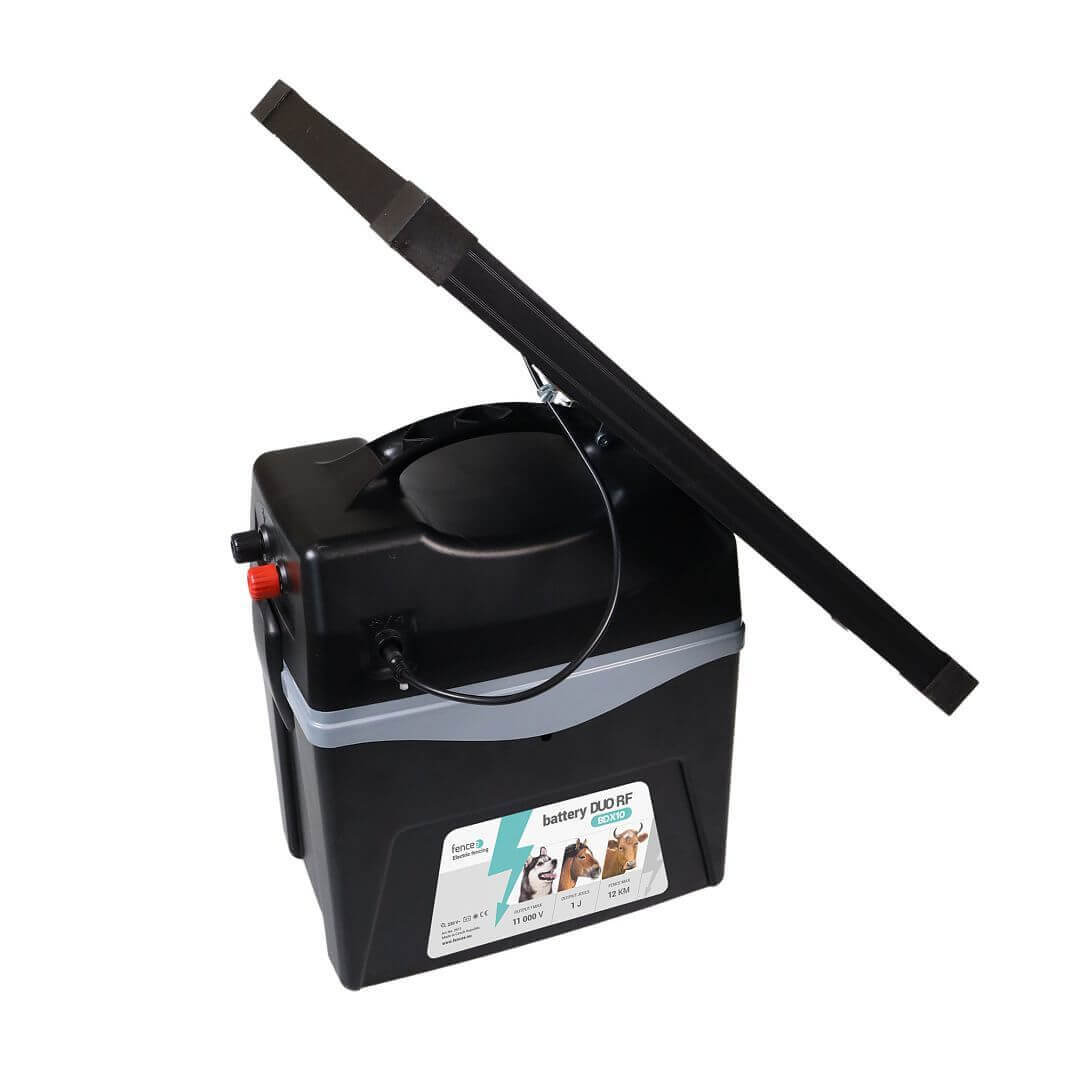

Possibility to connect a solar panel with 30 W power.
A 30 W solar panel can be connected to the generator to ensure continuous operation in locations without electricity. With the option of solar charging of the electric fence, you get an energy self-sufficient system that can be operated even in remote areas.

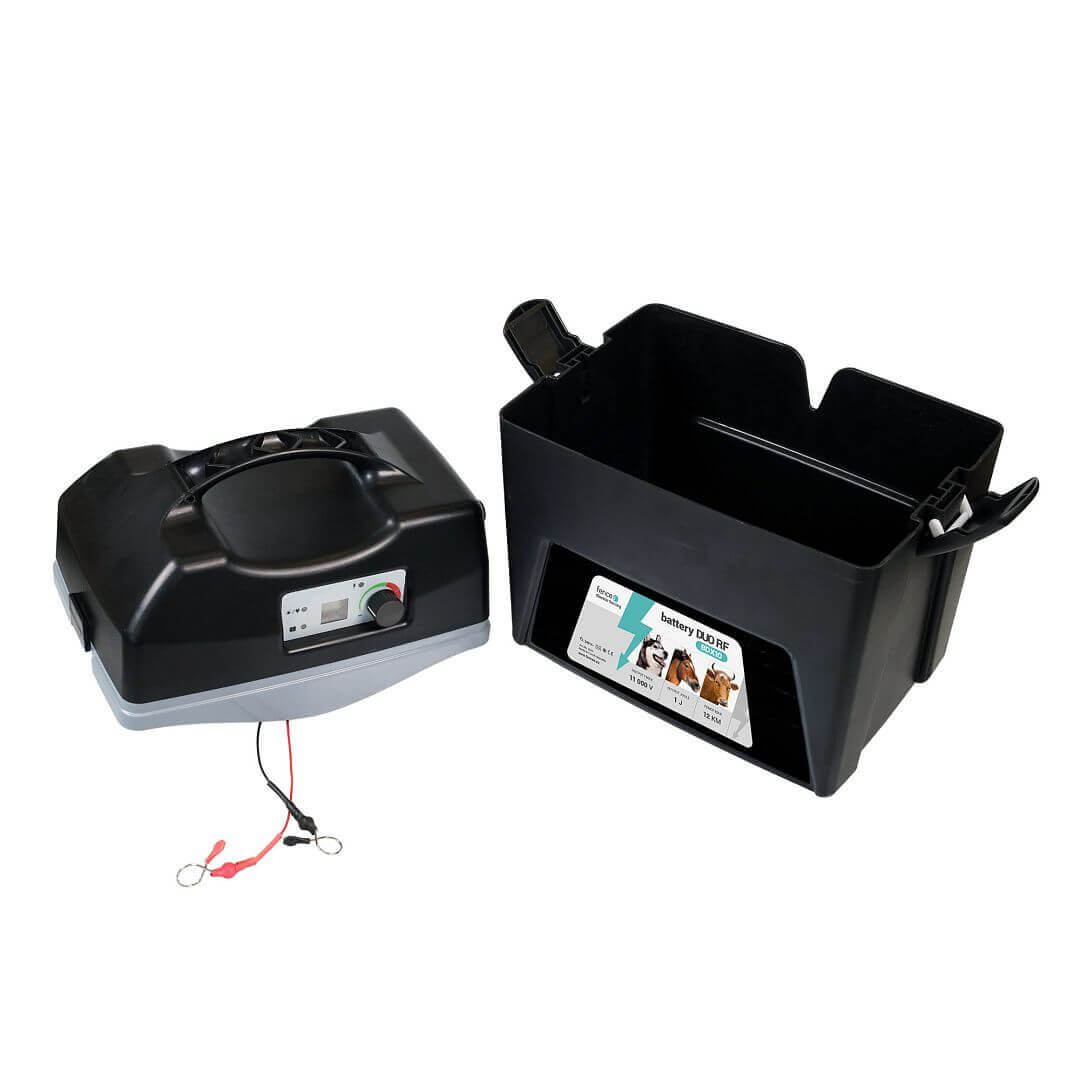

Plenty of space for a 12 V battery
The battery-powered fence has a large compartment for a 12 V battery with a capacity of 44 Ah. The battery is built inside the device and is protected from UV radiation. The person carrying the battery fence is protected from contact with the battery.
Package contents:
- 3 J battery RF source
- Integrated cable for connecting the power supply to the battery
- power adapter fencee DUO 14 V 1.5 m
- 100 cm connection cable (eyelet-heart)
- 150 cm ground cable (eyelet-loop)

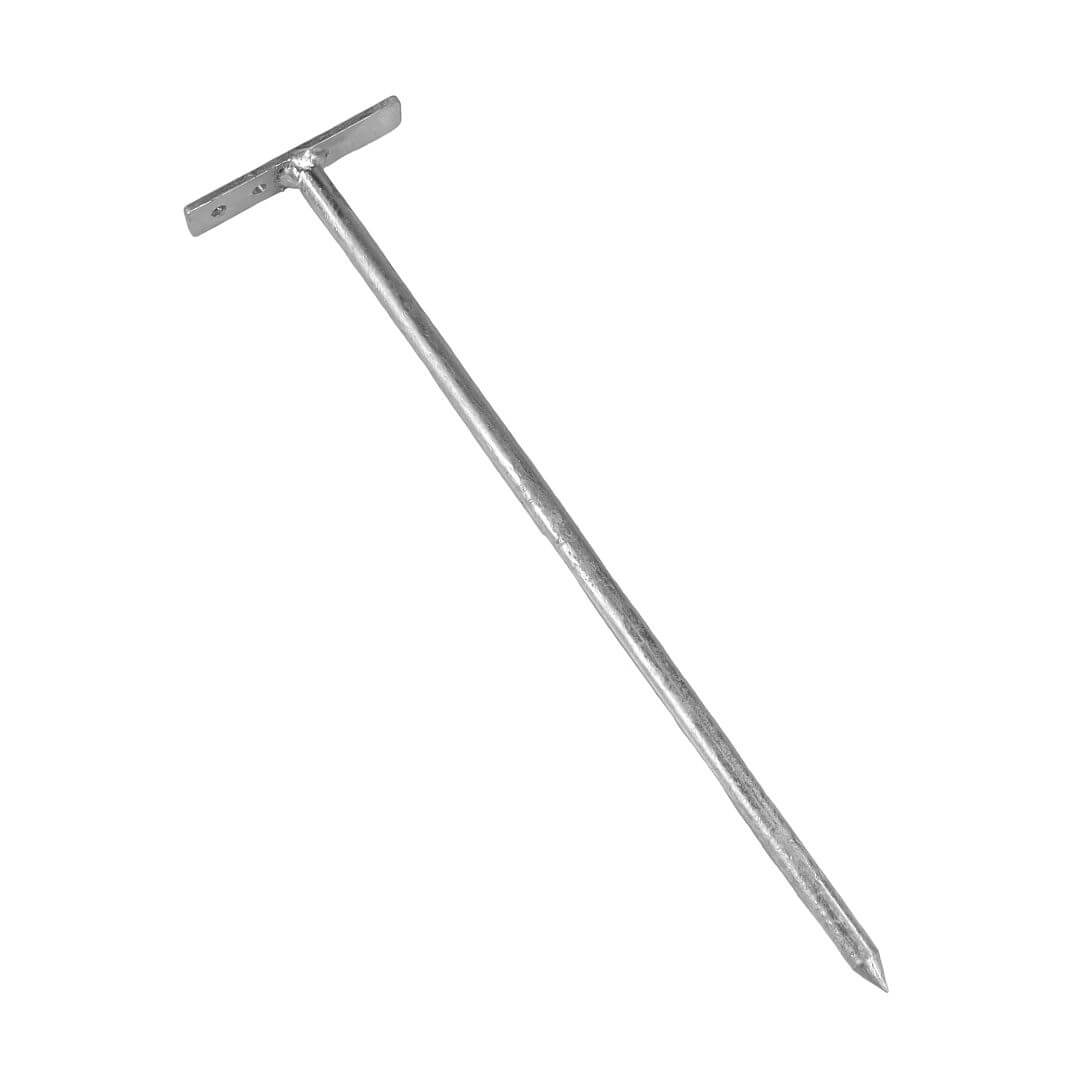

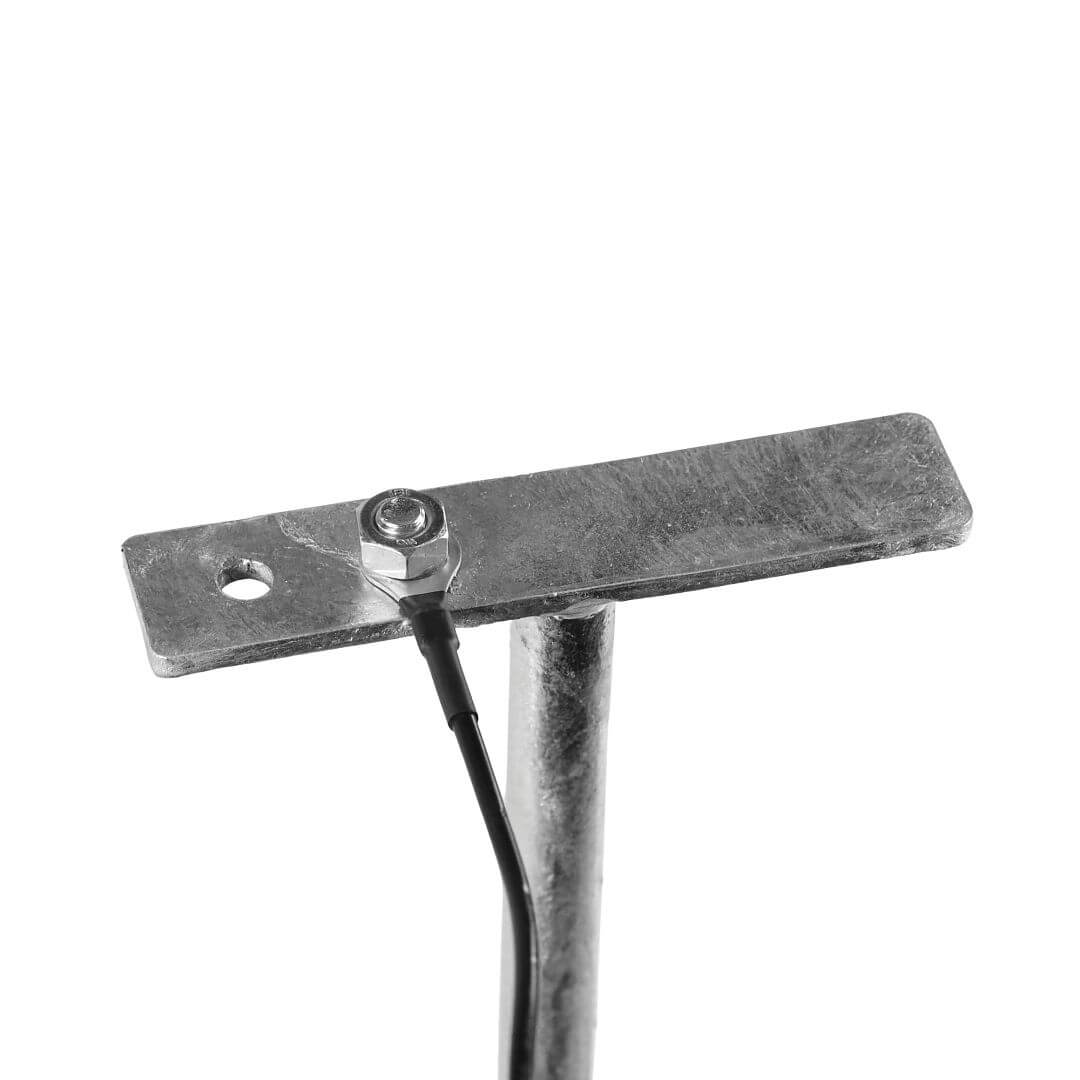

- grounding rod for the fence
- fencee warning plate
- operating instructions
The battery pack for the electric fence is supplied without the 12 V battery.
Get maximum visibility with the fencee Cloud app
In case you want to control the fence with your mobile phone for an unlimited range, get an additional central WiFi Gateway device. You will get a lot of practical advantages and have 100% visibility of your fences from anywhere and at any time.
Central device FENCE WiFi GATEWAY GW100
Device for remote central control and operation of RF energizers power DUO RF PDX and…
| Power source | 230 V ~ / 12 V |
| Energizer consumption 230 V | 3 W |
| Energizer consumption 12 V | 25 mA - 250 mA |
| Output energy | 3 J |
| Input energy | 4 J |
| Output voltage | 11000 V |
| Output voltage 500 Ω | 5500 V |
| ON/OFF | |
| LED ON/OFF | |
| LED impulse | |
| LED low battery voltage | |
| LED error check | |
| LCD display | |
| fencee Cloud connection | |
| LED indication | |
| Power Save mode | |
| Remote control | |
| Data encoding | |
| Transmission frequency | 869,525 MHz |
| Transmitting power | 22 dBm |
| TEOR. max. CEE | 100 km |
| Low vegetation | 30 km |
| Medium vegetation | 13 km |
| High vegetation | 5 km |
| Earthing 1 m | 3× |
| El. fence nets | 13× |
| Weigth | 2920 g |
| Dimension | 38 × 31 × 21 cm |
Manuals and files for downloading
Manual - fencee battery DUO BD, RF BDXFAQ
- How to use a grounding quality terminal and terminal with reduced output?
- How to choose the right energizer?
- Functional electric fence principles - troubleshooting tips
Protected by utility model
Smart Farm fencee Cloud system is protected in the EU utility model Nº 1870632, Nr. 202018102939, Nr. 31675
