Product´s description Electric fence generator fencee energy DUO RF EDX100
The powerful fencee smart electric fence power supply is specially designed for long (up to 90 km) and vegetated fences where maximum efficiency and reliability must be ensured.
With an output power of up to 10 J, it can provide sufficient voltage even in heavily grassed fences. An integrated microprocessor controls the entire operation and guarantees optimum generator performance.
It is designed for all types of animals, especially wild boar, cattle or forest animals and is also suitable for young animals (calves, foals). If you need a power supply for an electric fence to protect another animal, take a look at our range. Here you will find all generators clearly divided into groups according to animal.

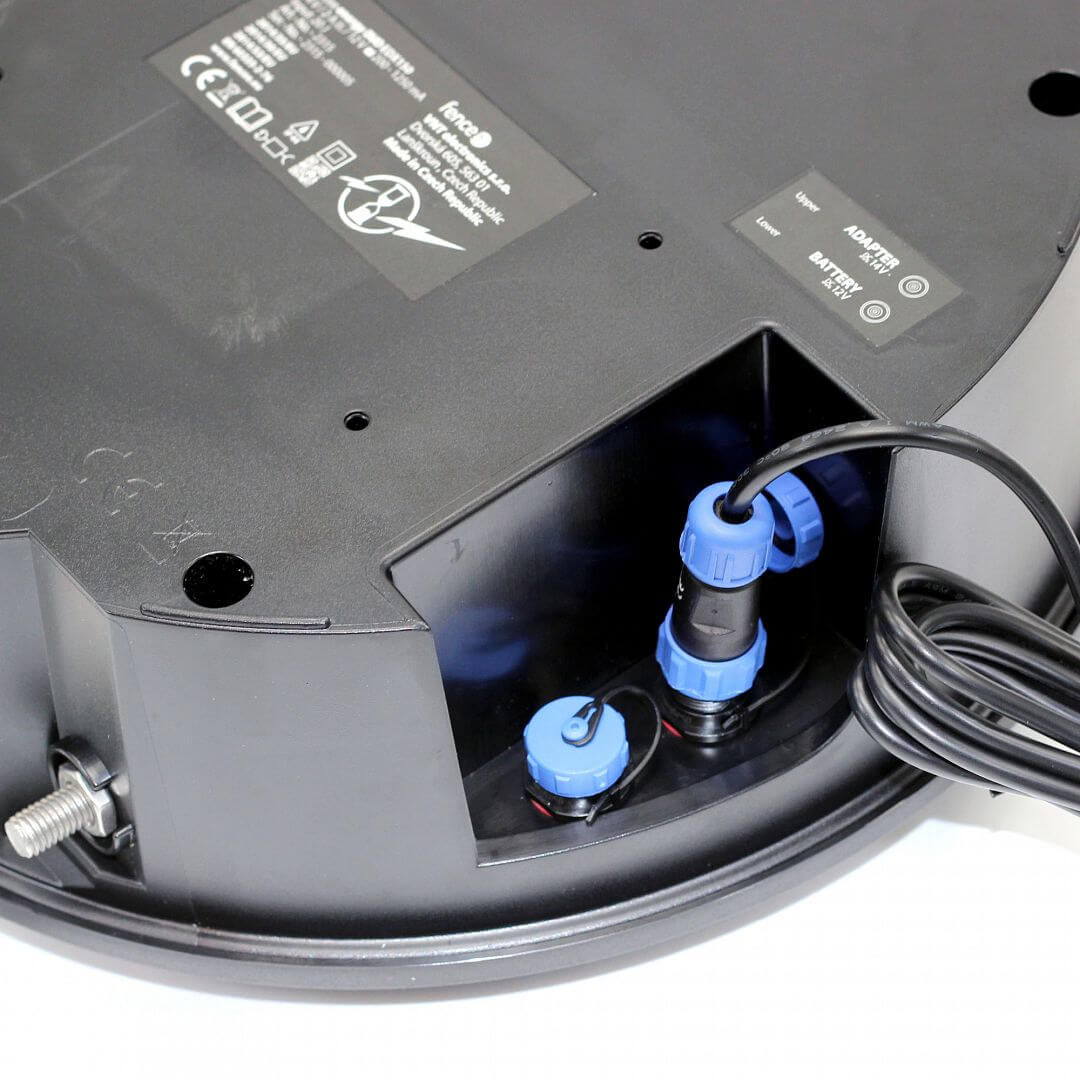

Power can be supplied via an adapter from the mains (230 V) or from anormal battery (12 V), which is mainly used as a backup source in case of power failure. Due to the higher consumption of the generators in this series, long-term operation on battery power is not suitable.

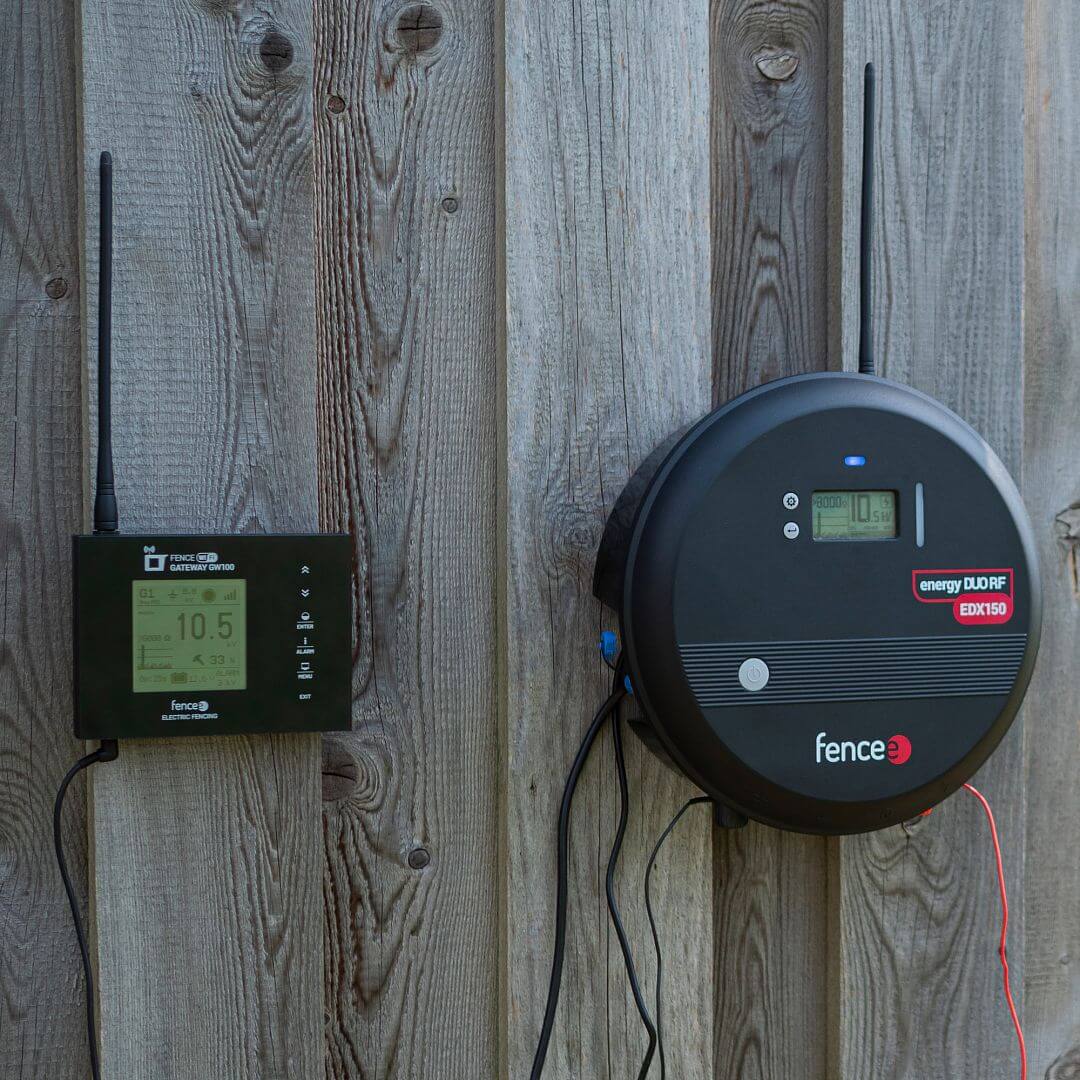

The basic range of radio communication (RF) between the generator and the gateway is up to 10 km in normal terrain and built-up areas. In difficult terrain, e.g. hilly terrain, the range is shorter, while in open areas it can be even longer. To increase the range of signal transmission between the generator and the gateway, an external antenna can be used to increase the communication range up to 30 km.
Check out the article in which we have written some tips on how to install an external antenna correctly and guarantee the most efficient RF signal transmission.

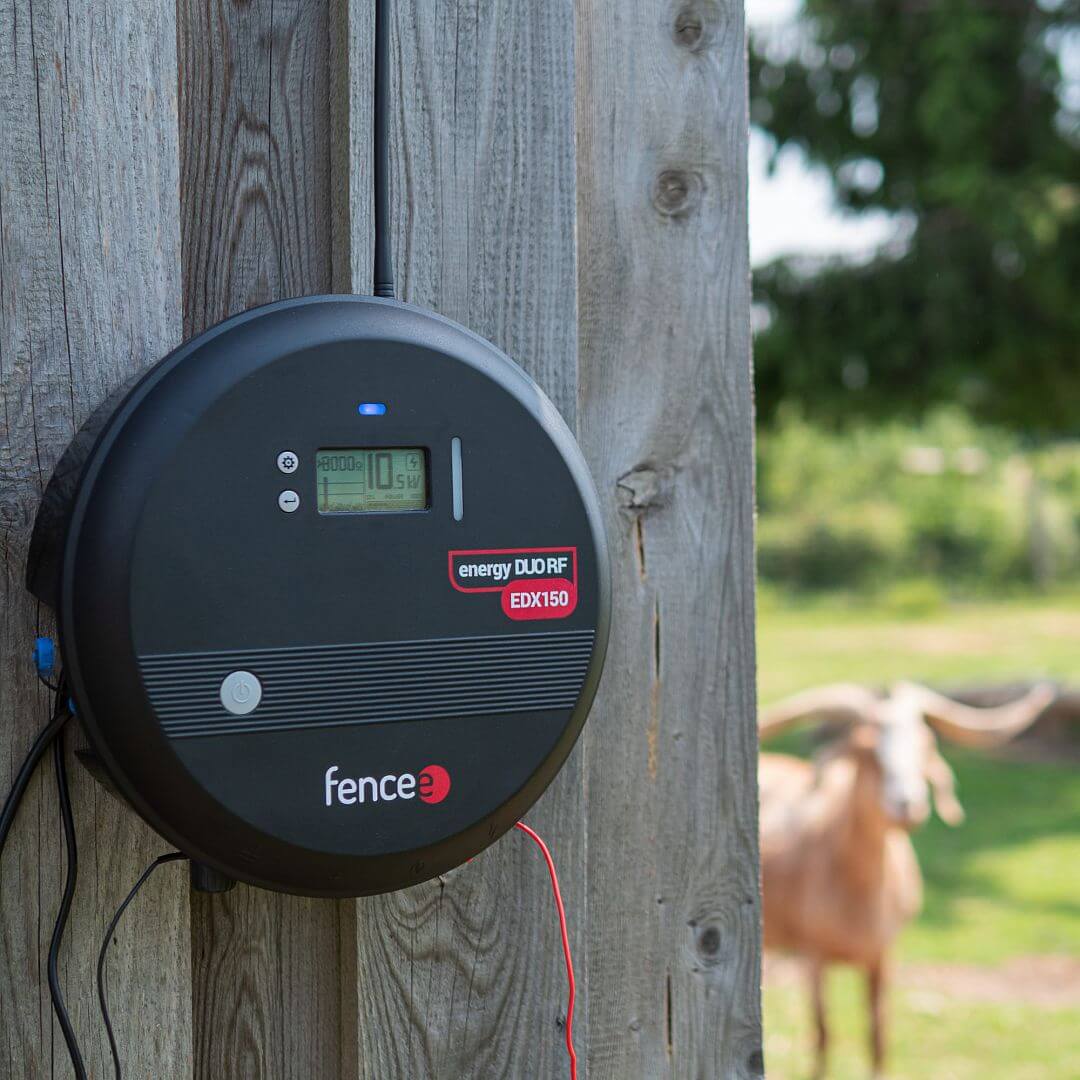

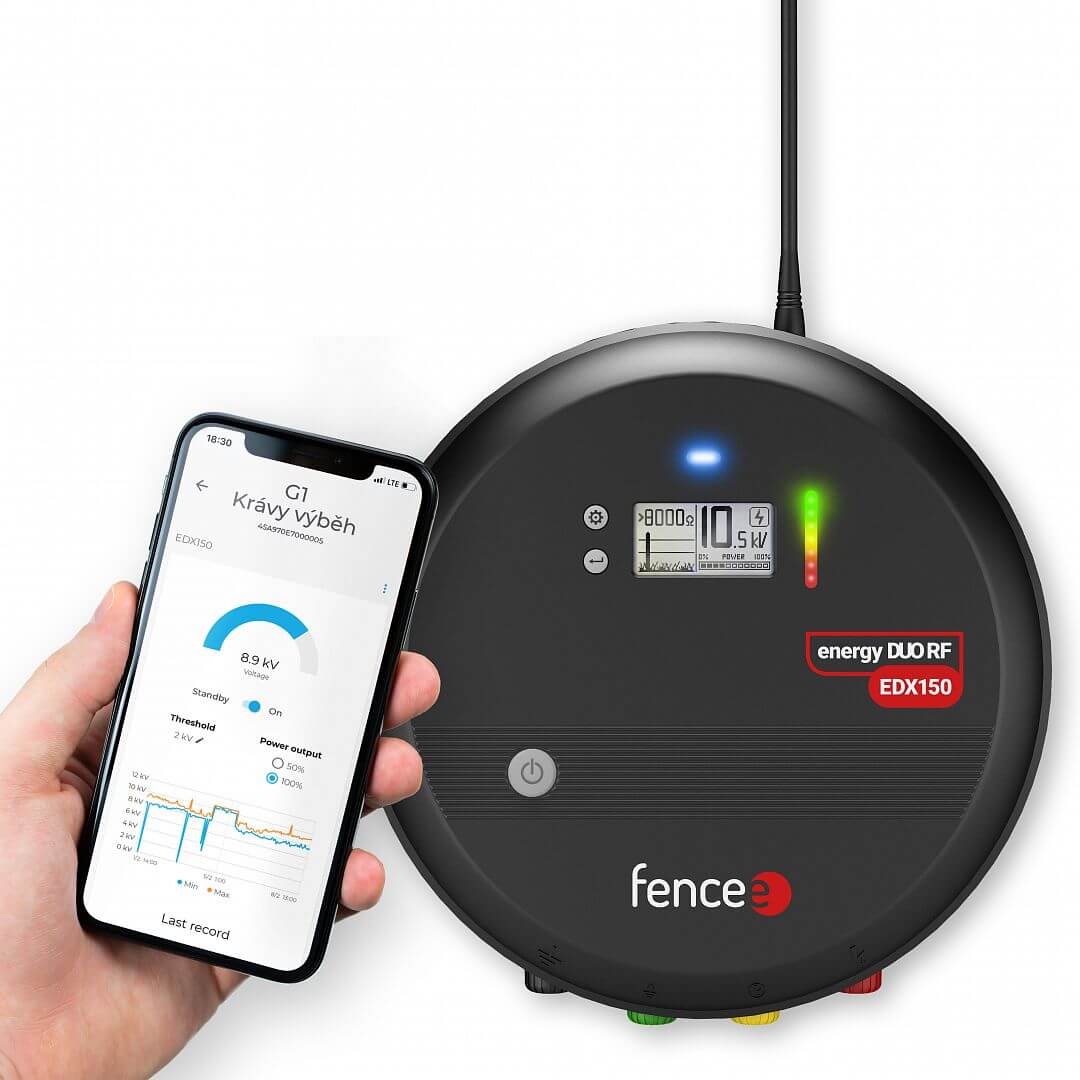

The large LCD display with control buttons clearly informs you of all important values on the pen. LED lights and BARGRAF indicate the operation of the power supply, display the voltage on the pen and also signal any malfunction on the pen. You can reduce the output energy of the generator to 50%, e.g. when you need to save the battery or when using it for other animals. Thanks to the free RF technology, you do not need a SIM card.
At the generator output there is a black ground terminal, a red terminal for connecting a full voltage pen, a yellow terminal for connecting a permanently reduced energy pen anda green terminal for measuring the ground quality.
You can find out how to use the yellow and green clamps of the generator in our advice in the basic installation section.
Generators with an output greater than 5 J meet special safety requirements prescribed by the standard. These include a time delay of 50 s when increasing the output due to an increased load on the fence. Another feature is a warning when a sudden load is placed on the fence, e.g. a fallen branch, a tangled animal or a person. After six pulses, an alarm is triggered - an audible signal sounds, the red LED flashes and the pulse period is slowed to 3 s.

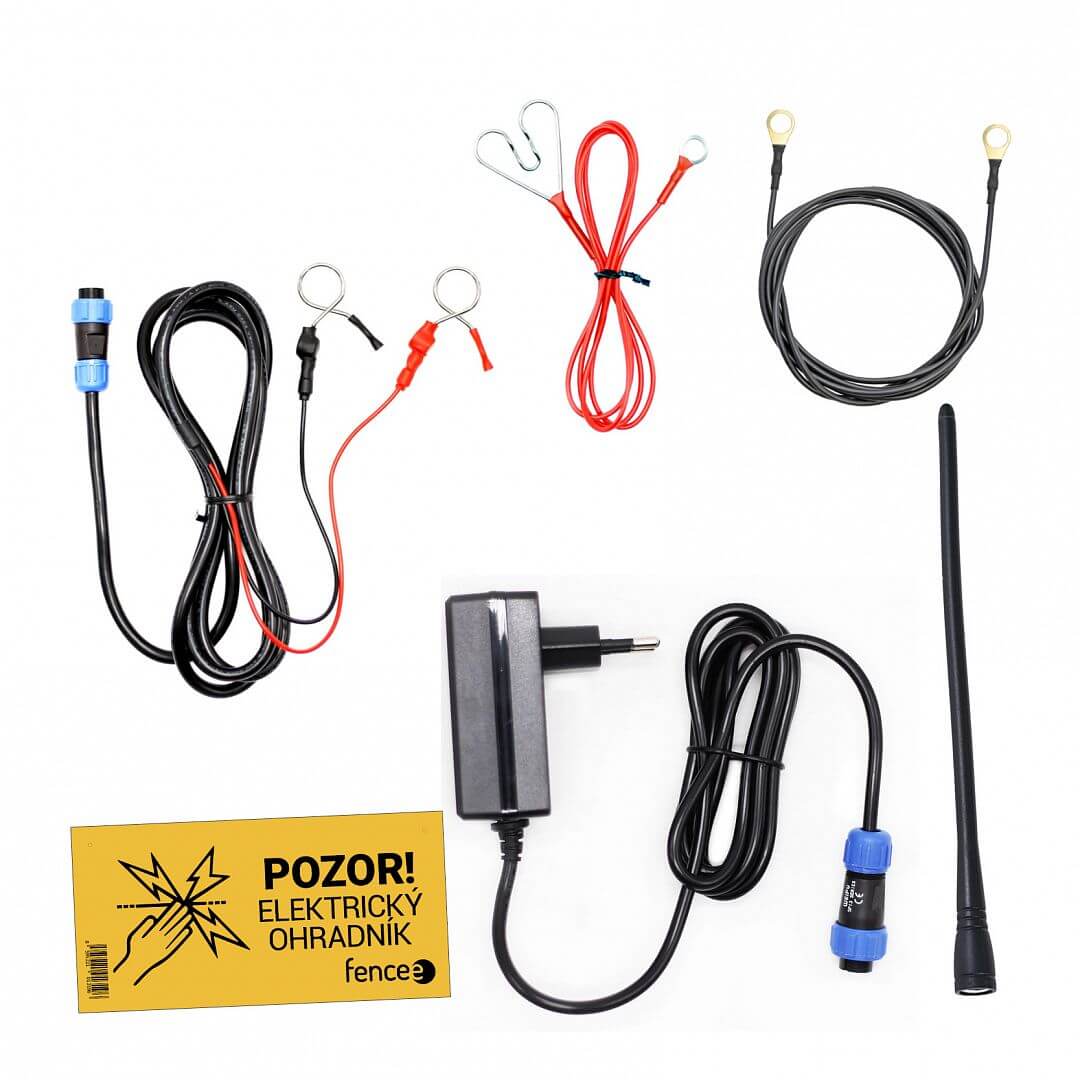

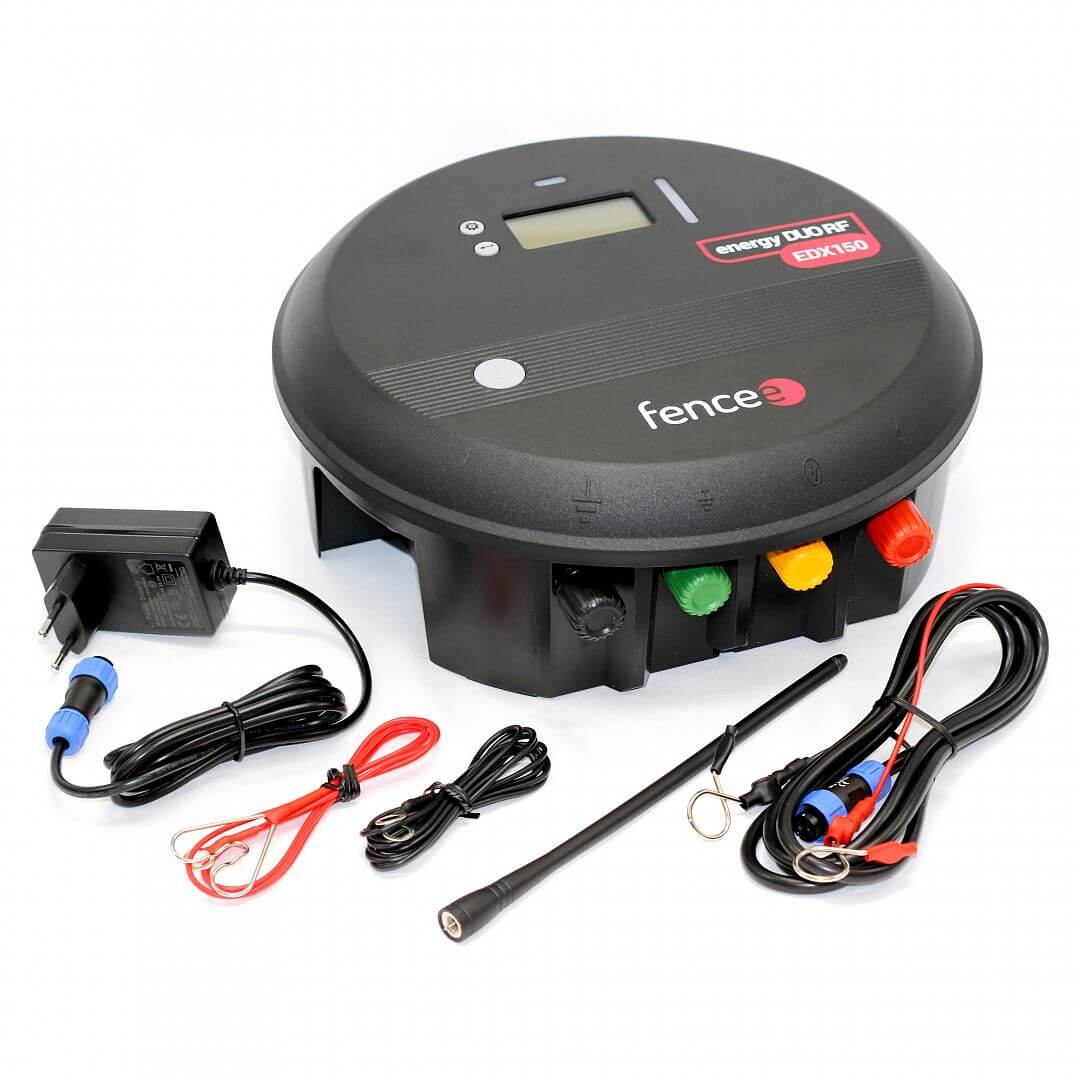

Included:
- fencee generator
- power adapter 14 V / 2 A
- basic RF antenna
- 150 cm ground cable (eye-to-eye)
- connection cable 100 cm (eyelet-heart)
- battery cable for connecting energy RF to the battery
- fencee warning plate
- operating instructions
Together with the power supply for the electric fence, we recommend purchasing a 200 mm DIN rail for easy mounting of the fence.

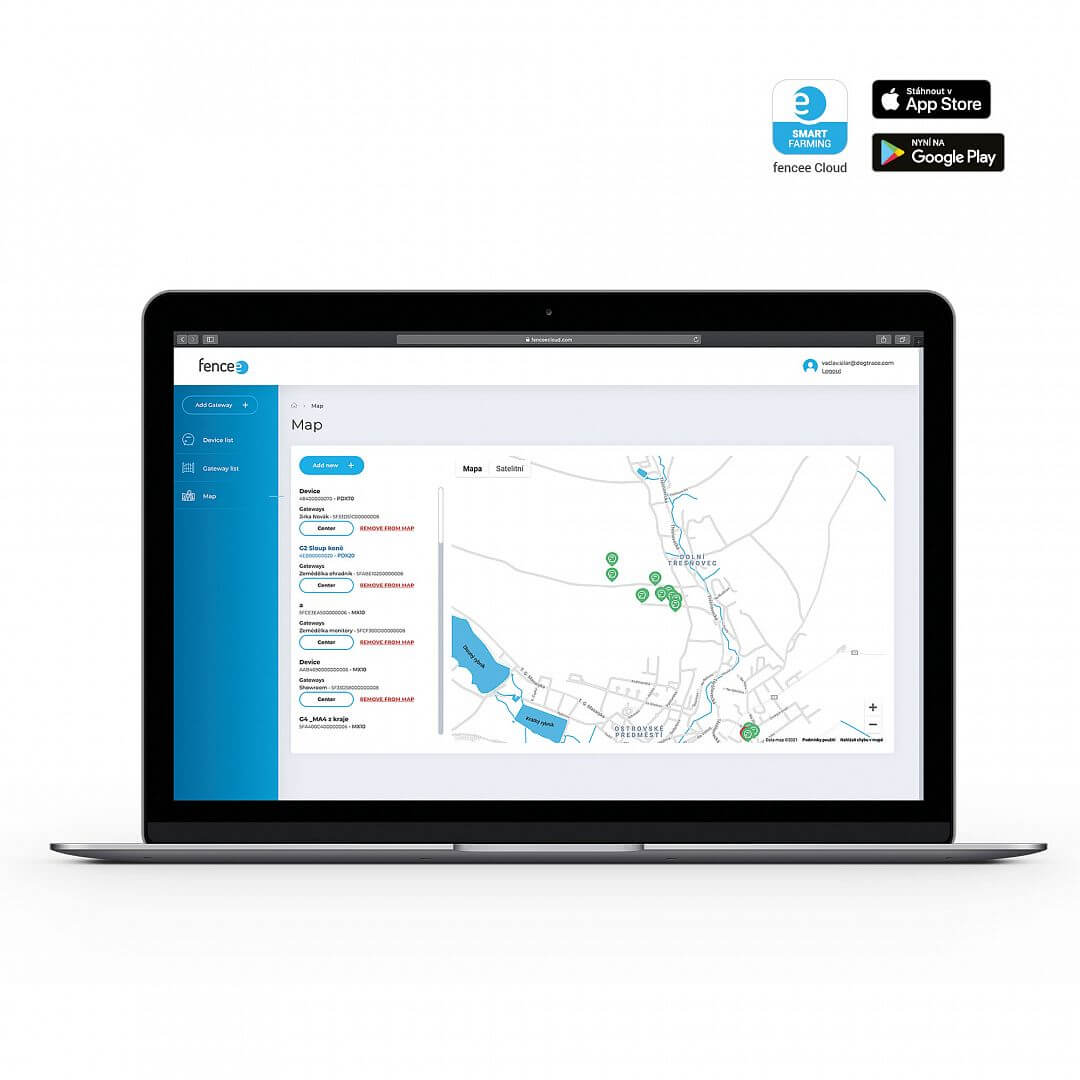

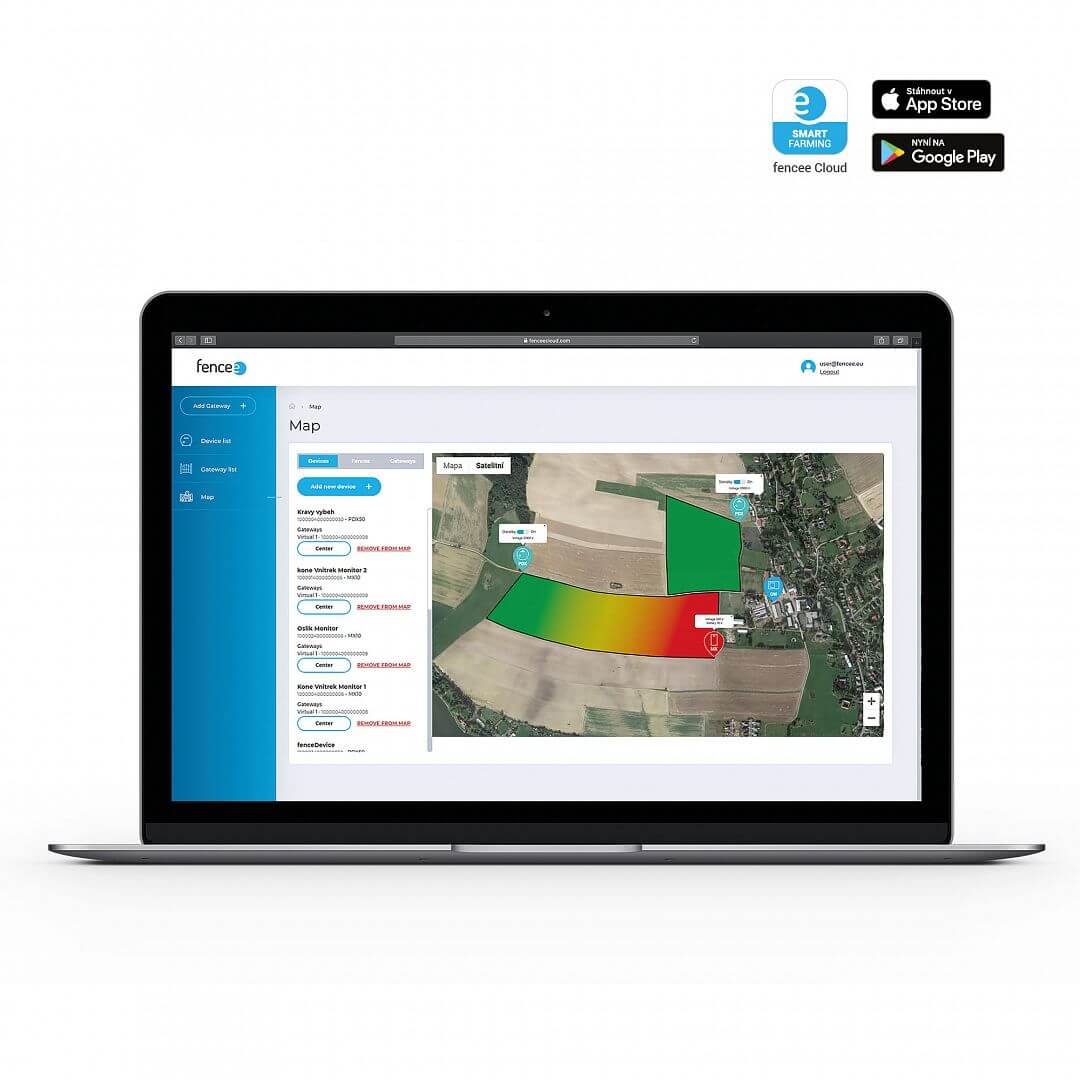

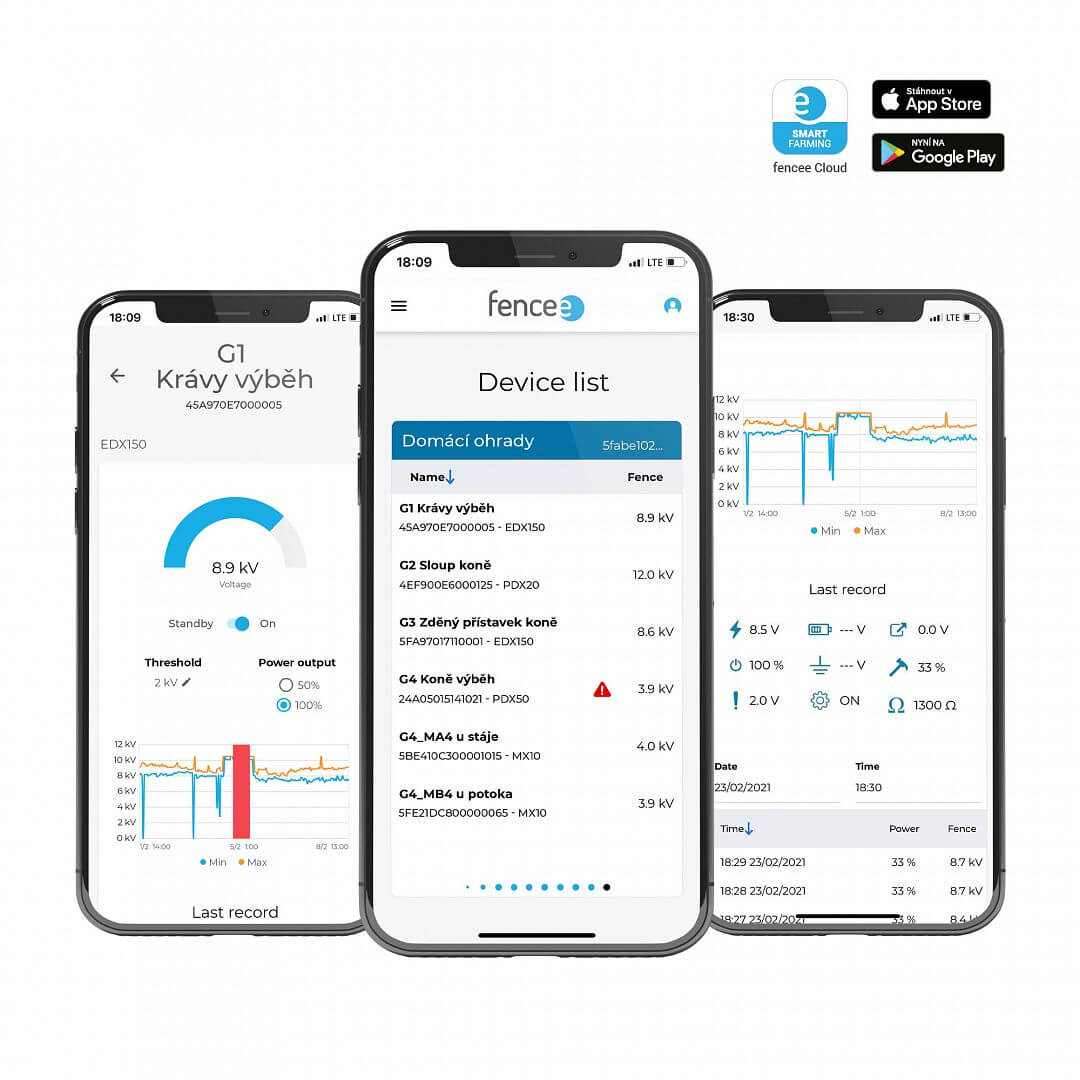

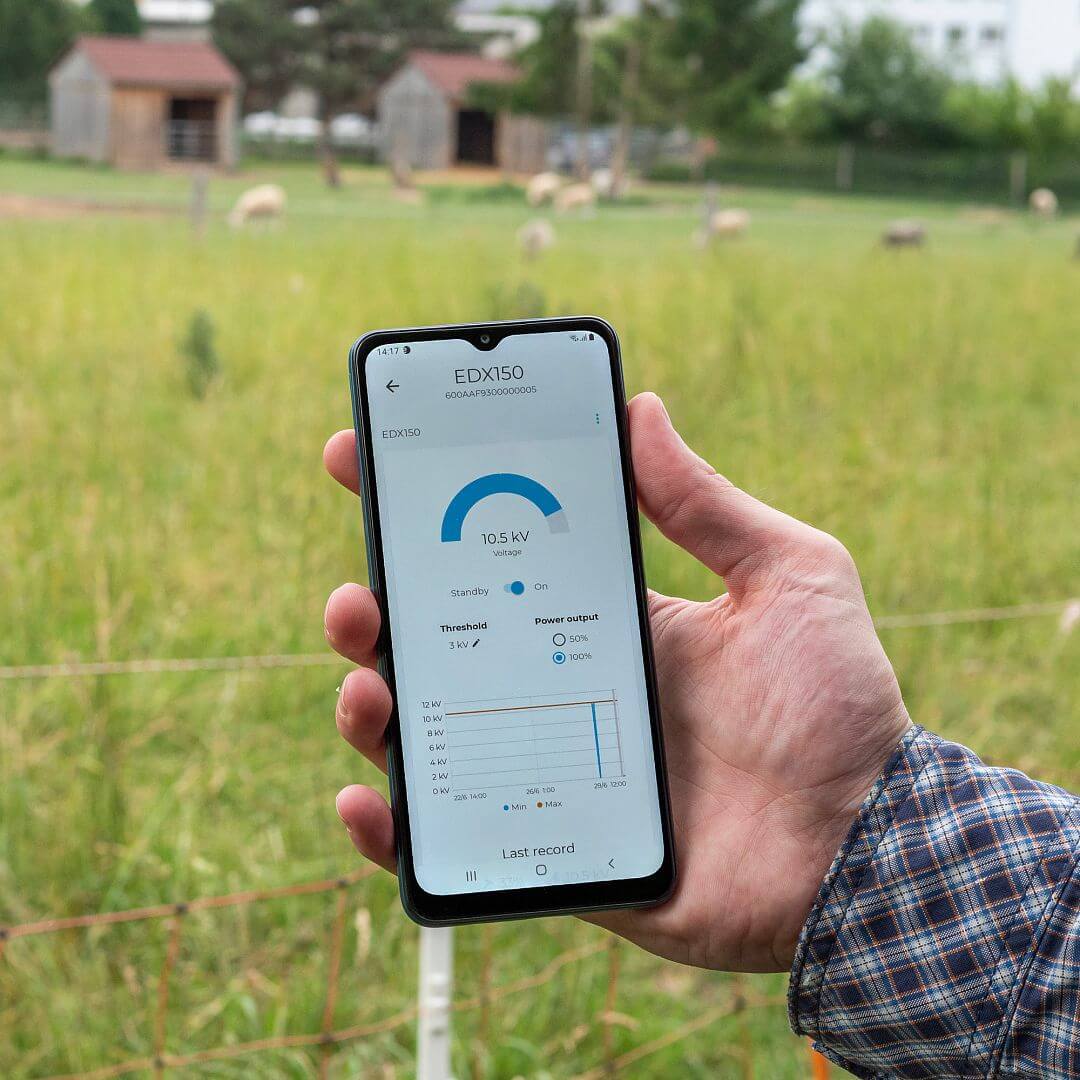

Case Studies Smart Farms fencee Cloud
Take a look at how Smart Farm with fencee Cloud has helped several of our customers, including a zoo, cattle farm, sheep farm or horse ranch.
| Power source | 230 V ~ / 12 |
| Energizer consumption 230 V | 6 - 14 W |
| Energizer consumption 12 V | 200 - 850 mA |
| Output energy | 10 J |
| Input energy | 13 J |
| Output voltage | 10500 V |
| Output voltage 500 Ω | 7500 V |
| ON/OFF | |
| LED ON/OFF | |
| LED impulse | |
| LED low battery voltage | |
| LED lower power 50% | |
| LED error check | |
| Time delay | |
| LED impulse bargraph | |
| Reduced output terminal | |
| Earth measuring terminal | |
| LCD display | |
| fencee Cloud connection | |

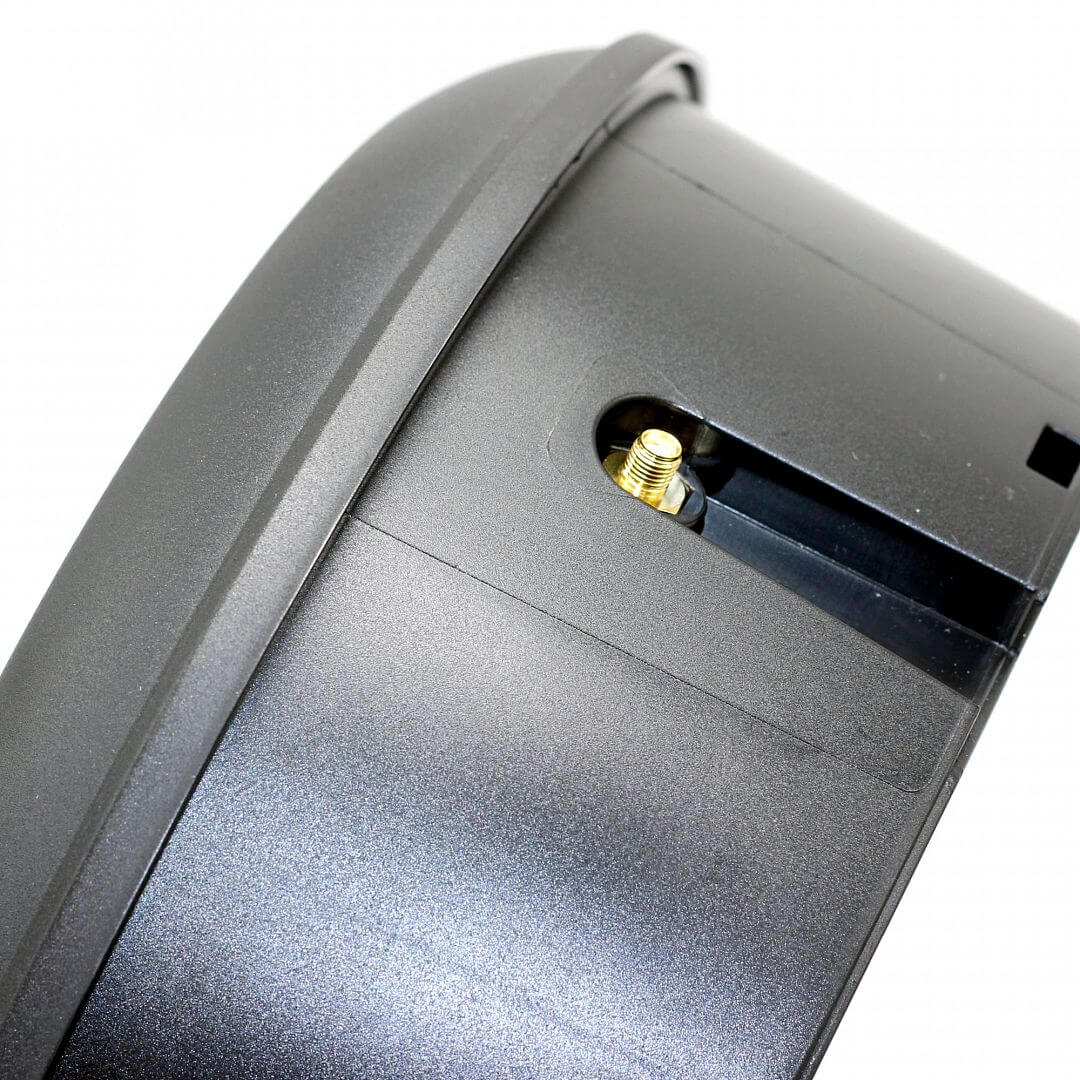

| External antenna SMA connector | |
| TEOR. max. CEE | 300 km |
| Low vegetation | 90 km |
| Medium vegetation | 22 km |
| High vegetation | 10 km |
| Earthing 1 m | 5x |
| El. fence nets | 27x |
| Diameter | 290 mm |
| Depth | 108 mm |
| Weigth | 3296 g |
