Product´s description Energizer fencee energy DUO RF EDX80 with remote controller
The powerful fencee smart electric fence power supply is specially designed for long (up to 80 km) and vegetated fences where maximum efficiency and reliability must be ensured. With an output power of 8 J, it can provide sufficient voltage even in heavily grassed fences. An integrated microprocessor controls the entire operation and guarantees optimum generator performance.
The universal reliable power supply for your fence
The fencer is designed for all types of animals, especially cattle, horses, sheep, wild boar or as protection against forest animals and wolves. Thanks to the reduced voltage at the yellow terminal, the fencer is also suitable for baby calves and foals. For other animals, select the sources for the electric fencer sorted by animal.
The generator offers the possibility of combined power supply using a mains adapter (230 V) or a standard battery (12 V), which is mainly used as a backup power supply in case of power failure.
BARGRAF, LEDs and LCD with control buttons
The large LCD display with control buttons clearly informs about all important values on the pen. LEDs and BARGRAF indicate the operation of the power supply, display the voltage on the pen and also signal a possible malfunction on the pen. You can reduce the output energy of the generator to 50%, e.g. when you need to save the battery or when using it for other animals. Thanks to the free RF technology, you do not need a SIM card.
Wireless communication at NO CHARGE
The basic range of radio frequency (RF)communication between the generator and the controller is up to 10 km in normal terrain and built-up areas. In difficult terrain, e.g. hilly terrain, the range is shorter, whereas in open areas it can be even longer. To increase the range of signal transmission , an external antenna can be used to increase the communication range up to 30 km. Take a look at the article in which we have written some advice on how to install an external antenna correctly and thus guarantee the most efficient RF signal transmission.
Owner Mr. Eman Hanyk
Read full article
If you are interested in controlling and monitoring your electric fence with your mobile phone, get the FENCE WiFi GATEWAY GW100 central device to control and remotely monitor your fence from anywhere, anytime.
4 terminals for maximum flexibility
At the generator output there is a black ground terminal, a red terminal for connecting a full voltage fence, a yellow terminal for connecting a permanently reduced energy fence anda green terminal for measuring the ground quality. You can find out how to use the yellow and green clamps of the generator in our advice in the basic installation section.
Package contents:
- fencee generator + remote control
- power adapter 14 V / 2 A
- basic RF antenna
- 150 cm ground cable (eye-to-eye)
- connection cable 100 cm (eyelet-heart)
- battery cable
- fencee warning plate
- operating instructions

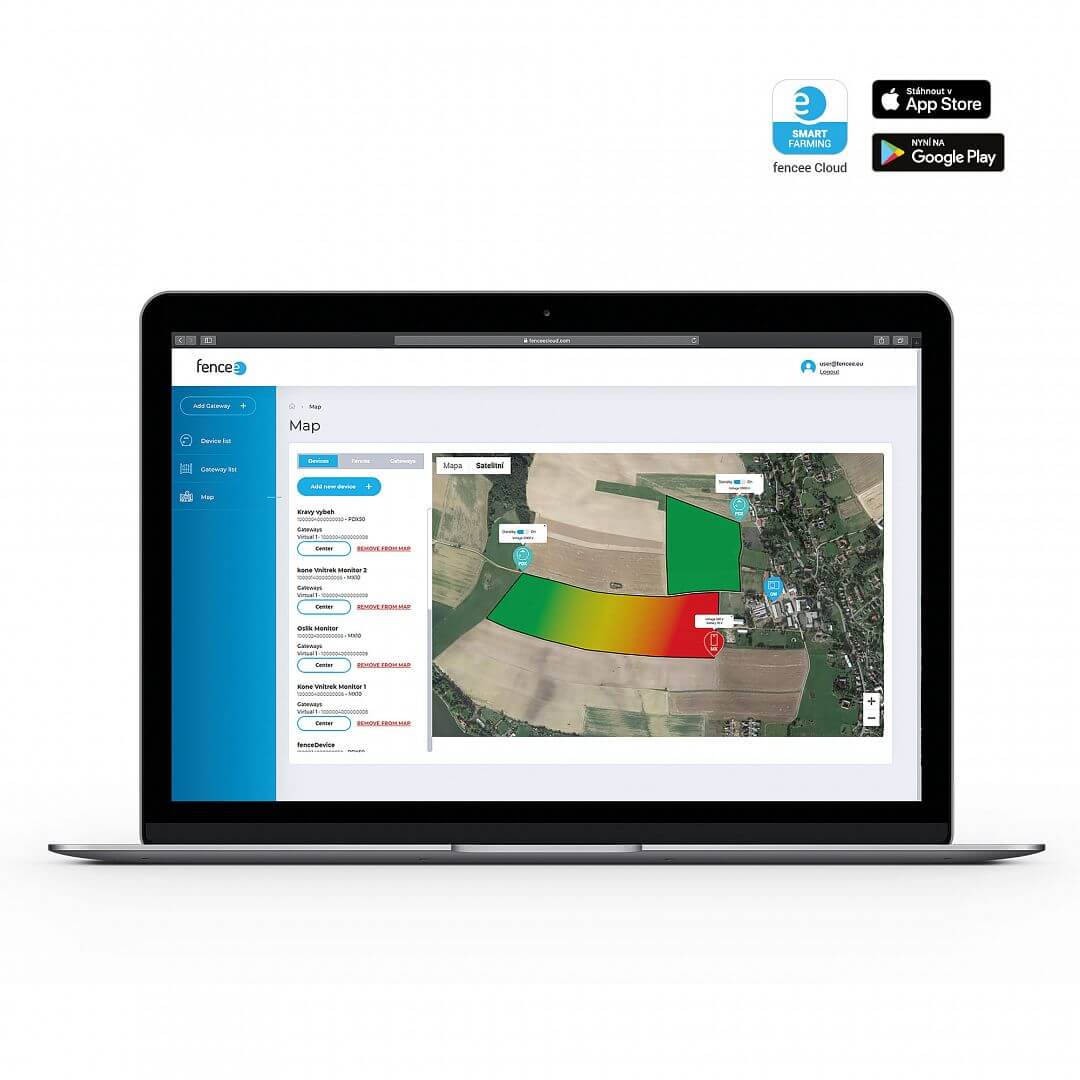

Case Studies Smart Farm fencee Cloud
See how Smart Farm with fencee Cloud helps several of our customers, including a zoo, a cattle farm, a sheep farm or a horse ranch.
| Power source | 230 V ~ / 12 V |
| Energizer consumption 230 V | 6 - 11 W |
| Energizer consumption 12 V | 200 - 750 mA |
| Output energy | 8 J |
| Input energy | 11 J |
| Output voltage | 10500 V |
| Output voltage 500 Ω | 7500 V |
| ON/OFF | |
| LED ON/OFF | |
| LED impulse | |
| LED low battery voltage | |
| LED lower power 50% | |
| LED error check | |
| Time delay | |
| LED impulse bargraph | |
| Reduced output terminal | |
| Earth measuring terminal | |
| LCD display | |
| fencee Cloud connection | |
| External antenna SMA connector | |
| Data encoding | |
| Transmission frequency | 869,525 MHz |
| Transmitting power | +22 dBm |
| Base antenna range | 10 km |
| TEOR. max. CEE | 230 km |
| Range with external antenna | 30 km |
| Low vegetation | 80 km |
| Medium vegetation | 17 km |
| High vegetation | 8 km |
| Earthing 1 m | 4× |
| El. fence nets | 22× |
| Diameter | 290 mm |
| Depth | 108 mm |
| Weigth | 3192 g |
