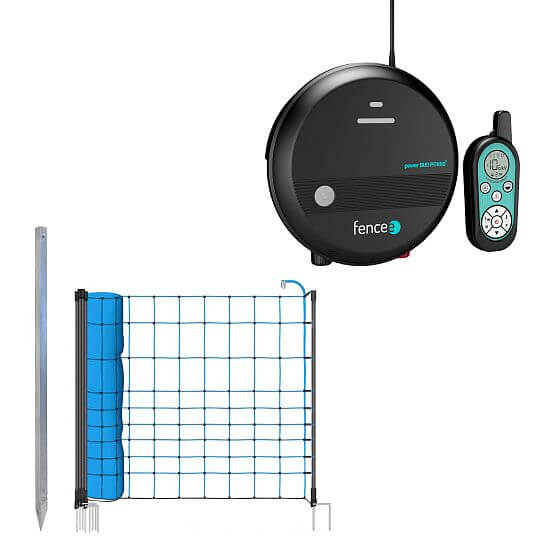

Product´s description Electric fence kit with 120 cm blue anti-wolf net + DUO RF energizer 5 J with remote controller
Complete set of electric fence with blue net for sheep and lamb farmers. Includes everything you need to secure animal enclosures against attack by wolves, lynx or stray dogs. Prevent losses and protect animals from wolf attack with this complete kit with powerful power supply and electric wolf net.
Blue electric wolf net 120 cm
The electric net has 14 reinforced bars with two spikes for better stability. The standard length of the net is 50 m, the height of the net is 120 cm to prevent jumping. Reinforced top wire with 6 × 0.20 mm stainless steel conductors with increased conductivity. Supplement the fence net with signal tape - trap.
Smart RF energizer 5 J
The kit includes the fencee power DUO RF PDX50 RF energizer with remote control and a power output of 5 J. The generator's power allows several mains to be connected at once. Combined generators can be powered via an adapter from 230 V mains or from a standard 12 V battery. The modern high quality and waterproof construction of the device with microprocessor technology inside, offers a reliable solution when building electric fences against wolf attack.
Control of the electric fence by remote control or telephone
The remote control of works at a distance of 10 km in normal terrain and built-up areas. In difficult conditions such as hilly terrain, dense overgrown forest or draws, the control range is shortened. In the open air, on the other hand, the range may be longer. To increase the range of the remote control, we recommend installing an external RF antenna, which increases the communication range to a distance of up to 30 km. See the article on installing and operating an external antenna.
The fence can also be controlled and monitored by mobile phone via the fencee Cloud app. The app is free to download and together with the central WiFi Gateway allows you to control and monitor the fence anytime, anywhere.
Package Contents:
- fencee power DUO RF PDX50 energizer with remote control
- 1× blue wolf net, height 120 cm, length 50 m, 14 bars
- 1× ground rod 100 cm
Included in the energizer package:
- 1× warning sign
- 1× generator remote control
- 1× power adapter fencee DUO 14 V 1,5 m
- 1× ground cable 150 cm (eyelet to eyelet)
- 1× connection cable 100 cm (eyelet-heart)
- 1× fencee DUO battery cable 1.7 m
- 1× operating instructions
Energizer consumption 230 V | 9 W |
Energizer consumption 12 V | 100 - 440 mA |
Output energy | 5 J |
Output voltage | 11000 V |
Output voltage 500 Ω | 6600 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED lower power 50% | |
LED error check | |
LED impulse bargraph | |
External antenna SMA connector | |
Remote control | |
Data encoding | |
Controller batteries | 1 × CR2 |
Transmitting power | +22 dBm |
Base antenna range | 10 km |
TEOR. max. CEE | 140 km |
Range with external antenna | 30 km |
Transmission frequency | 869,525 MHz |
Low vegetation | 40 km |
Medium vegetation | 10 km |
High vegetation | 4 km |
Earthing 1 m | 3 × |
El. fence nets | 8 × |
Diameter | 210 mm |
Depth | 66 mm |
Weigth | 1618 g |
Manuals and files for downloading
Manual fencee power DUO RF PDXFAQ
- How to choose the right energizer?
- How to use a grounding quality terminal and terminal with reduced output?
- Troubleshooting
