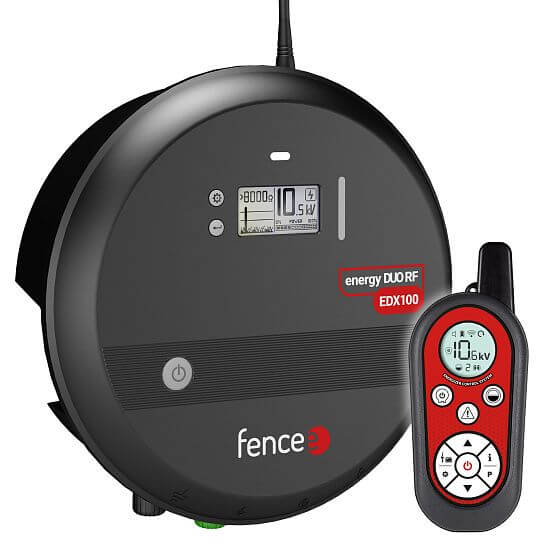

Product´s description Energizer fencee energy DUO RF EDX100 with remote controller

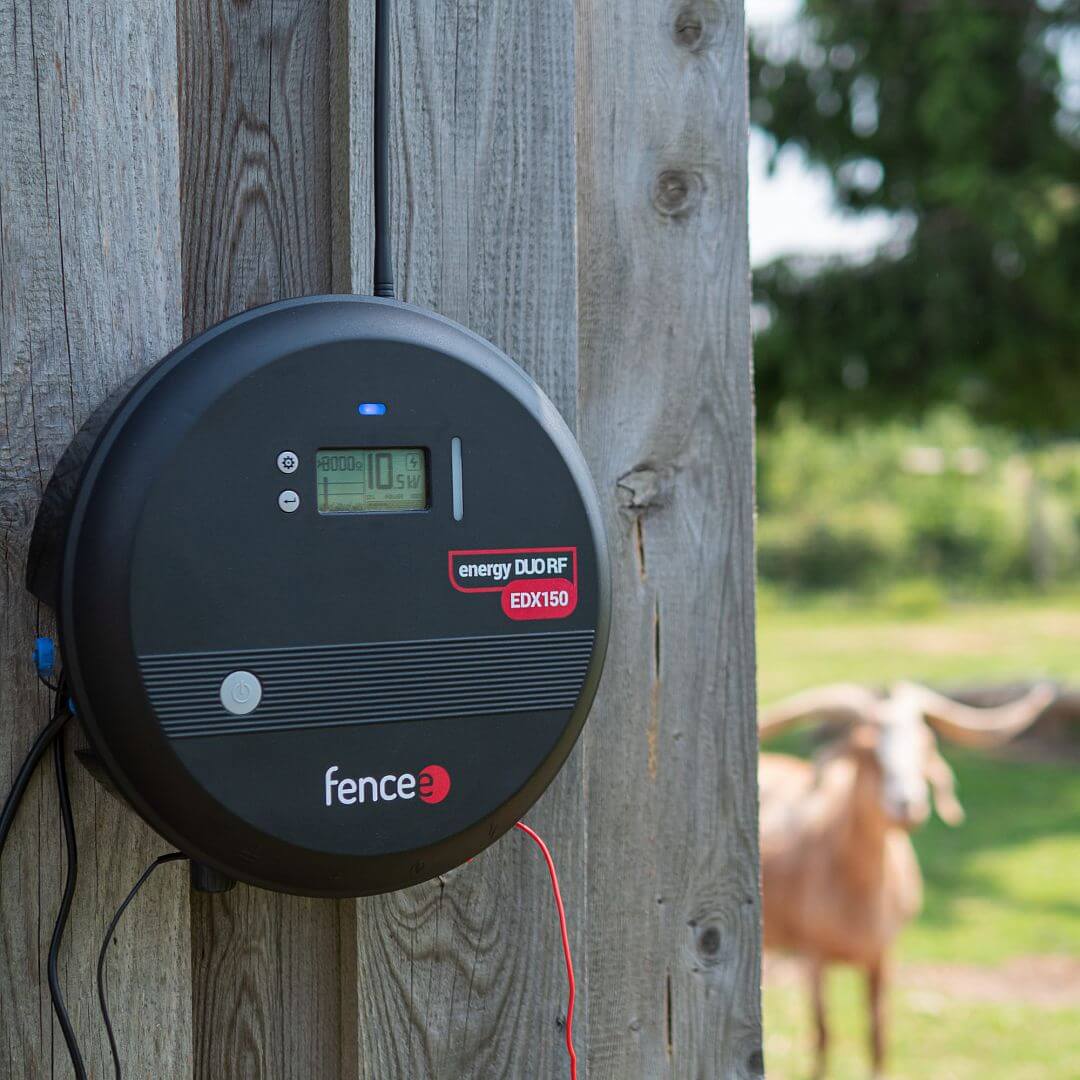

The powerful smart fencee electric fence power supply is suitable for long (up to 90 km) and overgrown fences, where maximum efficiency and reliability must be ensured. With an output power of 10 J, it ensures adequate voltage even in heavily overgrown fences. An integrated microprocessor controls the entire operation and guarantees optimal generator performance.
A versatile and reliable generator for your fence
The fencer is designed for all types of animals, especially for cattle, horses, sheep, wild boar or as protection against forest animals and wolves. Thanks to the reduced voltage at the yellow terminal, the fencer is also suitable for baby calves and foals. If you are looking for a fencer for other animals, choose from the sources for the electric fencer according to the animal.

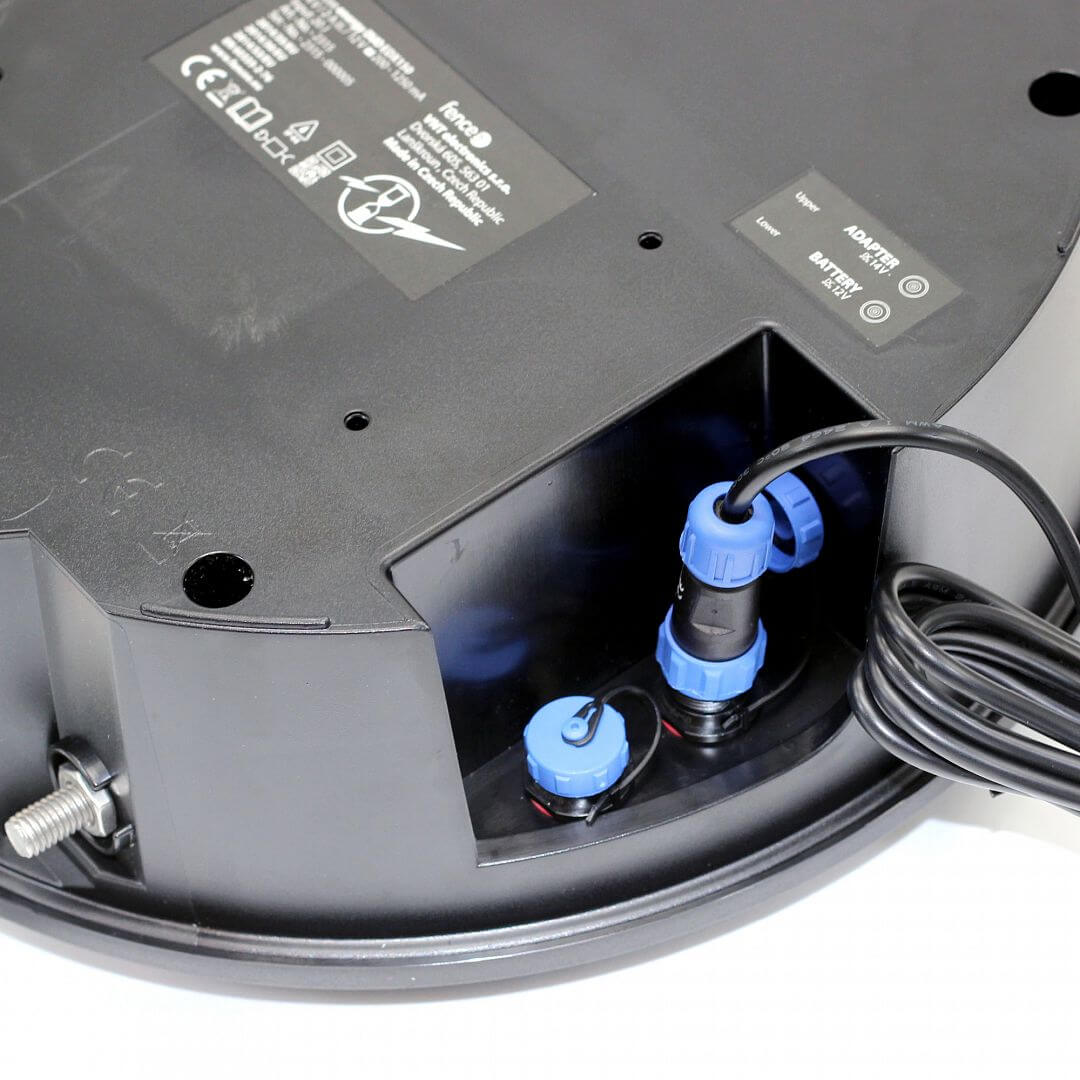

The generator offers the possibility of combined power supply using a mains adapter (230 V) or a regular battery (12 V), which is mainly used as a backup source in case of power failure.
BARGRAF, LEDs and LCD with control buttons
The large LCD display with control buttons clearly informs about all important values on the pen. LEDs and BARGRAF indicate the operation of the power supply, display the voltage on the pen and also signal a possible malfunction on the pen. You can reduce the output energy of the generator to 50%, e.g. when you need to save the battery or when using it for other animals. Thanks to the free RF technology, you do not need a SIM card.
Wireless communication at NO CHARGE

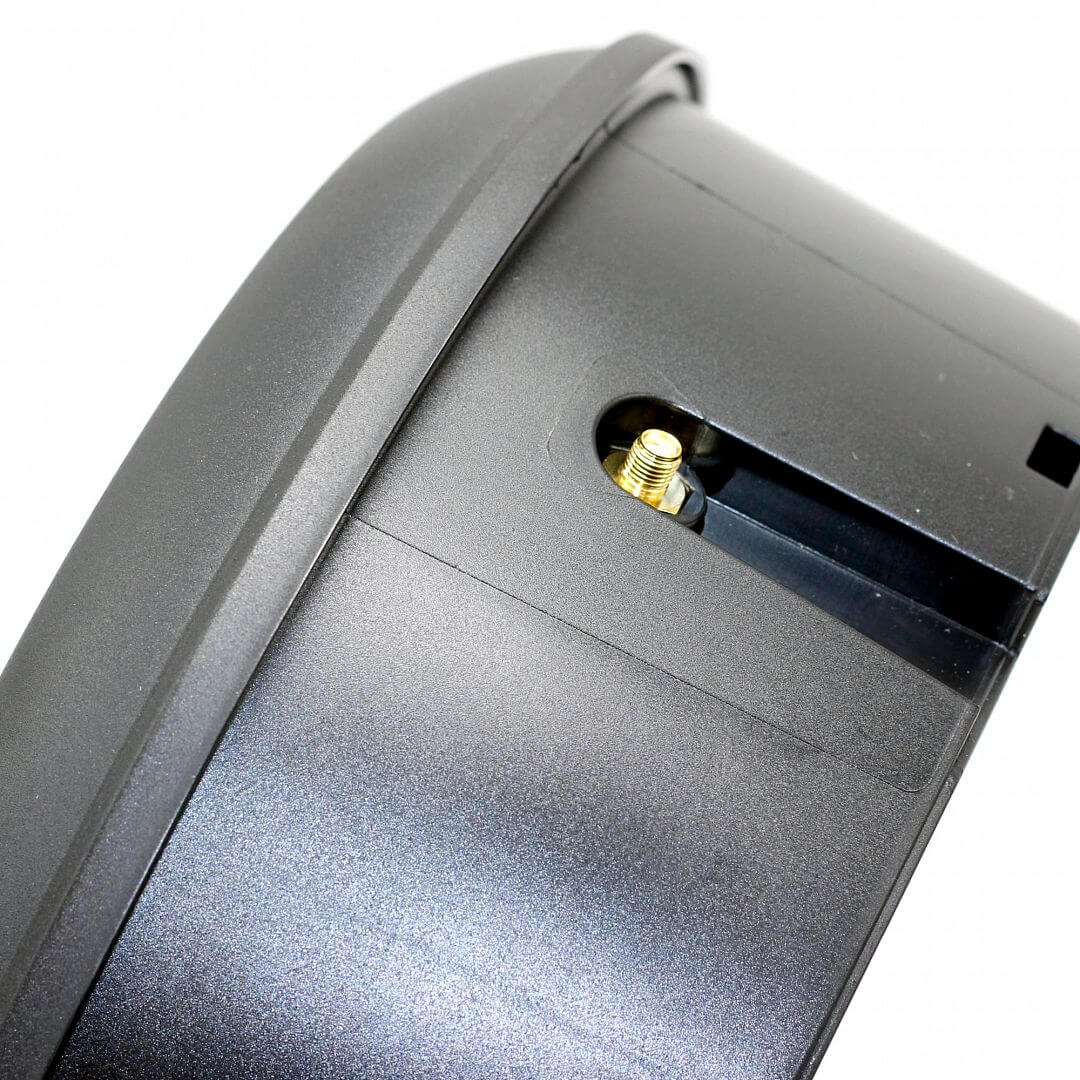

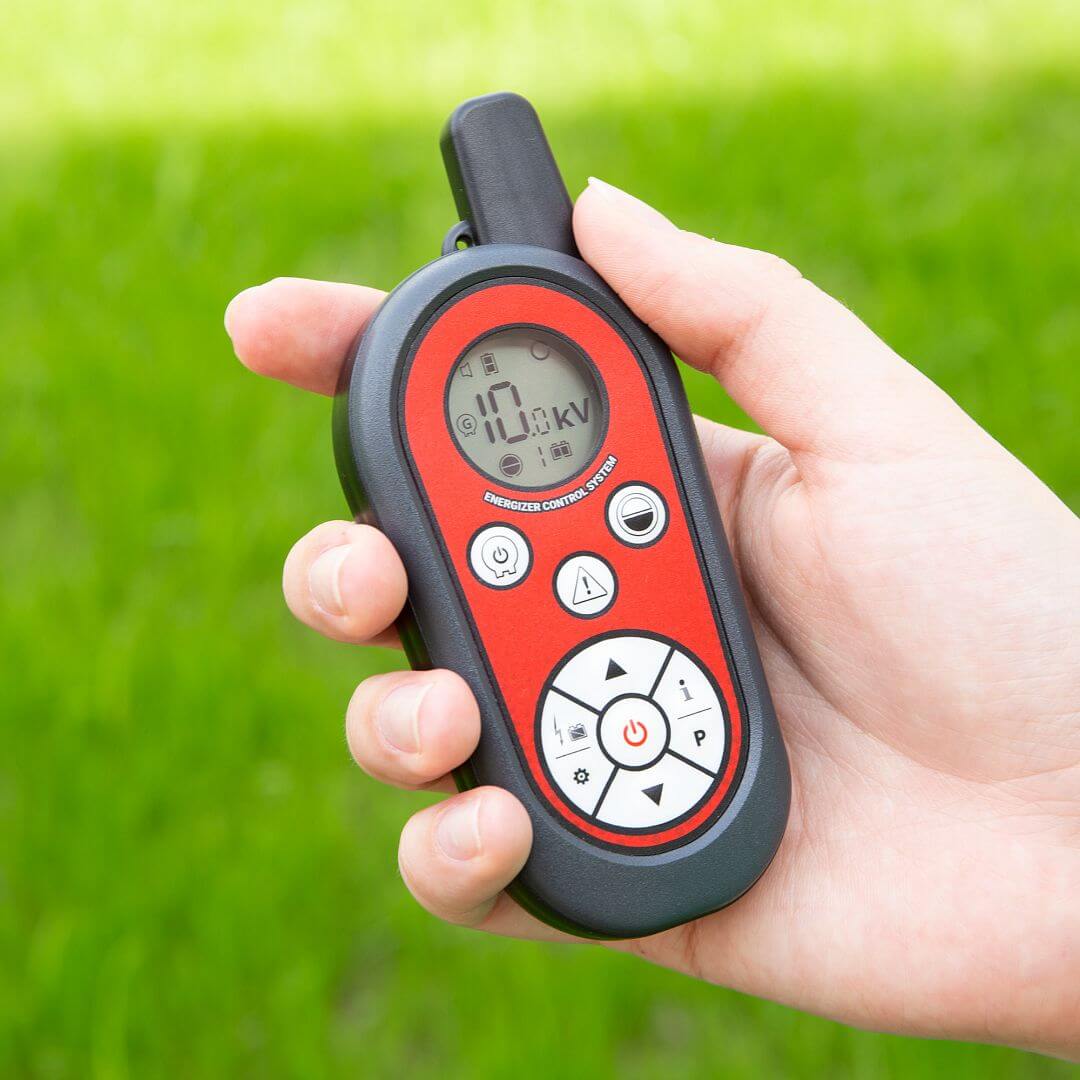

The basic range of radio frequency (RF)communication between the generator and the controller is up to 10 km in normal terrain and built-up areas. In difficult terrain, e.g. hilly terrain, the range is shorter, while in open areas it can be longer. To increase the range of signal transmission, an external antenna can be used to increase the communication range up to 30 km. Take a look at the article in which we have written some advice on how to install an external antenna correctly and thus guarantee the most efficient RF signal transmission.
Owner Mr. Eman Hanyk
Read full article

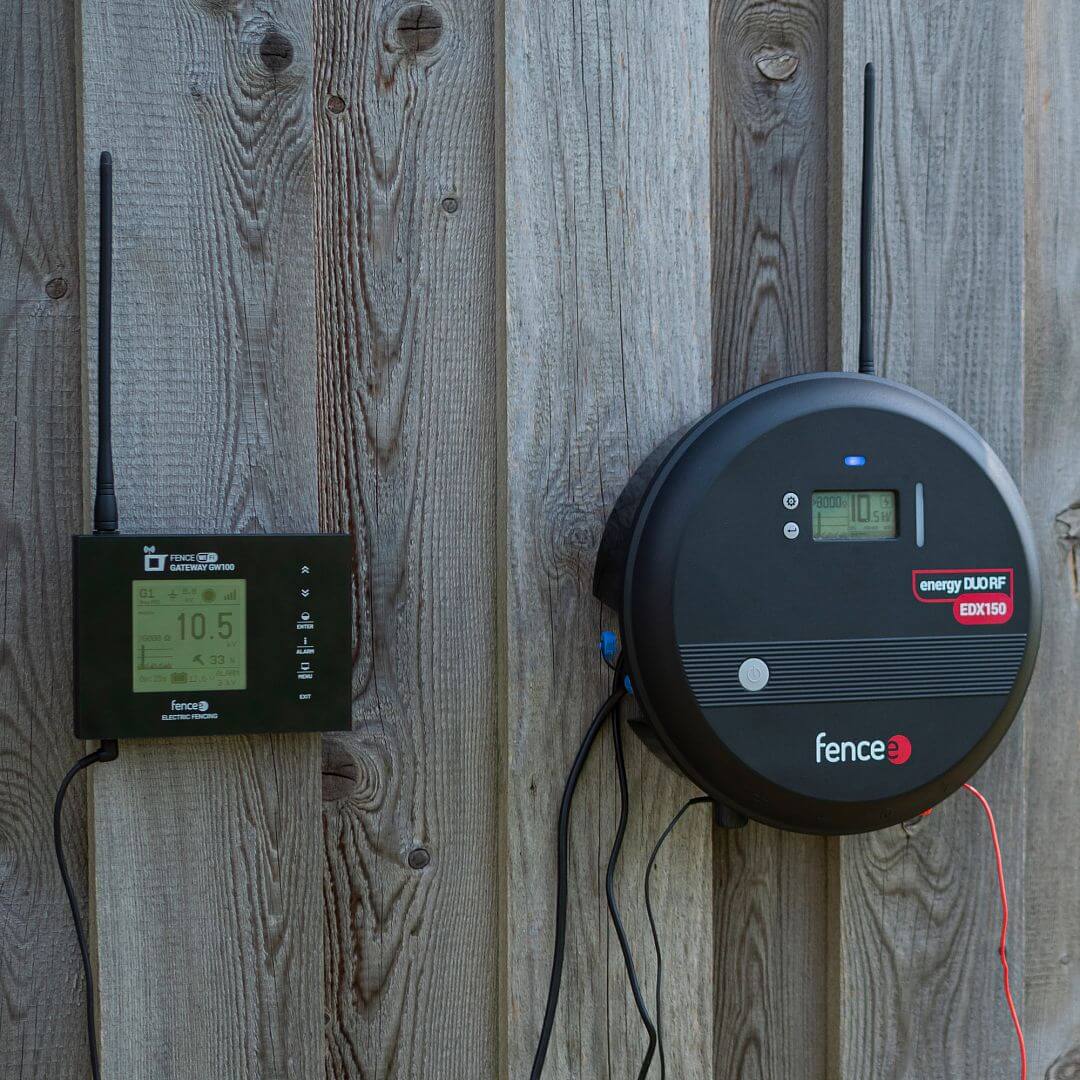

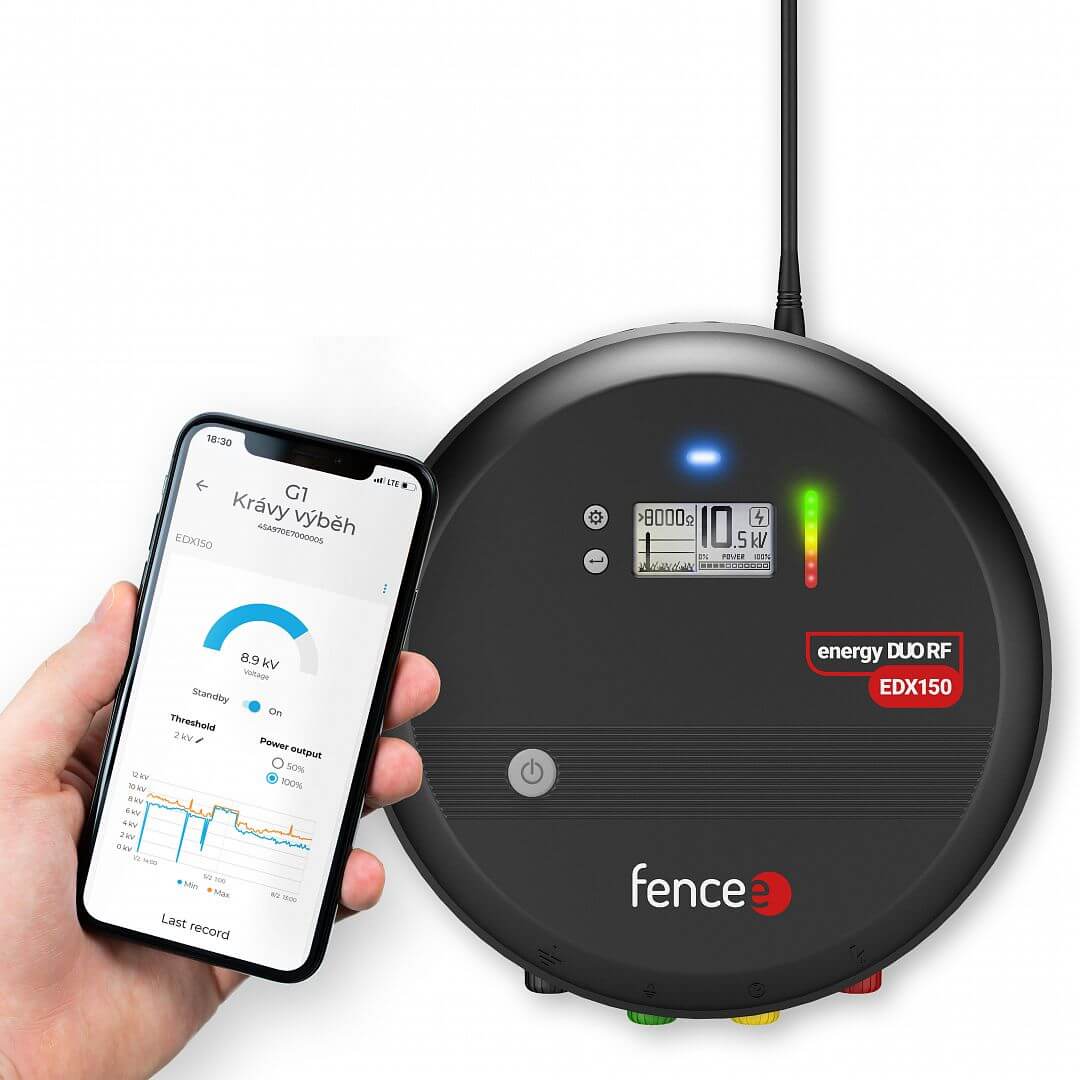

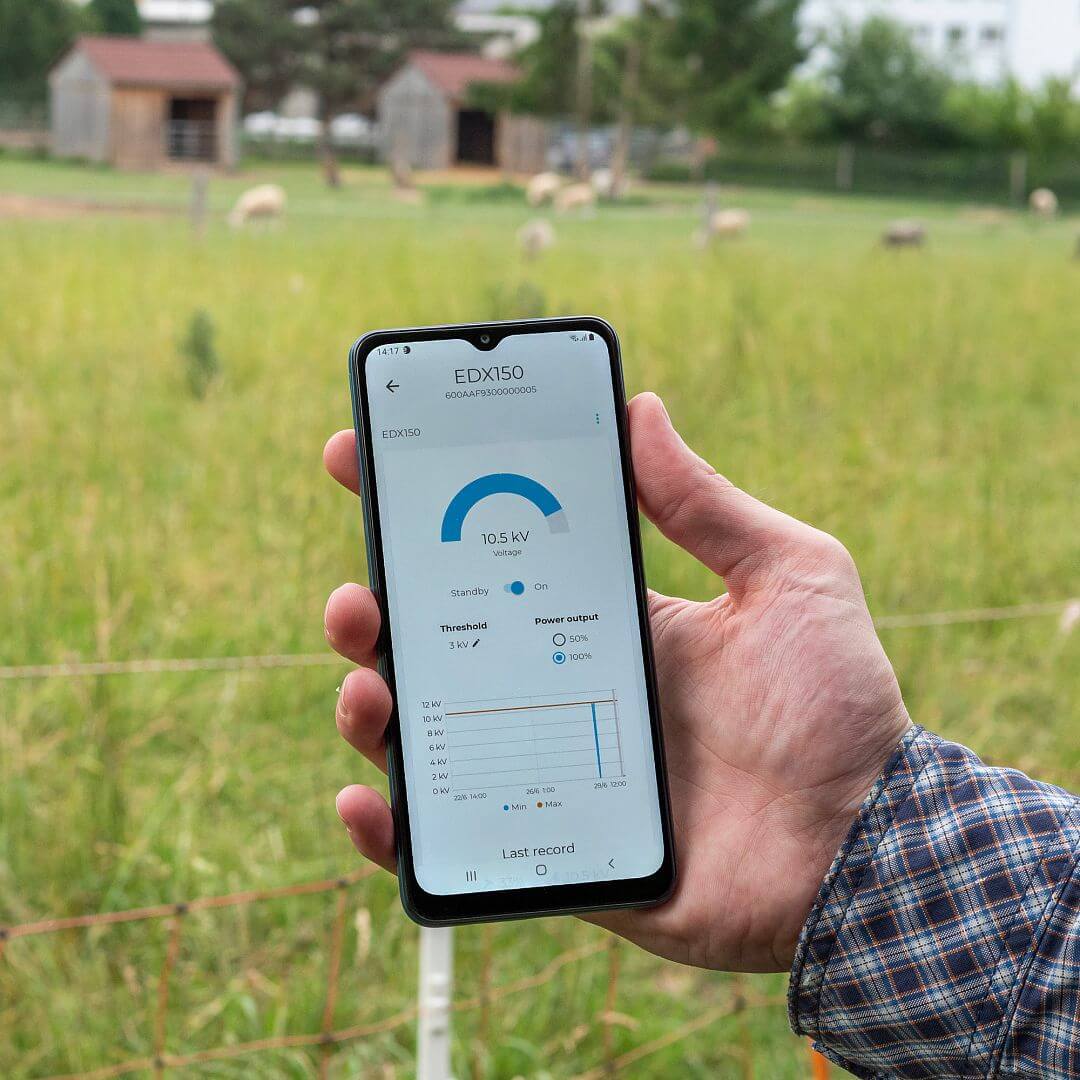

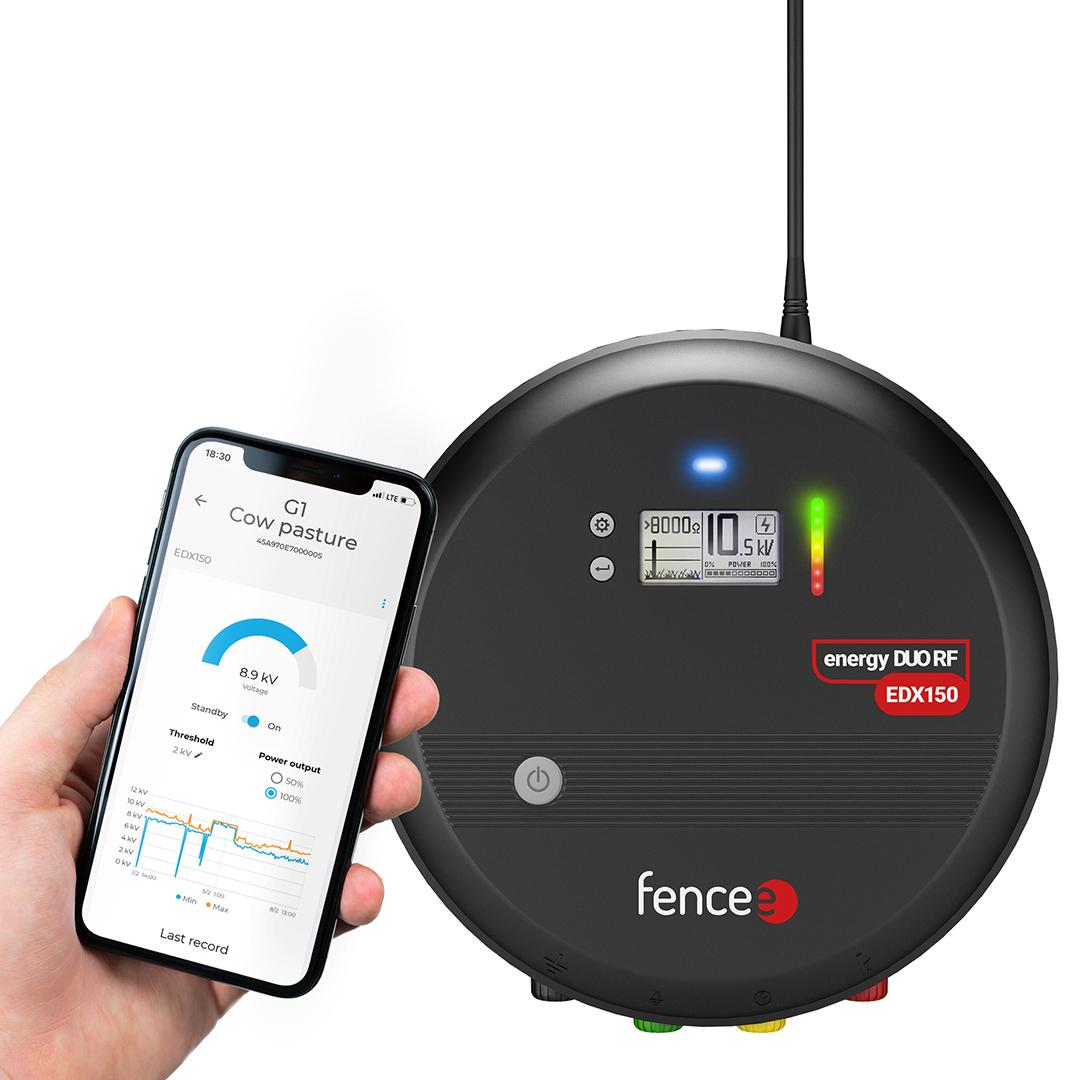

If you are interested in controlling and monitoring your electric fence with your mobile phone, get the FENCE WiFi GATEWAY GW100 central device to control and remotely monitor your fence from anywhere, anytime.
4 outputs for maximum flexibility
At the generator output there is a black ground terminal, a red terminal for connecting a full voltage fence, a yellow terminal for connecting a permanently de-energized fence and a green terminal for measuring the quality of the grounding. You can learn how to use the yellow and green generator terminals in our tutorial in the basic installation section.

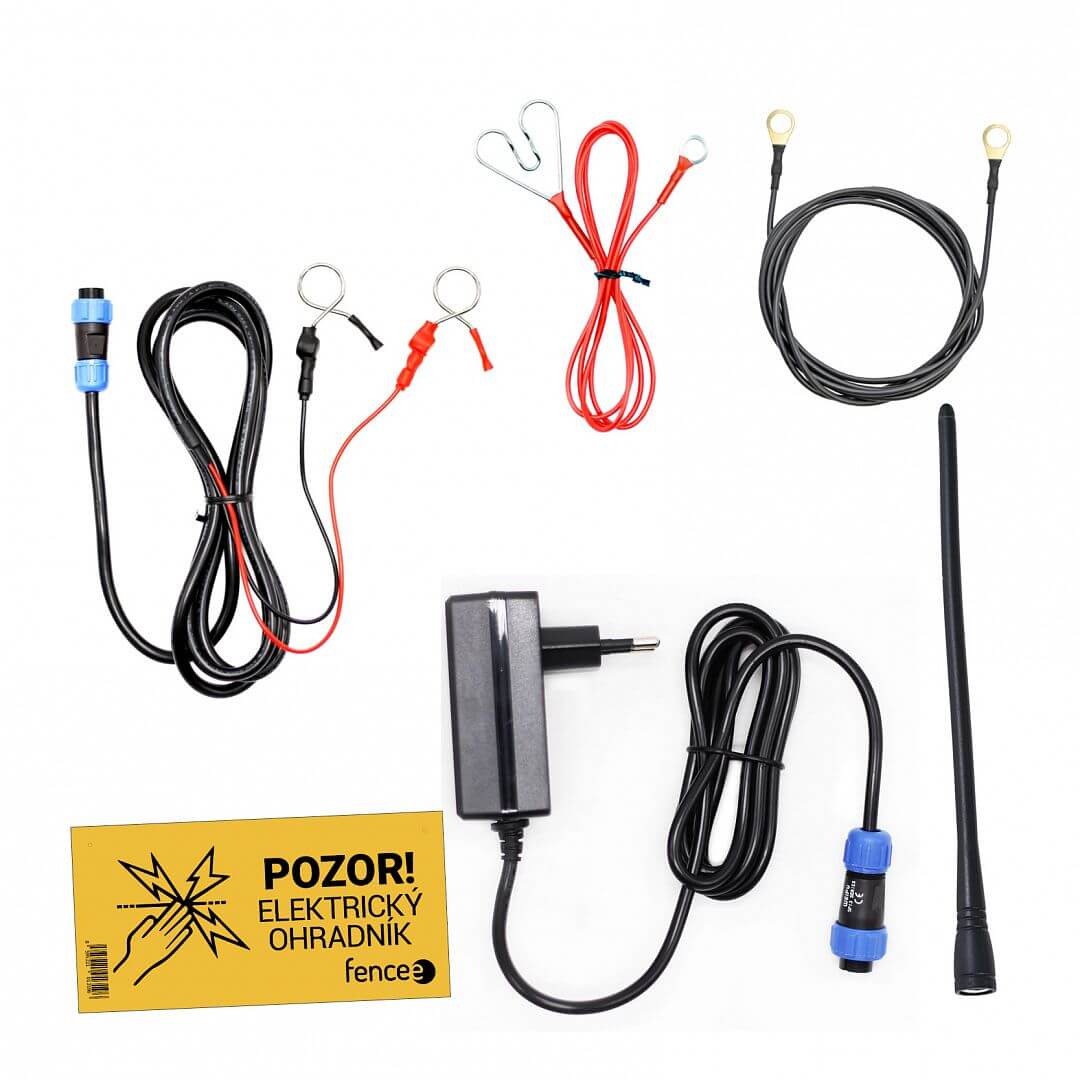

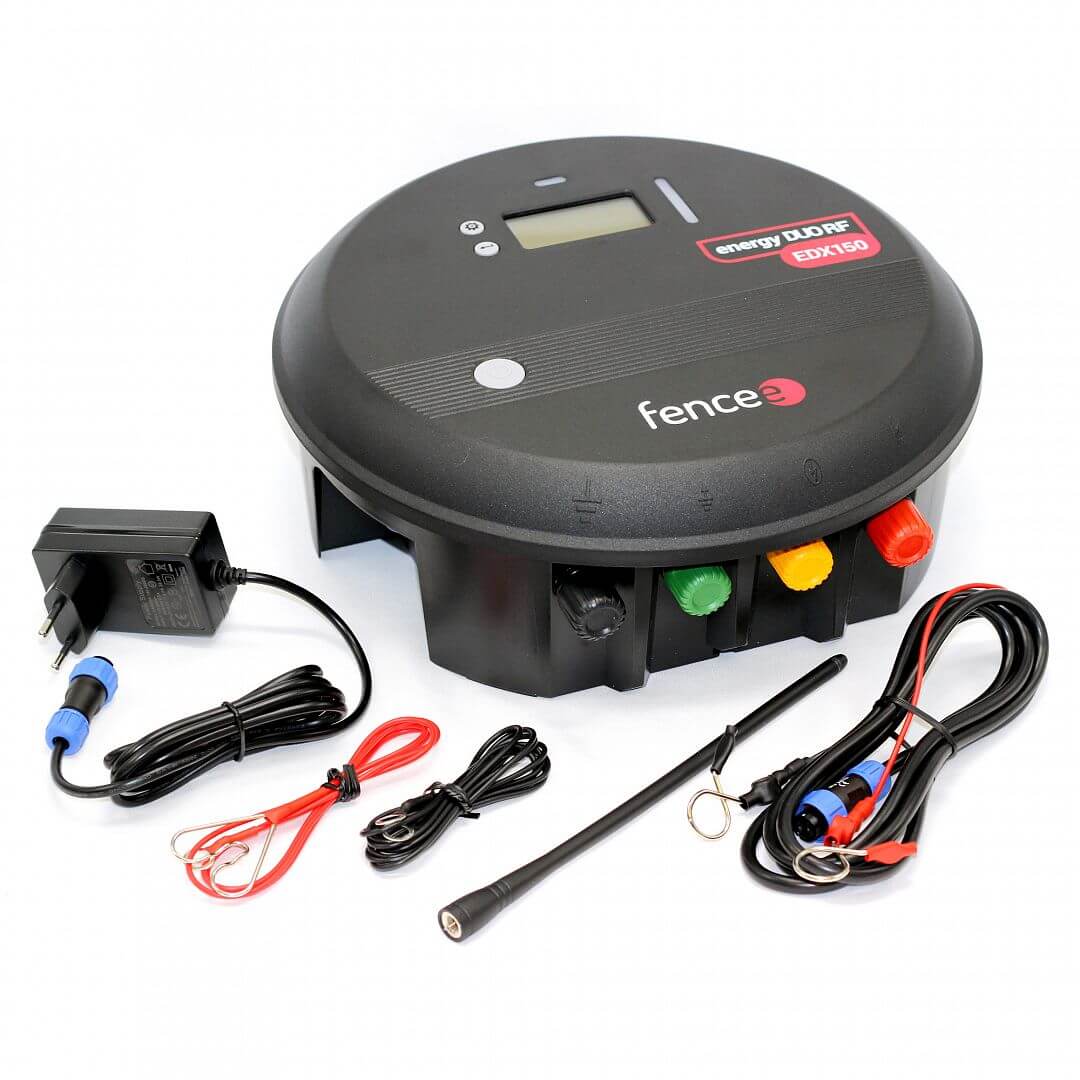

Package contents:

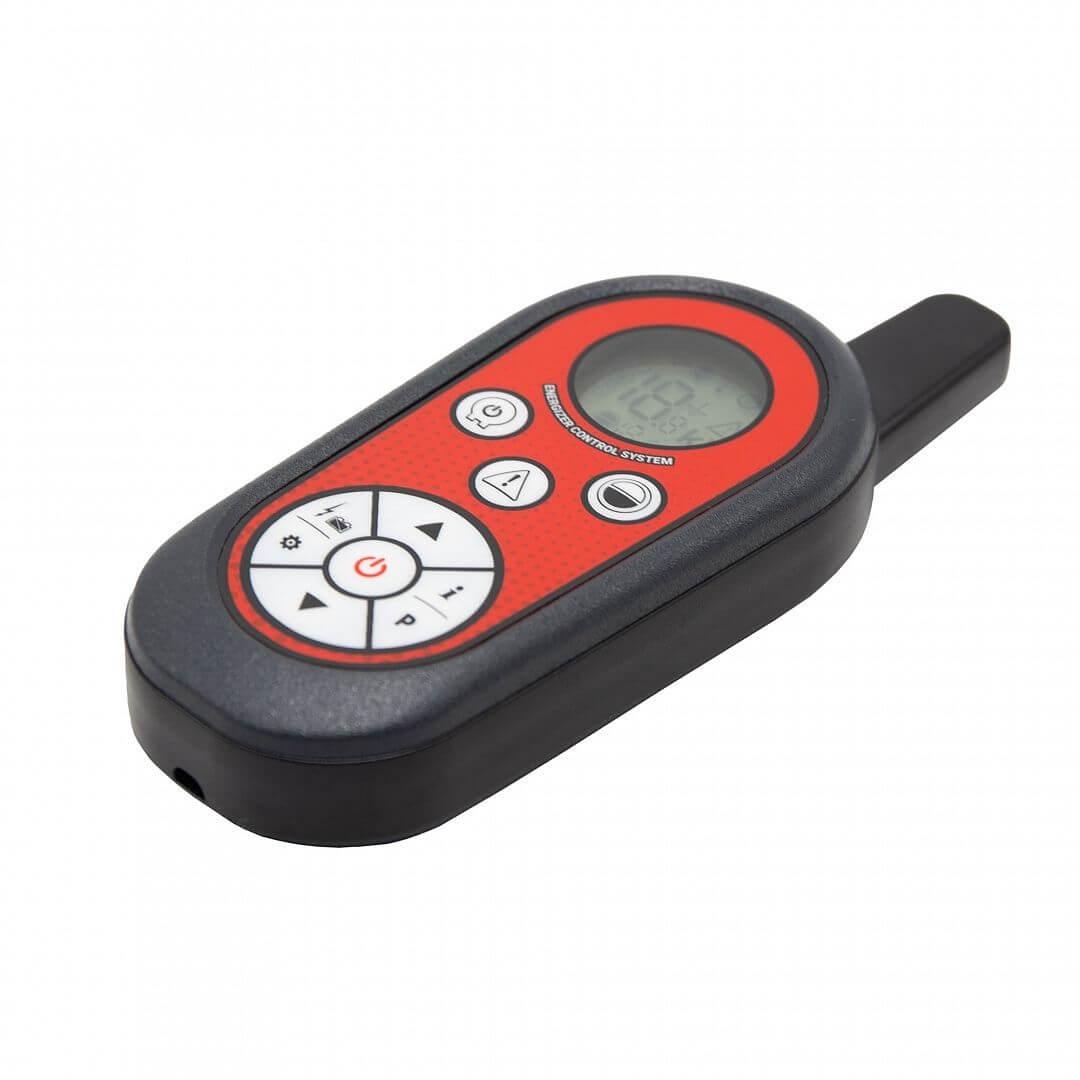

- fencee generator + remote control
- power adapter 14 V / 2 A
- basic RF antenna
- 150 cm ground cable (eye-to-eye)
- connection cable 100 cm (eyelet-heart)
- battery cable
- fencee warning plate
- operating instructions
Spolu s generátorem doporučujeme zakoupit DIN lištu 200 mm pro snadnou montáž ohradníku na zeď.

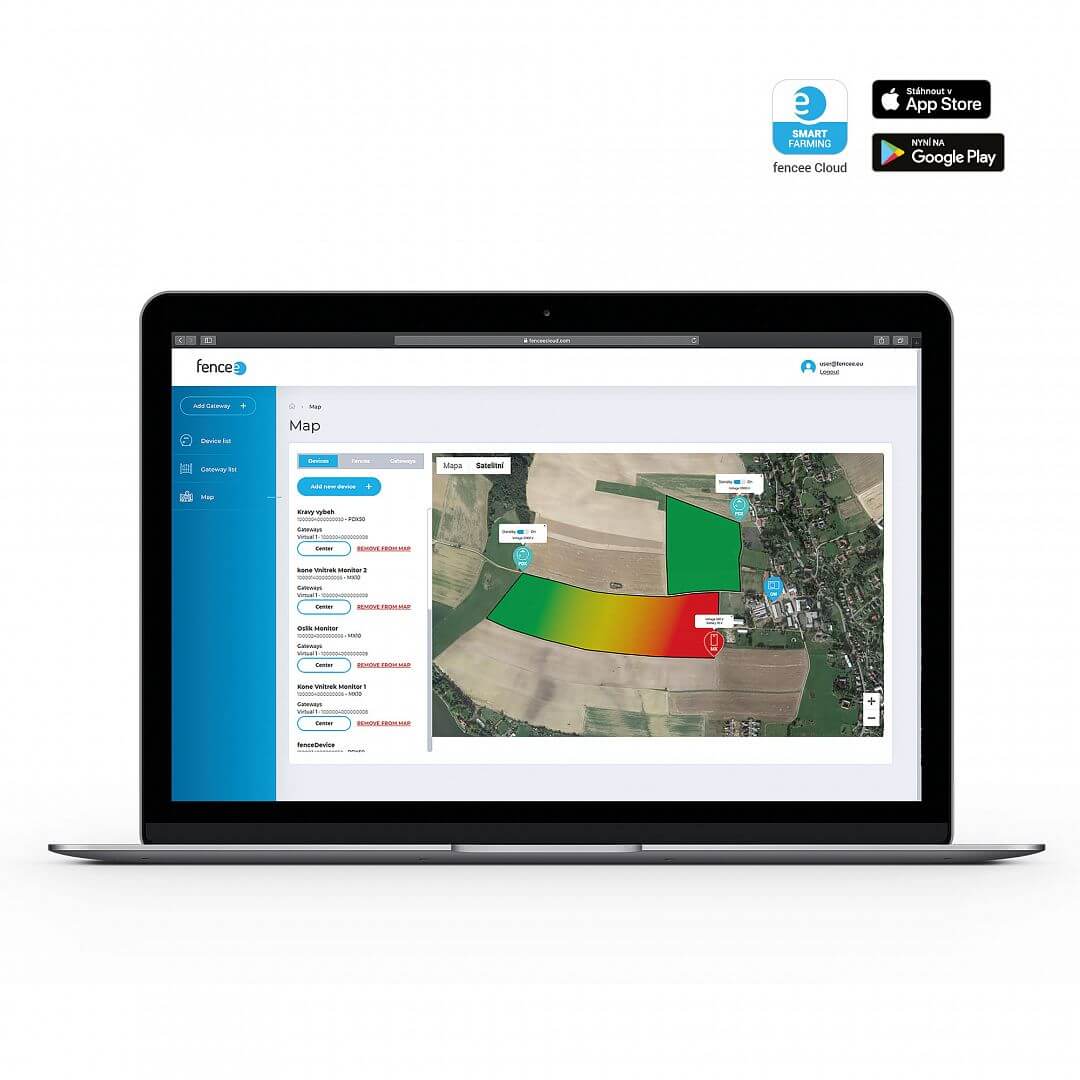

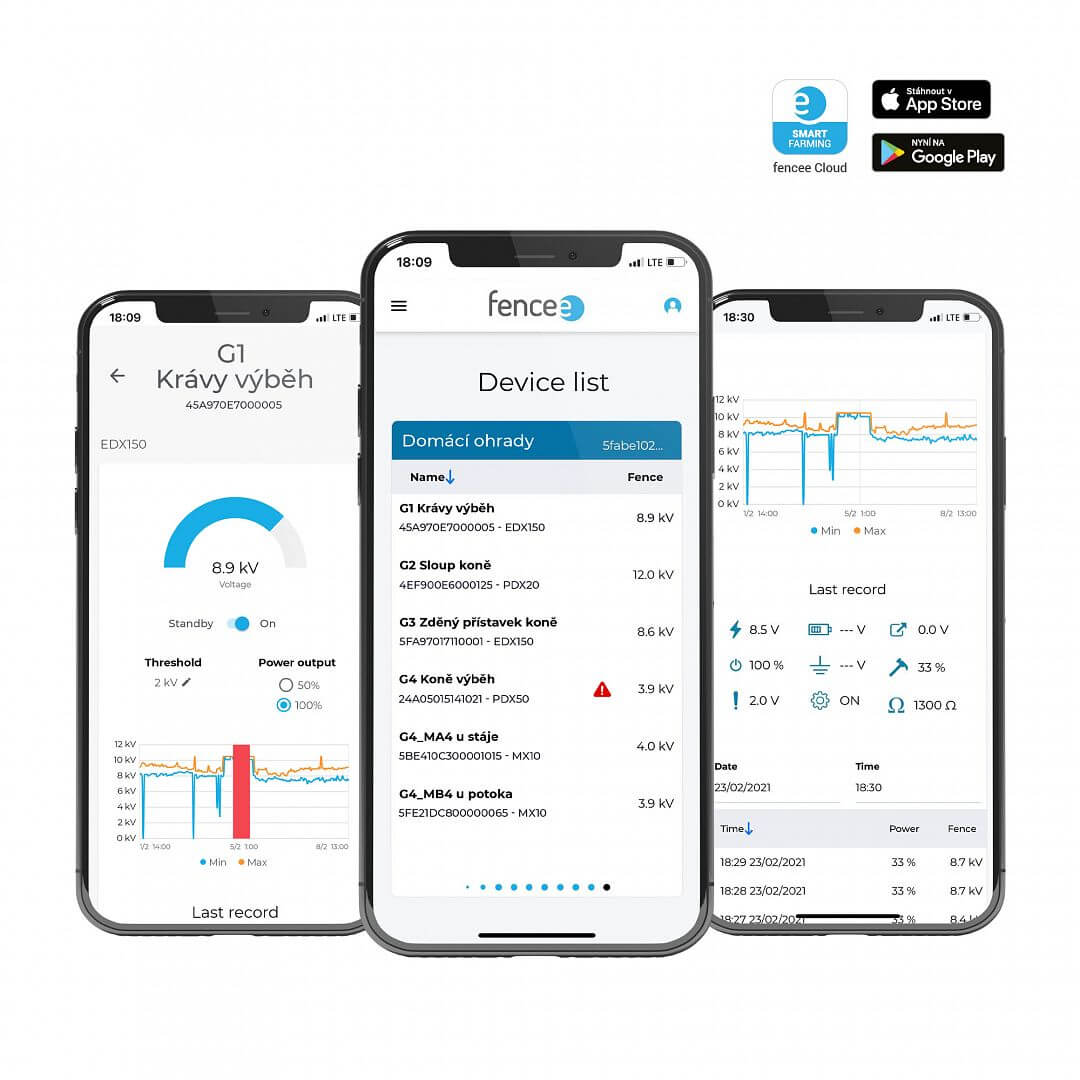

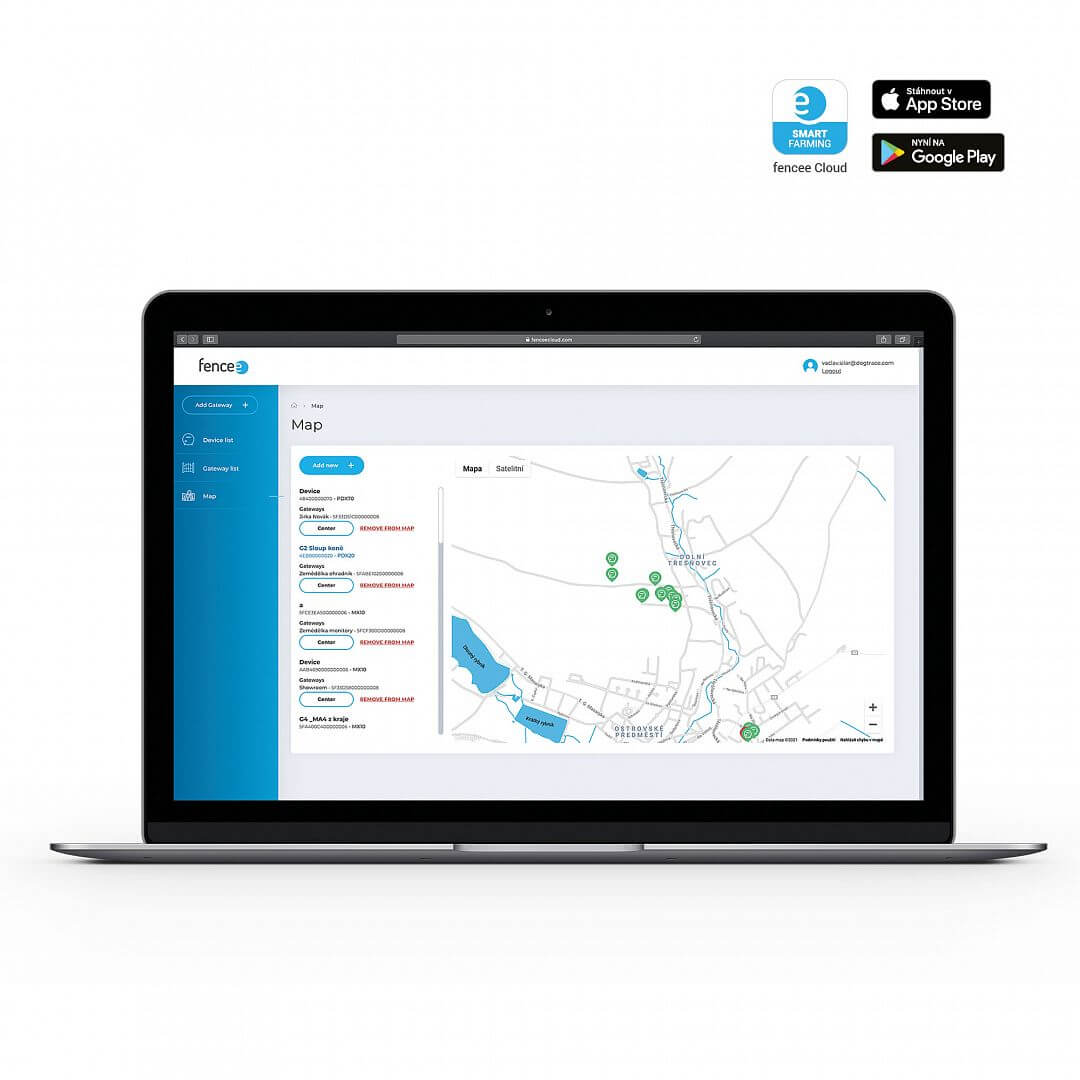

Case Studies Smart Farm fencee Cloud
See how Smart Farm is helping several of our customers with the fencee Cloud app, including a zoo, a cattle farm, a sheep farm or a horse ranch.
| Power source | 230 V ~ / 12 V |
| Energizer consumption 230 V | 6 - 14 W |
| Energizer consumption 12 V | 200 - 850 mA |
| Output energy | 10 J |
| Input energy | 13 J |
| Output voltage | 10500 V |
| Output voltage 500 Ω | 7500 V |
| ON/OFF | |
| LED ON/OFF | |
| LED impulse | |
| LED low battery voltage | |
| LED lower power 50% | |
| LED error check | |
| Time delay | |
| LED impulse bargraph | |
| Reduced output terminal | |
| Earth measuring terminal | |
| LCD display | |
| fencee Cloud connection | |
| Data encoding | |
| Transmission frequency | 869,525 MHz |
| Transmitting power | +22 dBm |
| Base antenna range | 10 km |
| TEOR. max. CEE | 300 km |
| Range with external antenna | 30 km |
| Low vegetation | 90 km |
| Medium vegetation | 22 km |
| High vegetation | 10 km |
| Earthing 1 m | 5× |
| El. fence nets | 27× |
| Diameter | 290 mm |
| Depth | 108 mm |
| Weigth | 3186 g |
