Product´s description Electric fence generator fencee energy DUO RF EDX80
The powerful smart power supply for the fencee electric fence is specially designed for long (up to 80 km) and vegetated fences where maximum efficiency and reliability must be ensured.
With an output power of up to 8 J, it can provide sufficient voltage even in heavily grassed fences. An integrated microprocessor controls the entire operation and guarantees optimum generator performance.
It is designed for all types of animals, especially wild boars, cattle or forest animals and is also suitable for young animals (e.g.calves, foals).

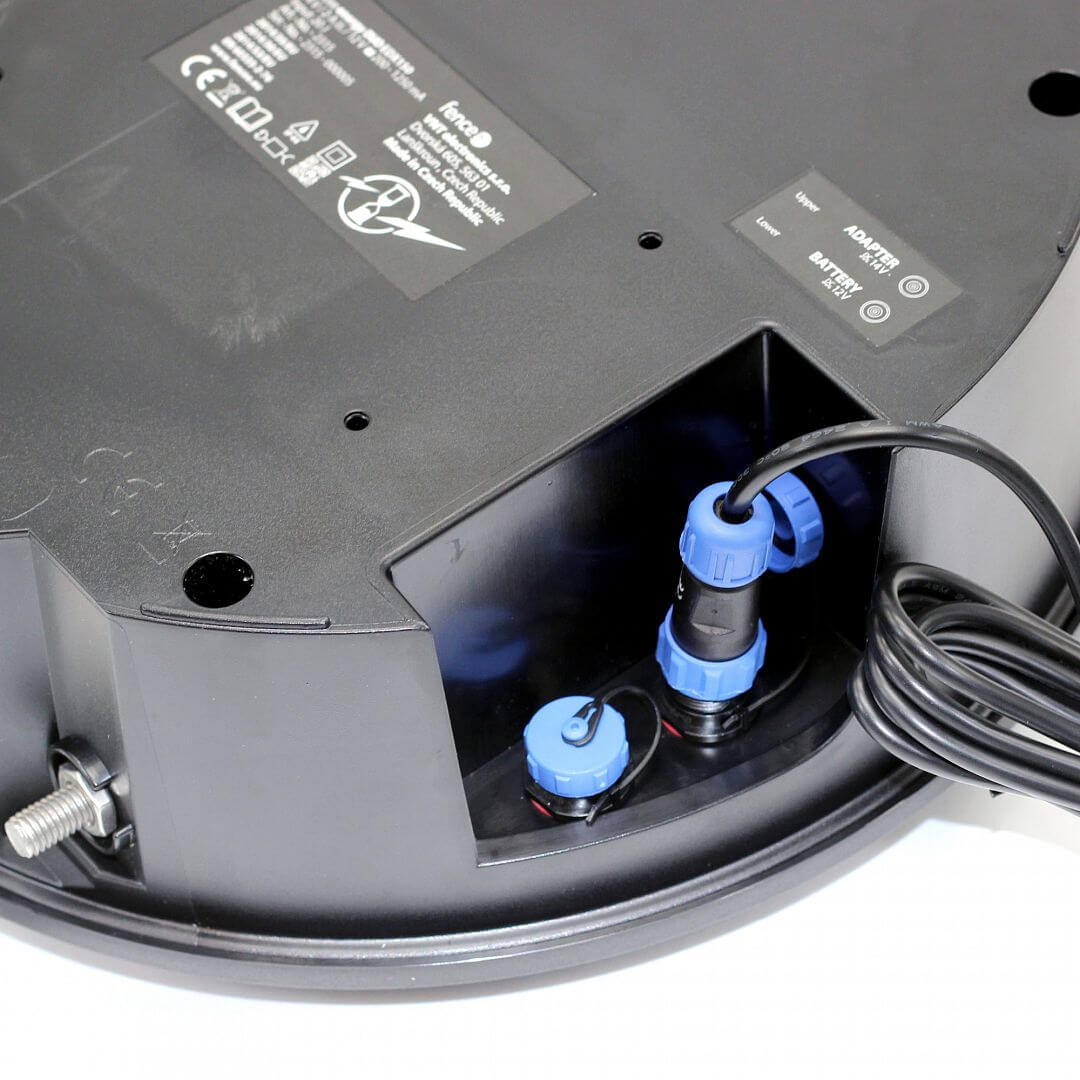

Power can be supplied by an adapter from the mains (230 V) or from anormal battery (12 V), which is mainly used as a backup source in case of power failure. Due to the higher consumption of generators of this series, long-term operation on battery is not suitable.

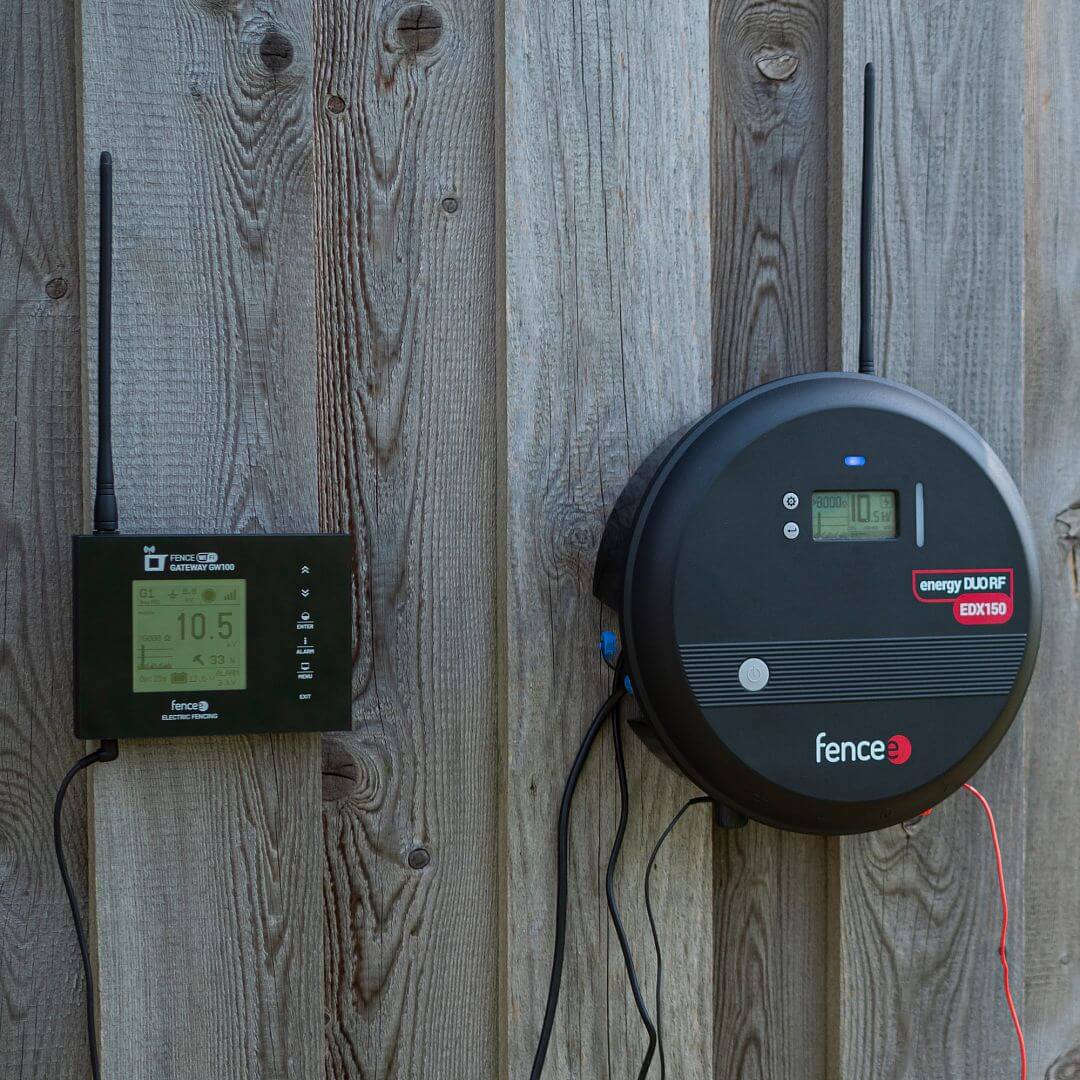

The basic range of radio communication (RF) between the generator and the gateway is up to 10 km in normal terrain and built-up areas. In difficult terrain, e.g. hilly terrain, the range is shorter, while in open areas it can be even longer. To increase the range of signal transmission between the generator and the gateway, an external antenna can be used to increase the communication range up to 30 km.
Check out the article in which we have written some advice on how to properly install an external antenna to guarantee the most efficient RF signal transmission.

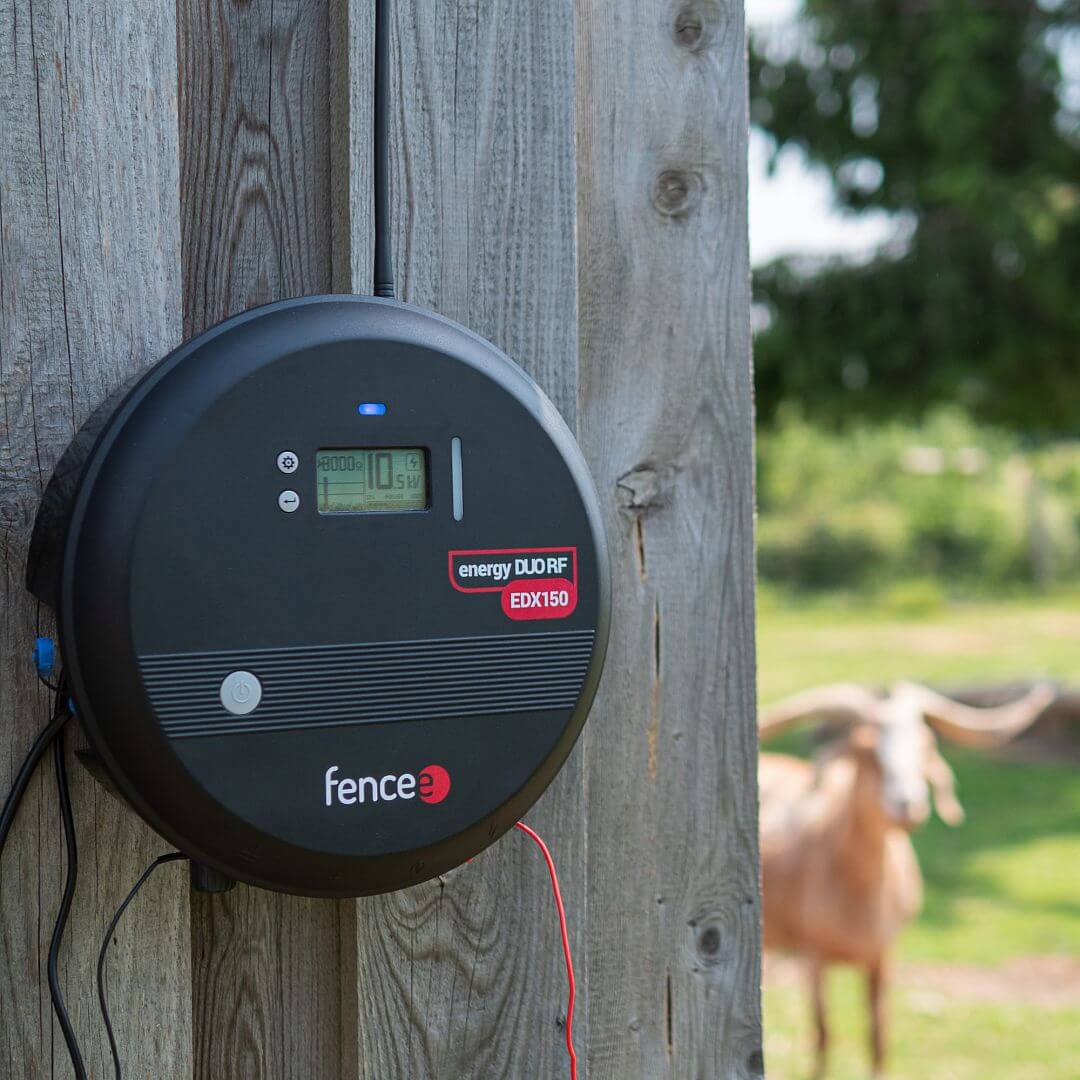

The large LCD display with control buttons clearly informs you of all important values on the pen. LED lights and BARGRAF indicate the operation of the source, display the voltage on the pen and also signal any malfunction on the pen. You can reduce the output energy of the source to 50%, e.g. when you need to save the battery or when using it for other animals. Thanks to the free RF technology you do not need a SIM card.
At the generator output there is a black ground terminal, a red terminal for connecting a pen with full voltage, a yellow terminal for connecting a pen with permanently reduced energy and a green terminal for measuring the ground quality.
To learn how to use the yellow and green generator clamps, see our advice in the basic installation section.
Generators with an output greater than 5 J meet special safety requirements prescribed by the standard. These include a time delay of 50 s when increasing the output due to an increased load on the fence. Another function is a warning when a sudden load is placed on the fence, e.g. a fallen branch, a tangled animal or a person. After six pulses, an alarm is triggered - an audible signal sounds, the red LED flashes and the pulse period is slowed down to 3 s.

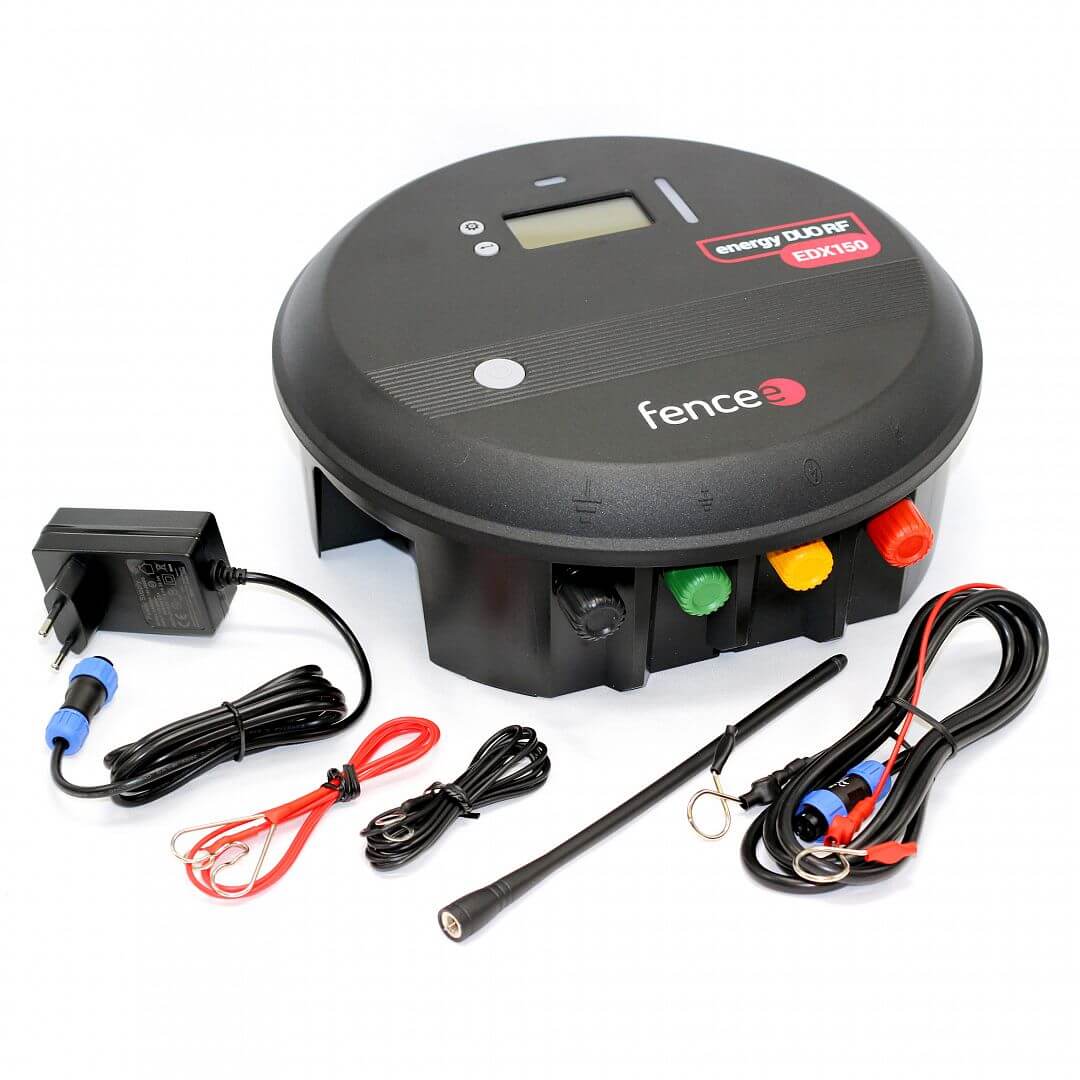

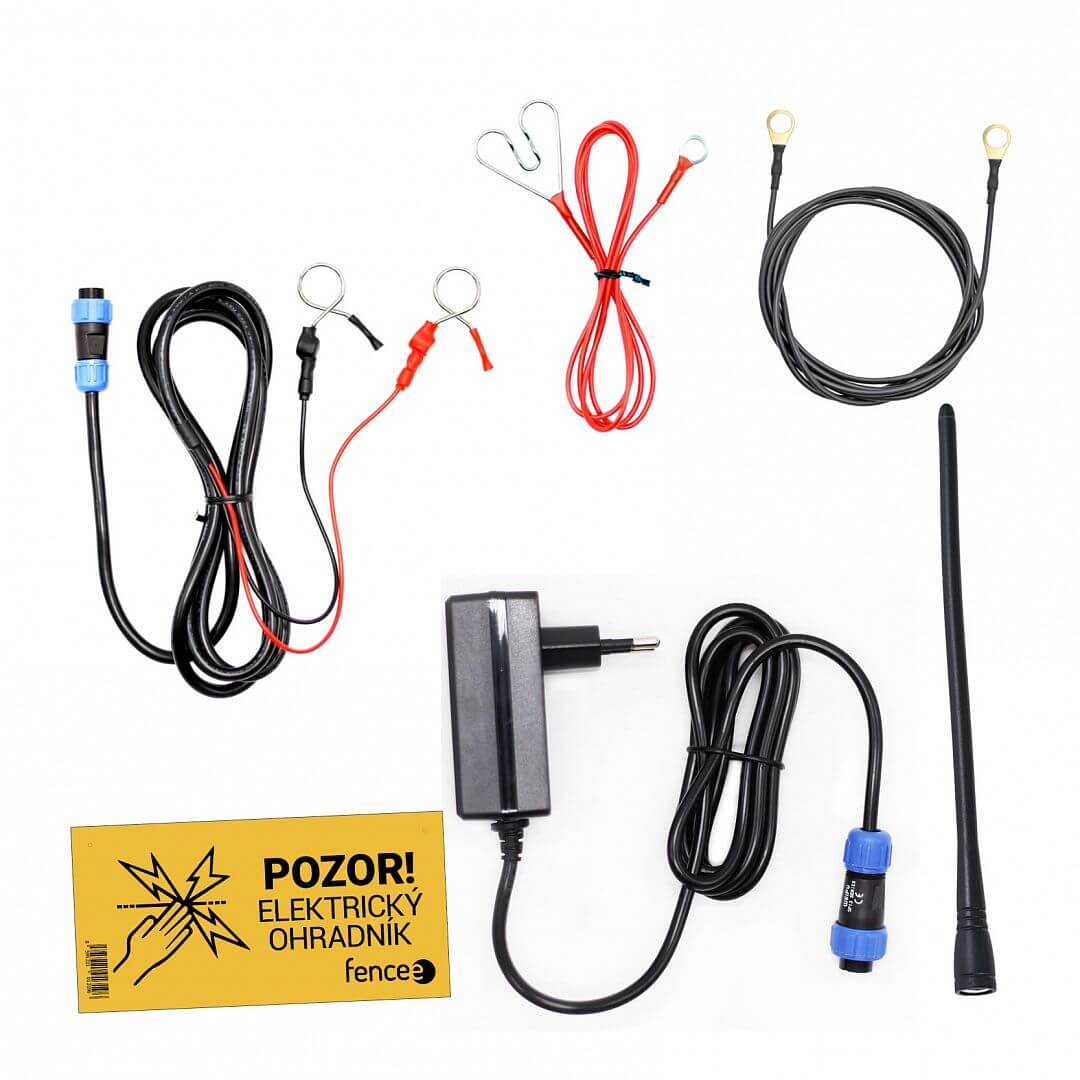

Included:
- fencee generator
- power adapter 14 V / 2 A
- basic RF antenna
- 150 cm ground cable (eye-to-eye)
- connection cable 100 cm (eyelet-heart)
- battery cable for connecting energy RF to the battery
- fencee warning plate
- operating instructions
Together with the generator we recommend to purchase a DIN rail 200 mm for easy mounting of the fence.
If you are looking for a different generator, you can choose from the power supplies for the electric fence by animal or by power type.

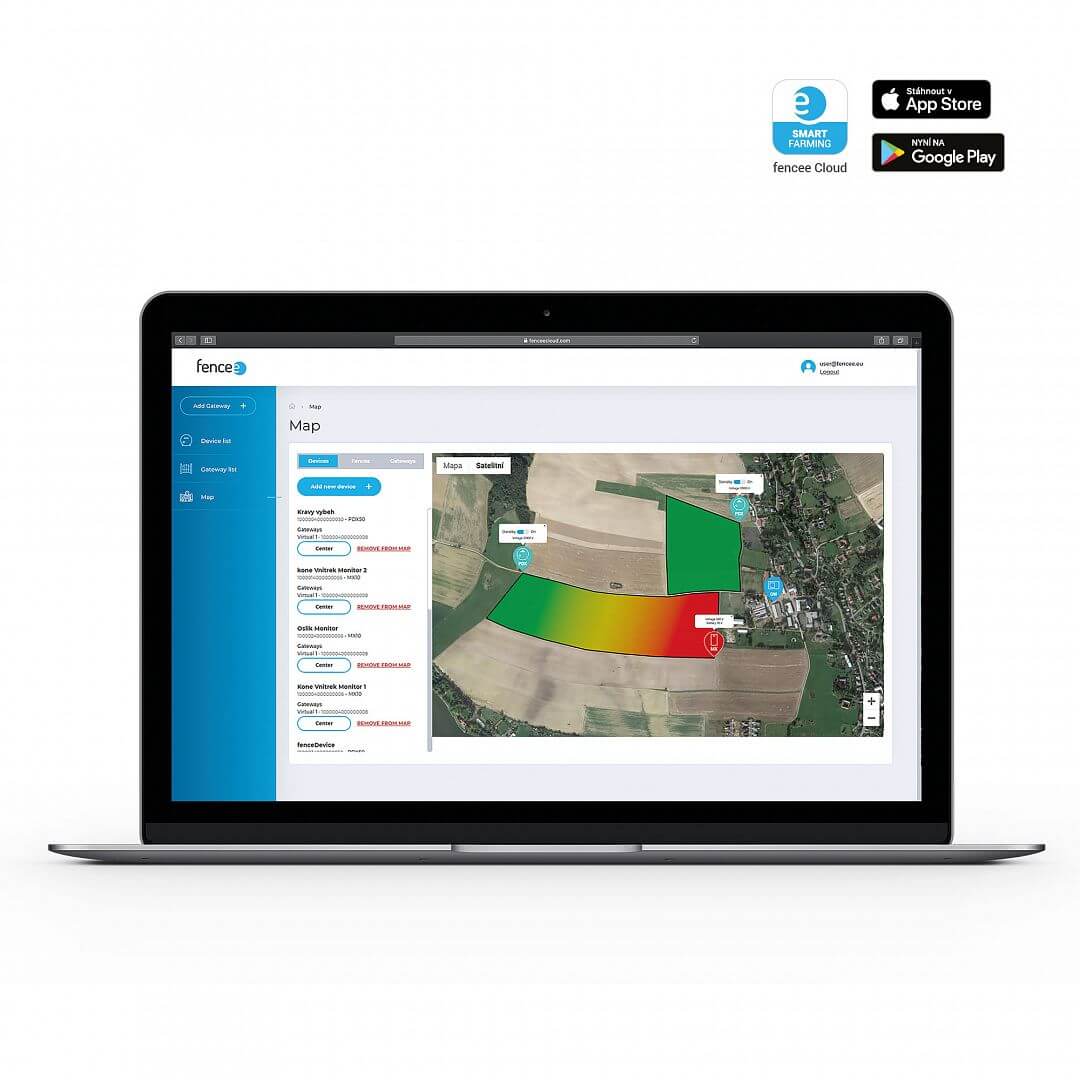

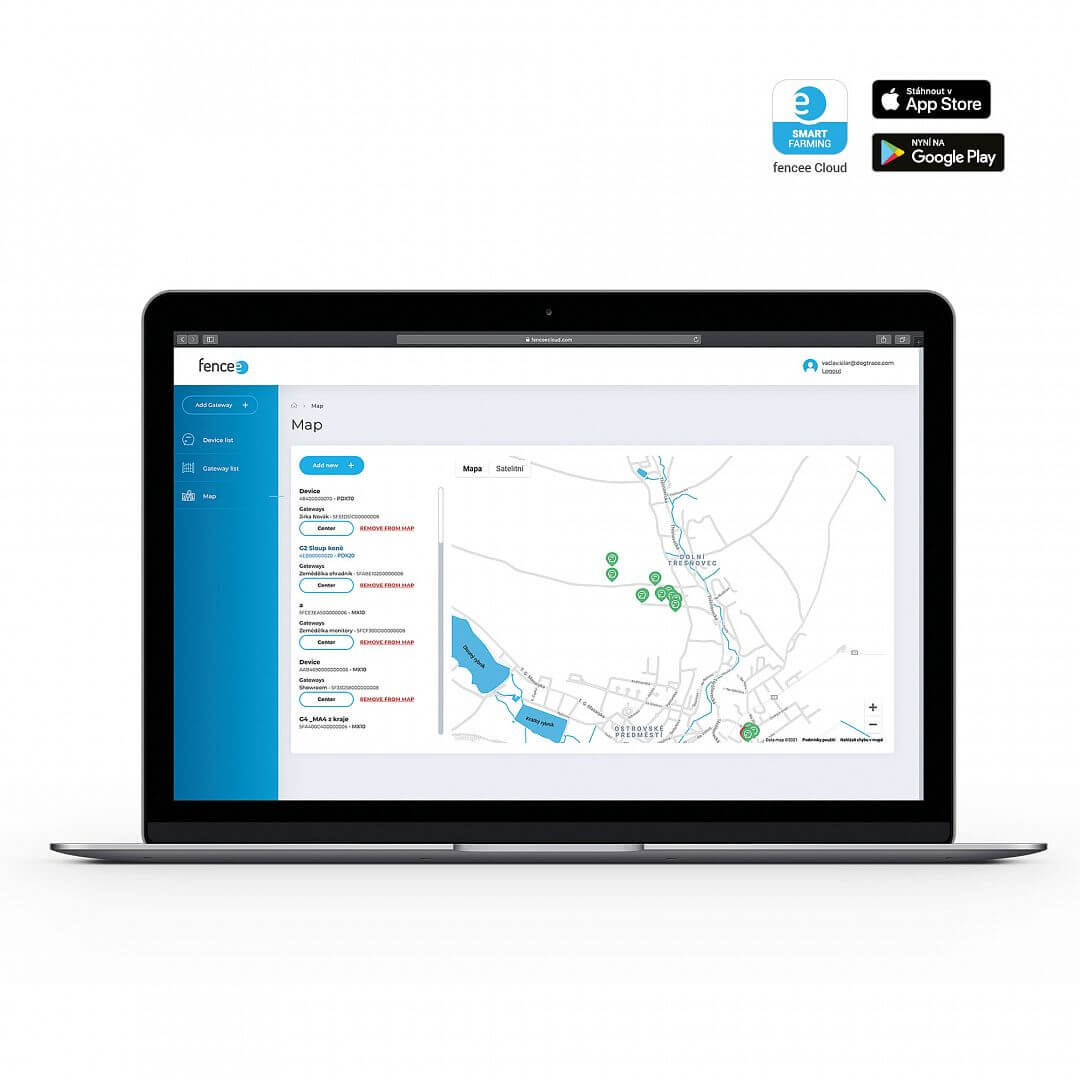

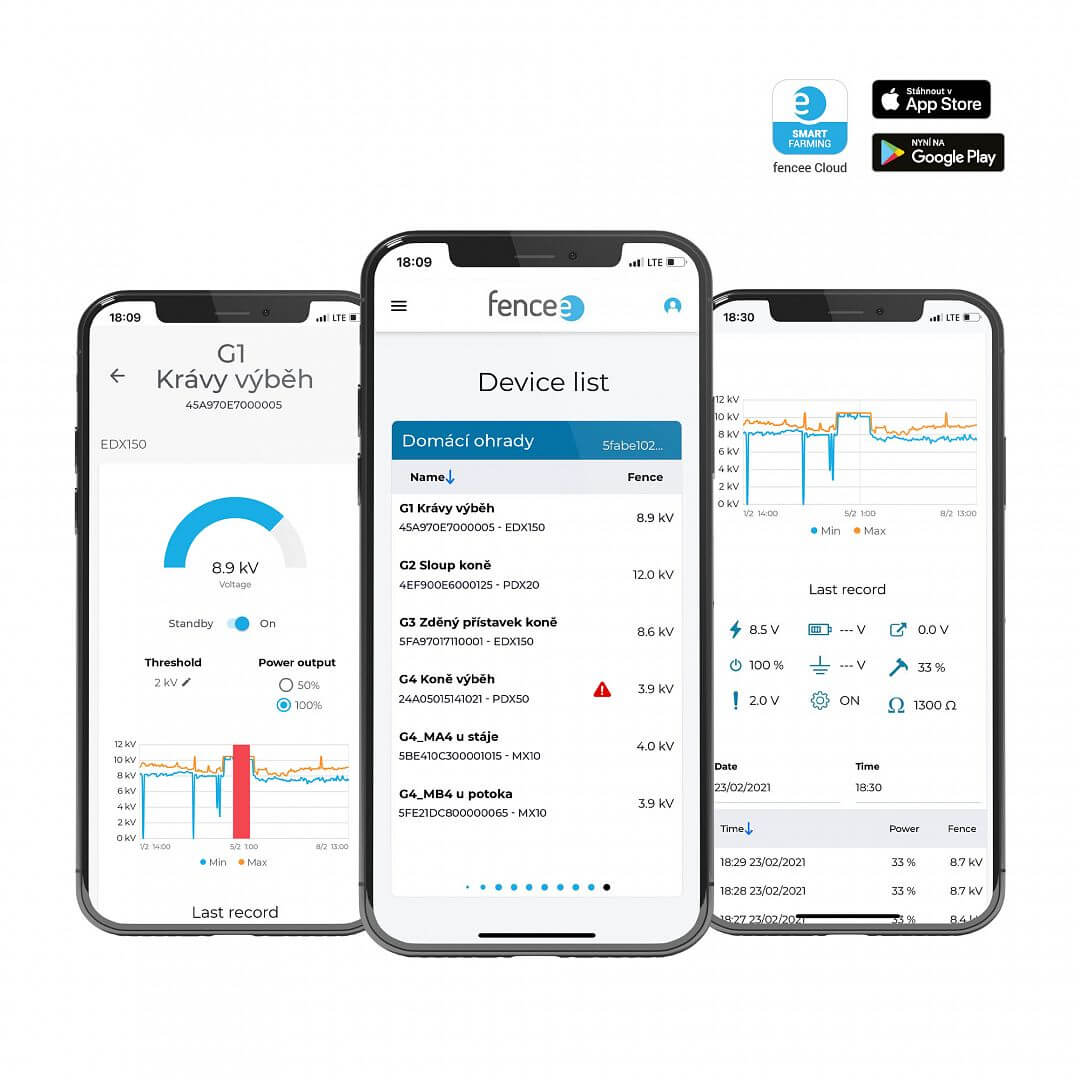

Case Studies Smart Farms fencee Cloud
See how Smart Farm is helping several of our customers with the fencee Cloud app, including a zoo, a cattle farm, a sheep farm or a horse ranch.
| Power source | 230 V ~ / 12 |
| Energizer consumption 230 V | 6 - 11 W |
| Energizer consumption 12 V | 200 - 750 mA |
| Output energy | 8 J |
| Input energy | 11 J |
| Output voltage | 10500 V |
| Output voltage 500 Ω | 7500 V |
| ON/OFF | |
| LED ON/OFF | |
| LED impulse | |
| LED low battery voltage | |
| LED lower power 50% | |
| LED error check | |
| Time delay | |
| LED impulse bargraph | |
| Reduced output terminal | |
| Earth measuring terminal | |
| LCD display | |

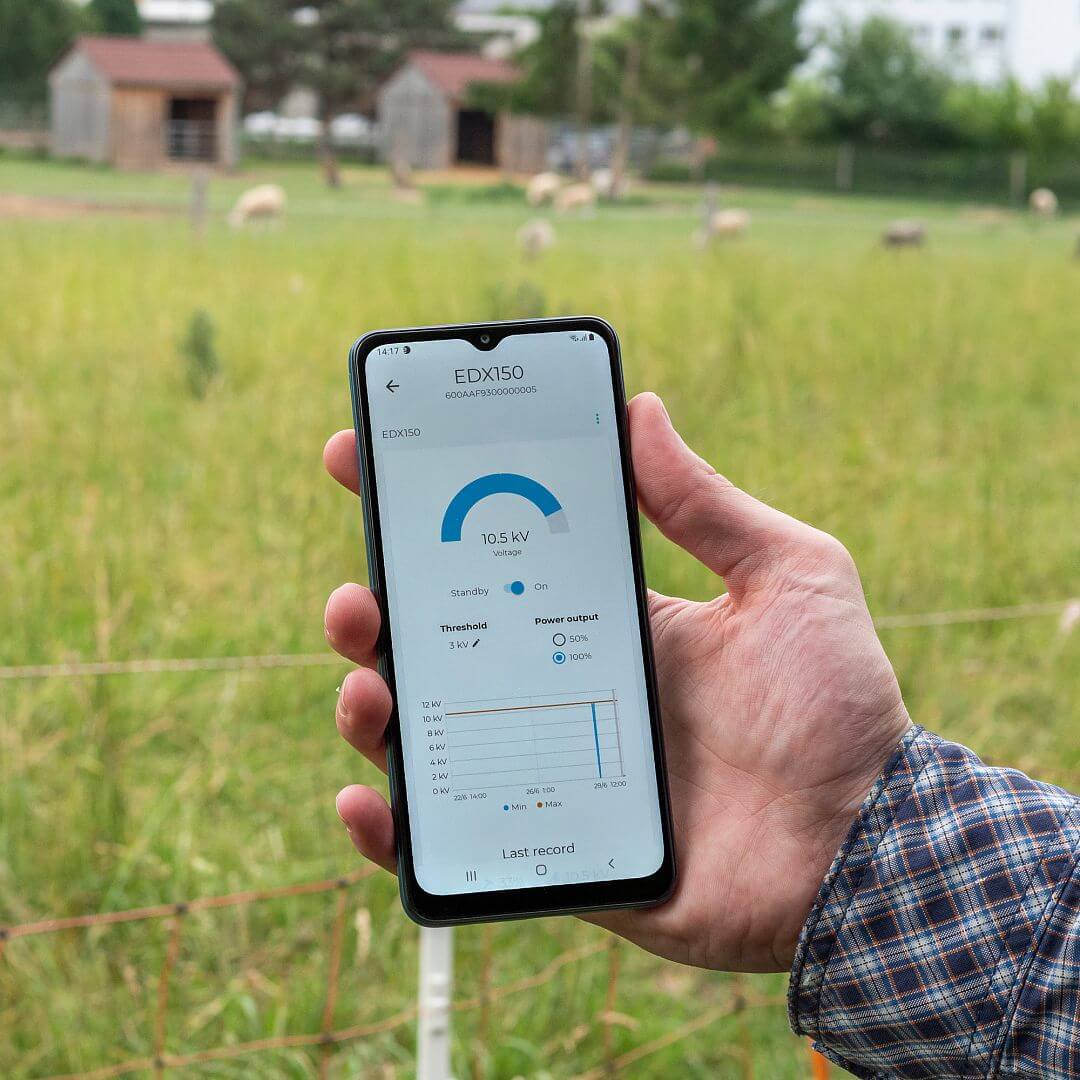

| fencee Cloud connection | |

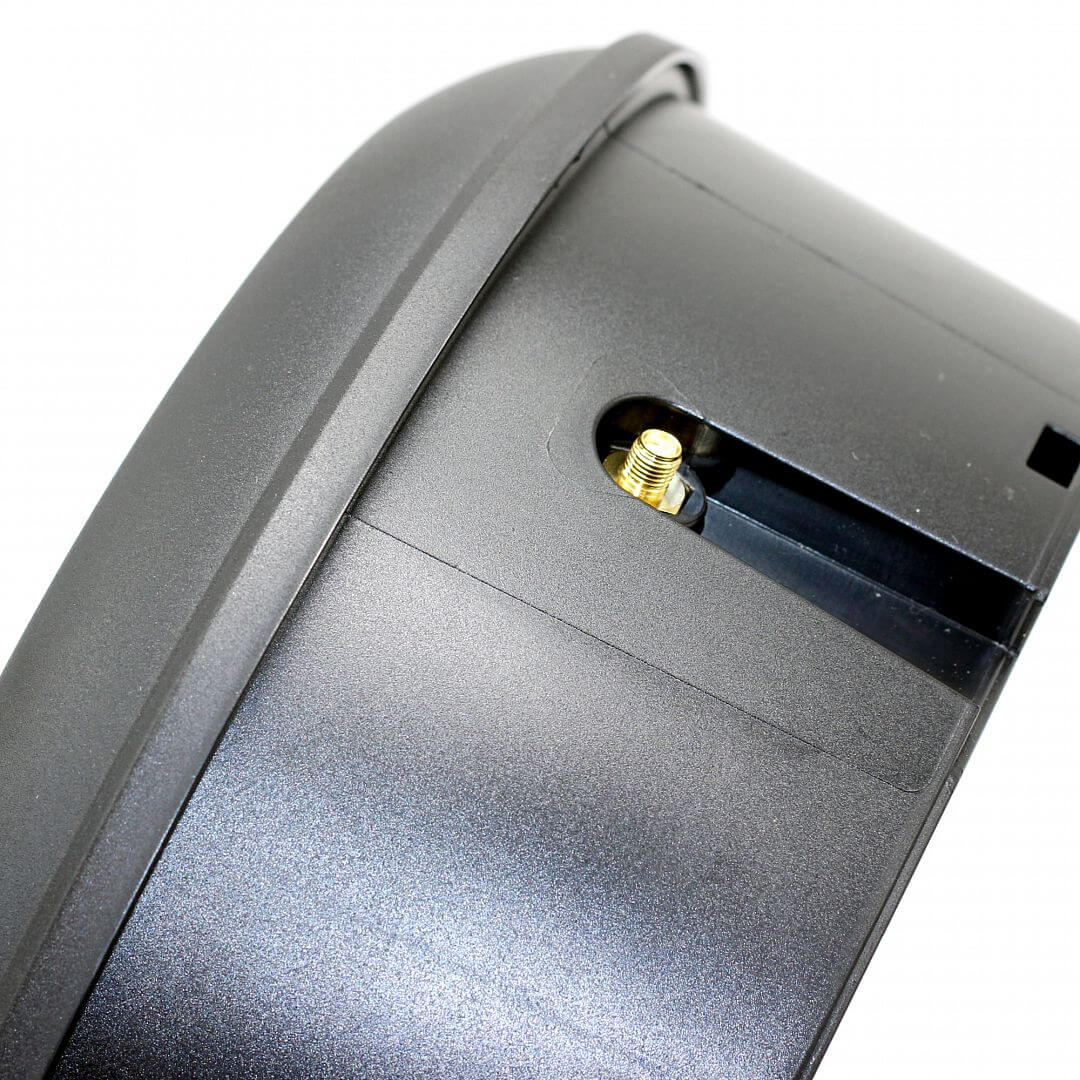

| External antenna SMA connector | |
| TEOR. max. CEE | 230 km |
| Low vegetation | 80 km |
| Medium vegetation | 17 km |
| High vegetation | 8 km |
| Earthing 1 m | 4x |
| El. fence nets | 22x |
| Diameter | 290 mm |
| Depth | 108 mm |
| Weigth | 3296 g |
