Product´s description Smart Farm electric fence system - RF energizer 3 J + Controller - WiFi Gateway GW100 - Phone control
Set of smart electric fence with RF energizer and central device FENCE WiFi GATEWAY GW100. The central device allows immediate connection to the fencee Cloud app. Thanks to that it is possible to control all the connected RF devices via mobile phone, tablet, or PC.
Smart electric fence energizer 3 J
Smart energizer fencee power DUO RF PDX30 with a remote controller is the basic element of this set. With the remote controller, you can control the energizer from a distance of up to 10 km. This RF energizer is applicable to all animal species. You can also use it as a protection against small predators and damage-causing animals.

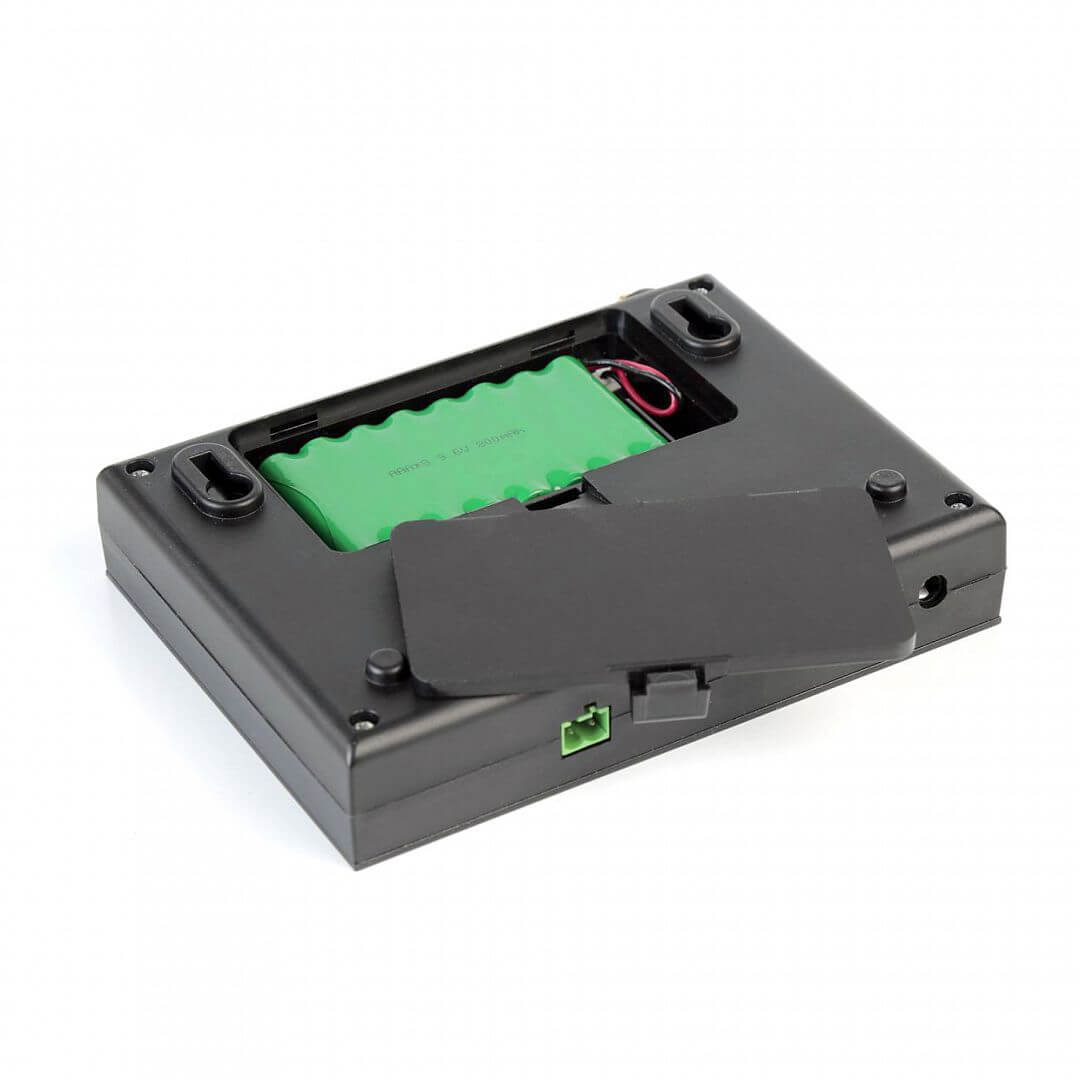

Central control device Gateway
Set of smart electric fence includes a central control device FENCE WiFi GATEWAY GW100. Thanks to the WiFi Gateway you can connect devices to the fencee Cloud app and via the free application for Android and iOS you can manage paired RF devices any time and from anywhere. With 1 central WiFi Gateway, you can control up to 12 RF devices (RF energizers and Monitors). To operate the smart electric fence system there is no need for any registration fees and SIM cards. Minimize your operating costs. Via the fencee Cloud app, you do not just control energizers but you can also check and monitor them - thanks to the notifications that immediately appear on your mobile phone and e-mail.
Owner Mr. Eman Hanyk
Read full article
Thanks to the Smart Farm fencee Cloud system you will get a maximum overview of your electric fence anytime and from anywhere in the world. You can remotely turn ON/OFF, control and monitor the electric fence. In case of any problem situation, you will receive an immediate alarm on your mobile phone or e-mail. You can read all benefits and functions of the Smart electric fence system with fence Cloud application in our article.
Basic and external RF antenna
Smart fencee RF devices are supplied with a basic RF antenna which allows communication range at a distance of 10 km. In case you need to improve the quality of RF signal and range of transmission, use the possibility to install an external antenna. Thanks to the installation of the external antenna, you will increase the communication range up to 30 km. Read more about external antenna installation in our article.
Combined power supply 230 V/12 V
DUO fencee energizers can be powered by mains 230 V or battery 12 V. The battery can be also used as backup power in case of electric power failure. Central control device FENCE WiFi GATEWAY GW100 is 230 V powered. Gateway is equipped with backup power that supplies the voltage for up to 12 hours in case of a power outage.
In case you need any help with the choice of an ideal energizer or another device, do not hesitate to contact our technical department, we will be happy to help you.
Content of the package:
Part of the package of the energizer power DUO RF PDX30:
- 1× energizer fencee power DUO RF PDX30
- 1× remote controller
- 1× power adapter 14 V/2V
- 1× basic RF antenna
- 1× earthing cable 150 cm (eyelet-eyelet)
- 1× connecting cable 100 cm (eyelet-heart)
- 1× battery cable for connecting the energy DUO RF to battery
- 1× warning sign fencee
- 1× operating manual
We recommend buying DIN rail 200 mm for mounting of the energizer on the wall.
Part of the package FENCE WiFi GATEWAY GW100:
- 1× basic RF antenna
- 1× power adapter 14 VDC
- 1× backup battery source 9,6 V
- 2× screw and dowel for the installation
- 1× operating manual
Case Studies with Smart Farm fencee Cloud system
See how Smart Farm with fencee Cloud helps several of our customers, including a zoo, a cattle cooperative, a sheep farm or a horse ranch.
| Energizer consumption 230 V | 5 W |
| Energizer consumption 12 V | 80 - 260 mA |
| Output energy | 3 J |
| Output voltage | 11200 V |
| Output voltage 500 Ω | 6400 V |
| ON/OFF | |
| LED ON/OFF | |
| LED impulse | |
| LED low battery voltage | |
| LED lower power 50% | |
| LED error check | |
| LED impulse bargraph | |
| fencee Cloud connection | |
| External antenna SMA connector | |
| Number of connected devices | 1 - 12 |
| Remote control | |
| Data encoding | |
| Controller batteries | 1× CR2 |
| Base antenna range | 10 km |
| Range with external antenna | 30 km |
| Transmission frequency | 869,525 MHz |
| Transmitting power | +22 dBm |
| TEOR. max. CEE | 100 km |
| Low vegetation | 23 km |
| Medium vegetation | 5 km |
| High vegetation | 2 km |
| Earthing 1 m | 2 × |
| El. fence nets | 6 × |
| DIN rail | |
| Diameter | 210 mm |
| Depth | 66 mm |
| Weigth | 1620 g |
FAQ
- General information
- Recommended wire heights
- Can fencee energizers endure rain, snow or sun shining?
Protected by utility model
Smart Farm fencee Cloud system is protected in the EU utility model Nº 1870632, Nr. 202018102939, Nr. 31675
