Product´s description Smart Farm electric fence system – RF energizer 10 J – WiFi Gateway GW100 – Monitor MX10
Set of smart electric fence with powerful RF energizer and central device FENCE WiFi GATEWAY GW100. The central device allows immediate connection to the fencee Cloud app. Thanks to that it is possible to control all the connected RF devices via mobile phone, tablet, or PC.
Smart electric fence energizer
Thanks to the output power of 10 J, 230 V/12 V energizer fencee energy DUO RF EDX100 is applicable for very long fences with installation length up to 90 km. The energizer is universally applicable for almost all animal species, such as horses, sheep, cattle, pigs, or goats. It can also be used to protect land or crops from wild game, wild boars, or damage-causing animals such as otters, martens, and beavers. Thanks to the yellow terminal with the reduced output energy, it is also suitable for young animals. It can be connected to the bottom row of the fence wires or to the second fence, in which smaller animals or young move.

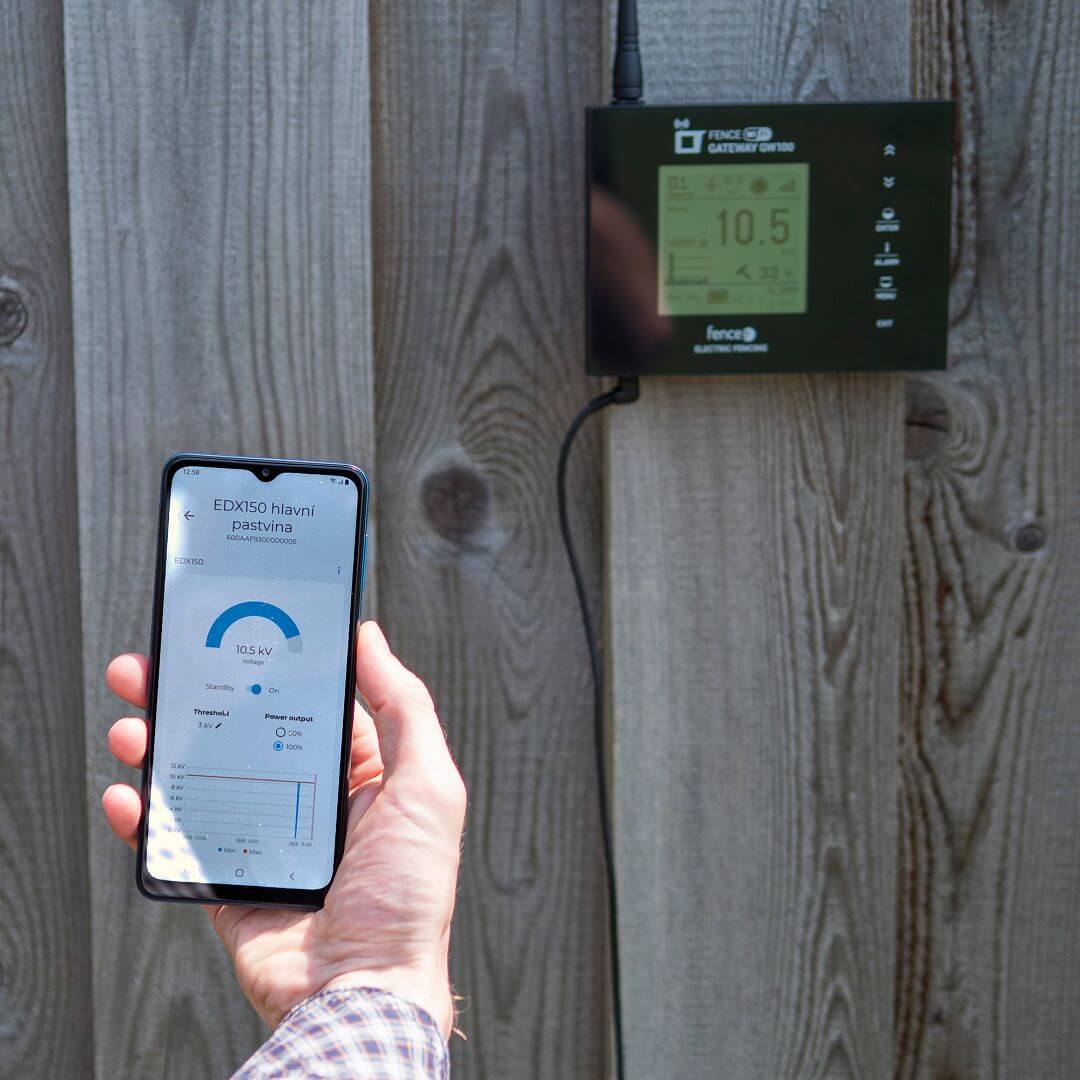

Central control device Gateway
Set of smart electric fence includes a central control device FENCE WiFi GATEWAY GW100. Thanks to the WiFi Gateway you can connect devices to the fencee Cloud app and via the free application for Android and iOS you can manage paired RF devices any time and from anywhere. With 1 central WiFi Gateway, you can control up to 12 RF devices. To operate the smart fence system there is no need for any registration fees and SIM cards. Minimize your operating costs. Via the fencee Cloud app, you do not just control energizers but you can also check and monitor them - thanks to the notifications that immediately appear on your mobile phone and e-mail.

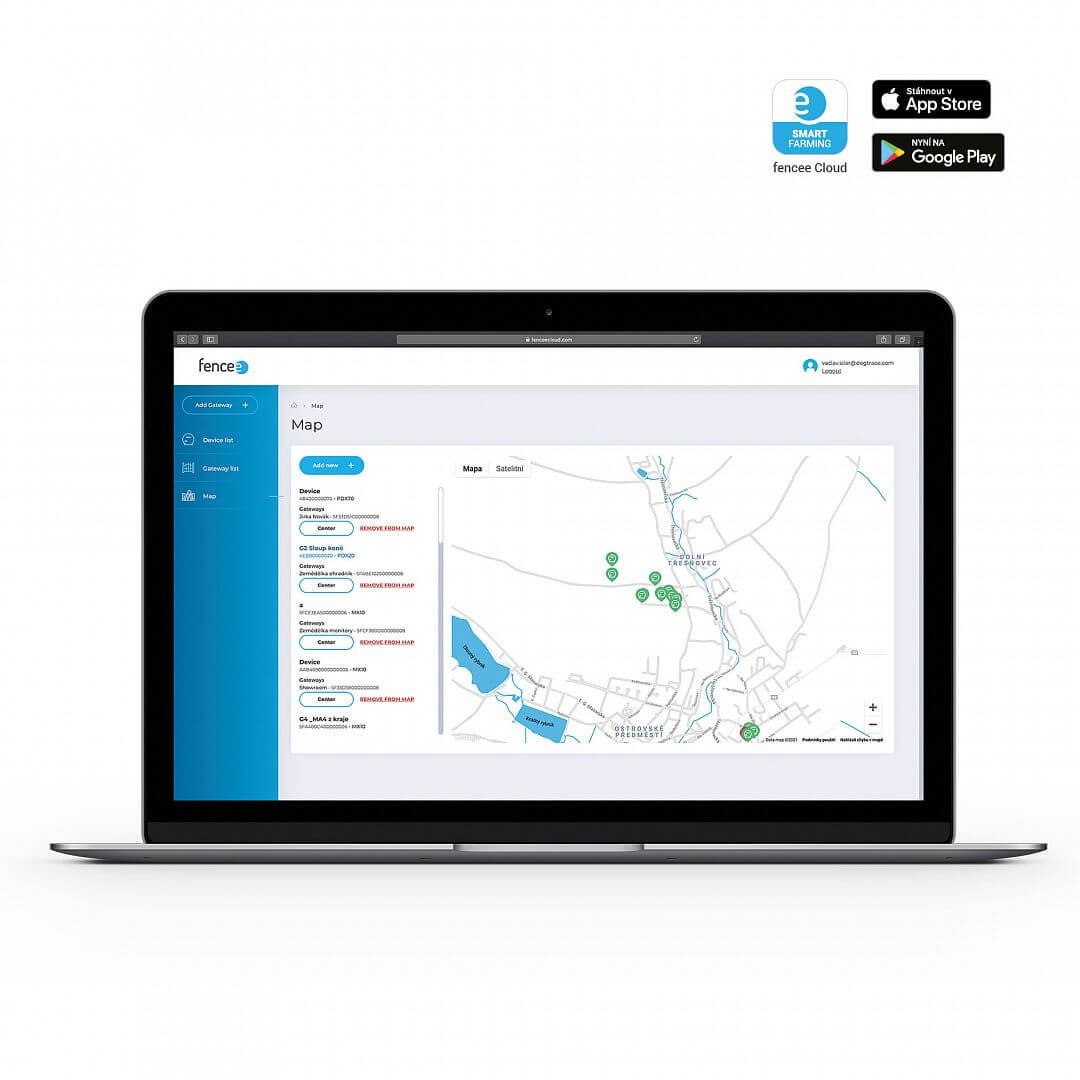

Thanks to the Smart Farm fencee Cloud system you will get a maximum overview of your electric fence anytime and from anywhere in the world. You can remotely turn ON/OFF, control, and monitor the electric fence. In case of any problem situation, you will receive an immediate alarm on your mobile phone or e-mail. You can read all benefits and functions of the Smart electric fence system with fence Cloud application in our article.

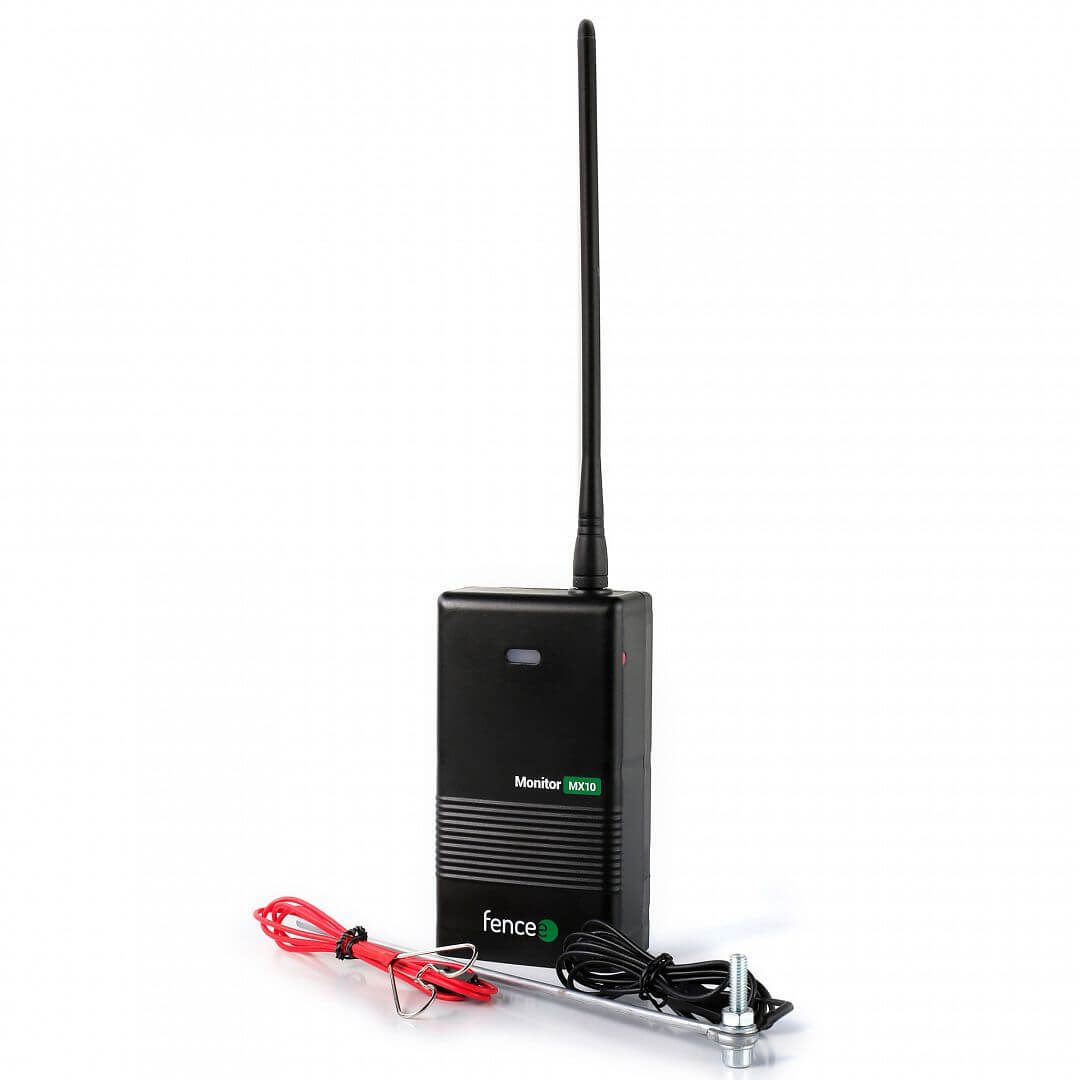

The monitoring device
There is also a monitoring fence device in the set. Connect it to the fence and monitor the voltage value. If the level of fence voltage drops below the set value (Threshold), the monitoring device sends a notification to the central Gateway which turns on online alarm about the voltage drop in the fence immediately. The paired Monitor MX10 can be controlled remotely by a mobile application. There are many options to install the control monitors on the electric fence. For more information, read an article about various monitor connections.
Basic and external RF antenna
Smart fencee RF devices are supplied with a basic RF antenna which allows communication range at a distance of 10 km. In case you need to improve the quality of RF signal and range of transmission, use the possibility to install an external antenna. Thanks to the installation of the external antenna, you will increase the communication range up to 30 km. Read more about external antenna installation in our article.
Combined power supply 230 V/12 V
DUO fencee energizers can be powered by mains 230 V or battery 12 V. The battery can be also used as backup power in case of electric power failure. Central control device FENCE WiFi GATEWAY GW100 is 230 V powered. Gateway is equipped with backup power that supplies the voltage for up to 12 hours in case of a power outage.
In case you need any help with the choice of ideal energizers or other equipment, do not hesitate to contact our technical department, we will be happy to help you.
Content of the package:
- Energizer fencee energy DUO RF EDX100
- Central control device FENCE WiFi GATEWAY GW100
- Monitoring device Monitor MX10
Part of the package of the energizer energy DUO RF EDX100:
- 1× power adapter 14 V/2 A
- 1× basic RF antenna
- 1× earthing cable 150 cm (eyelet-eyelet)
- 1× connecting cable 100 cm (eyelet-heart)
- 1× battery cable
- 1× warning sign fencee
- 1× manual
We recommend buying a DIN rail 200 mm with the set for easy mounting of the energizer on the wall.
Part of the package FENCE WiFi GATEWAY GW100:
- 1× basic RF antenna
- 1× power adapter 14 VDC
- 1× backup battery source 9,6 V
- 2× screw and dowel for the installation
- 1× manual
Part of the package Monitor MX10:
- 1× basic RF antenna
- 2× battery type C LR14
- 1× connecting cable 100 cm
- 1× earthing cable 150 cm with an earthing stake
- 2× tightening tapes for easier mounting of the monitor
- 1× magnet with string on the neck
- 1× manual
Case Studies with Smart Farm fencee Cloud system
See how Smart Farm with fencee Cloud helps several of our customers, including a zoo, a cattle cooperative, a sheep farm or a horse ranch.
Energizer consumption 230 V | 6 - 14 W |
Energizer consumption 12 V | 200 - 850 mA |
Output energy | 10 J |
Output voltage | 10500 V |
Output voltage 500 Ω | 7500 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED lower power 50% | |
LED error check | |
Time delay | |
LED impulse bargraph | |
Reduced output terminal | |
Earth measuring terminal | |
LCD display | |
fencee Cloud connection | |
External antenna SMA connector | |
Number of connected devices | 1 - 12 |
Remote control | |
Data encoding | |
Transmission frequency | 869,525 MHz |
Transmitting power | + 22 dBm |
Base antenna range | 10 km |
TEOR. max. CEE | 300 km |
Range with external antenna | 30 km |
Low vegetation | 90 km |
Medium vegetation | 22 km |
High vegetation | 10 km |
Earthing 1 m | 5 × |
El. fence nets | 27 × |
Diameter | 290 mm |
Depth | 108 mm |
Weigth | 3186 g |
