Read about the benefits and comfort of Smart electric fencing in the words of renowned Shetland sheep breeder Mr Roman Cieslar.

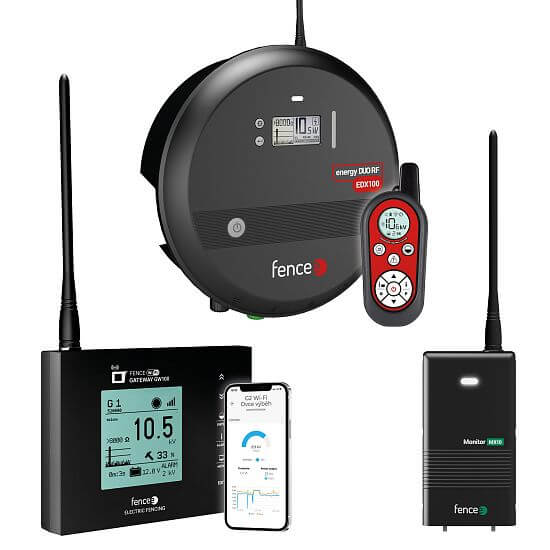

Product´s description Smart Farm electric fence set - RF source 10 J, driver - WiFi Gateway - MX10 monitor
A set of smart electric fence with RF energizer and central device FENCE WiFi GATEWAY GW100, which allows to connect the device to the fencee Cloud. This makes it possible to remotely monitor and control the fences with a mobile phone, tablet or PC. It also includes a handy remote control.
The fencee smart fence with 10 J
The powerful fencee energy DUO RF EDX100 combination energizer is also suitable for long fences with installation lengths of up to 90 km, in locations where maximum performance and reliability are required. The energizer is universally applicable for almost all animal species such as horses, sheep, cattle, pigs or goats. It can also be used to protect land or crops from forest animals and wild boars. It is also suitable for youngsters thanks to the yellow clamp with reduced output. This can be attached to the bottom row of the fence wire or to a second fence with smaller animals.
Central control device WiFi Gateway
In the smart electric fence kit, the central control FENCE WiFi GATEWAY GW100 is provided. Use the WiFi gateway to connect your devices to the fencee Cloud and control the paired devices anytime and virtually anywhere in the world via the free Android and iOS app. You can control up to 12 RF devices via 1 central WiFi Gateway. No registration fees or SIM cards are required to operate the system. No additional expenses, minimizing your costs of running your smart electric fence. Through fencee Cloud, you not only control the energizers, but also control them with notifications that appear instantly on your phone and email.
With fencee's Smart Farm system, you get maximum visibility of your electric fence anytime, anywhere. You can remotely switch off, control and monitor the device. In the event of a problem, you will receive an immediate alarm on your phone and email. All the benefits and features of electric fencing with the fencee Cloud app.
Monitoring device as a GIFT
In the kit you will also find the MX10 Monitoring Monitor waiting for you. When connected to the electric fence, it measures the voltage value. In the event of a drop below the set value, it sends an alert to the central Gateway, which immediately triggers an online alarm about the resulting voltage drop on the fence. The paired MX10 Monitor is controlled remotely via a mobile app. Control Monitors have many ways of installation, if you want to learn more, read the article on the different wiring of Control Monitors.
A handy remote control
Use the remote control to conveniently and safely turn on/off the power to your electric fence from up to 30 km away. The remote control has a backlit display with all important information, an audible alarm and receives error messages, e.g. when the voltage in the fence drops. More about remote control for RF energizers.
Basic and external RF antenna
The fencee smart RF devices are supplied with a base antenna that allows a communication range of 10 km. If you need to improve signal quality and transmission range, use the option to install an external antenna to increase the range up to 30 km. Read more about installing external antennas in our article.
Combined power supply
You can power the fencee combined RF energizers using a 230 V mains adapter or a standard car battery. This can also be used as a backup power supply in case of a power failure or blackout. The FENCE WiFi GATEWAY GW100 central unit is powered by a 230 V mains adapter as standard. In the event of a power failure, it is equipped with a backup power supply that supplies power for up to 12 hours.
Package contents:
- fencee energy DUO RF EDX100 energizer
- central control device FENCE WiFi GATEWAY GW100
- Monitor MX10 monitoring device
- remote control for RF energizers
Included with the energizer:
- 1× fencee energy DUO RF EDX100 energizer
- 1× power adapter 14 V / 2 A
- 1× basic RF antenna
- 1× ground cable 150 cm (eye-to-eye)
- 1× connection cable 100 cm (eyelet-heart)
- 1× battery cable for connecting the energy DUO RF to the battery
- 1× fencee warning plate
- operating instructions
Included in the package FENCE WiFi GATEWAY GW100:
- 1× basic RF antenna
- 1× 14 VDC power adapter
- 1× 9.6 V battery back up power supply
- 2× screw and dowel for installation
- operating instructions
Included with the MX10 Monitor:
- 1× basic RF antenna
- 2× Type C LR14 batteries
- 1× 100 cm connection cable
- 1× ground cable 150 cm with ground pin
- 2× pull-tabs for easy mounting of the monitor
- 1× magnet with lanyard for hanging on the neck
- operating instructions
Case Studies Smart Farms fencee Cloud
See how Smart Farm helps several of our customers with the fencee Cloud app, including a zoo, a cattle farm, a sheep farm or a horse ranch.
Energizer consumption 230 V | 6 - 14 W |
Energizer consumption 12 V | 200 - 850 mA |
Output energy | 10 J |
Output voltage | 10500 V |
Output voltage 500 Ω | 7500 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED lower power 50% | |
LED error check | |
Time delay | |
LED impulse bargraph | |
Reduced output terminal | |
Earth measuring terminal | |
LCD display | |
fencee Cloud connection | |
External antenna SMA connector | |
Number of connected devices | 1 to 12 |
Remote control | |
Data encoding | |
Transmission frequency | 869,525 MHz |
Transmitting power | + 22 dBm |
Base antenna range | 10 km |
TEOR. max. CEE | 300 km |
Range with external antenna | 30 km |
Low vegetation | 90 km |
Medium vegetation | 22 km |
High vegetation | 10 km |
Earthing 1 m | 5 × |
El. fence nets | 27 × |
Diameter | 290 mm |
Depth | 108 mm |
Weigth | 3186 g |
Manuals and files for downloading
Manual FENCE WiFi Gateway GW100 Manual fencee energy EDX Manual fencee Monitor MX10FAQ
- Troubleshooting
- Functional electric fence principles - troubleshooting tips
- How does an electric fence work?
Protected by utility model
Smart Farm fencee Cloud system is protected in the EU utility model Nº 1870632, Nr. 202018102939, Nr. 31675
