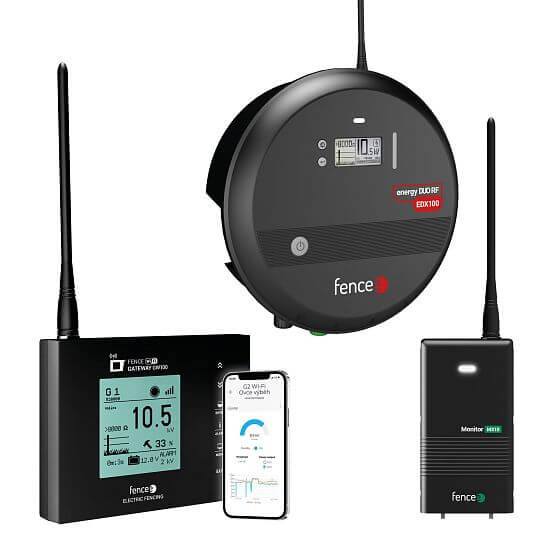

Product´s description Smart Farm electric fence system – RF energizer 10 J – WiFi Gateway GW100 – Monitor MX10
Smart electric fencing kit with powerful RF generator and central unit FENCE WiFi GATEWAY GW100. The central unit allows instant connection of the device to the FENCEe Cloud. This makes it possible to remotely monitor and control the fencing with a mobile phone, tablet or computer.
Electric fence generator
The powerful fencee energy DUO RF EDX100 combined generator is also suitable for long fences with installation lengths of up to 90 km, in places where maximum performance and reliability are required. The generator is universally applicable for almost all animal species such as horses, sheep, cattle, pigs or goats. It will also find its use when protecting land or crops from forest animals, wild boars. It is also suitable for young animals thanks to the yellow clamp with reduced output. This can be connected to the bottom row of the fence wire or to a second fence where smaller animals or young animals are moving around.
Central and control unit

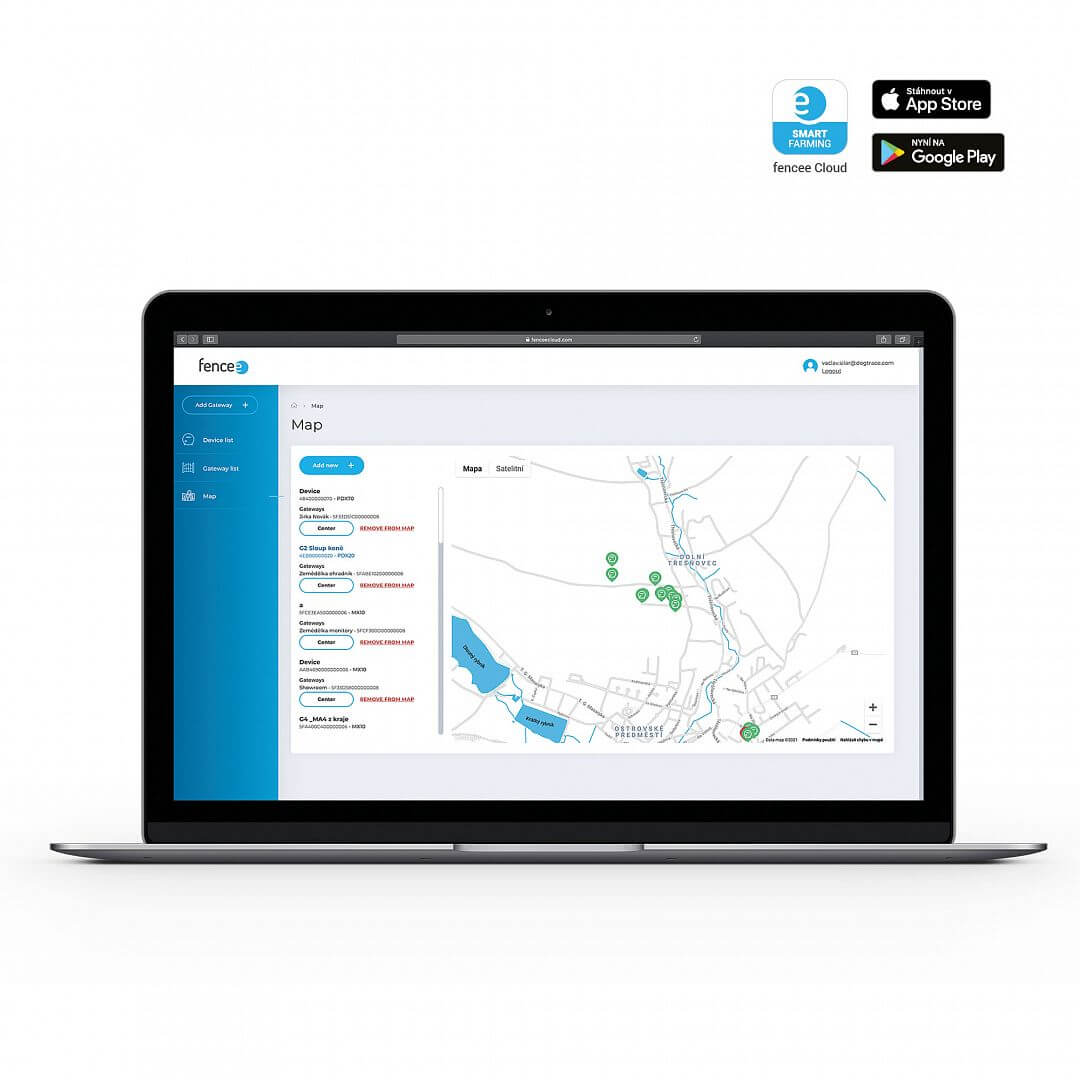

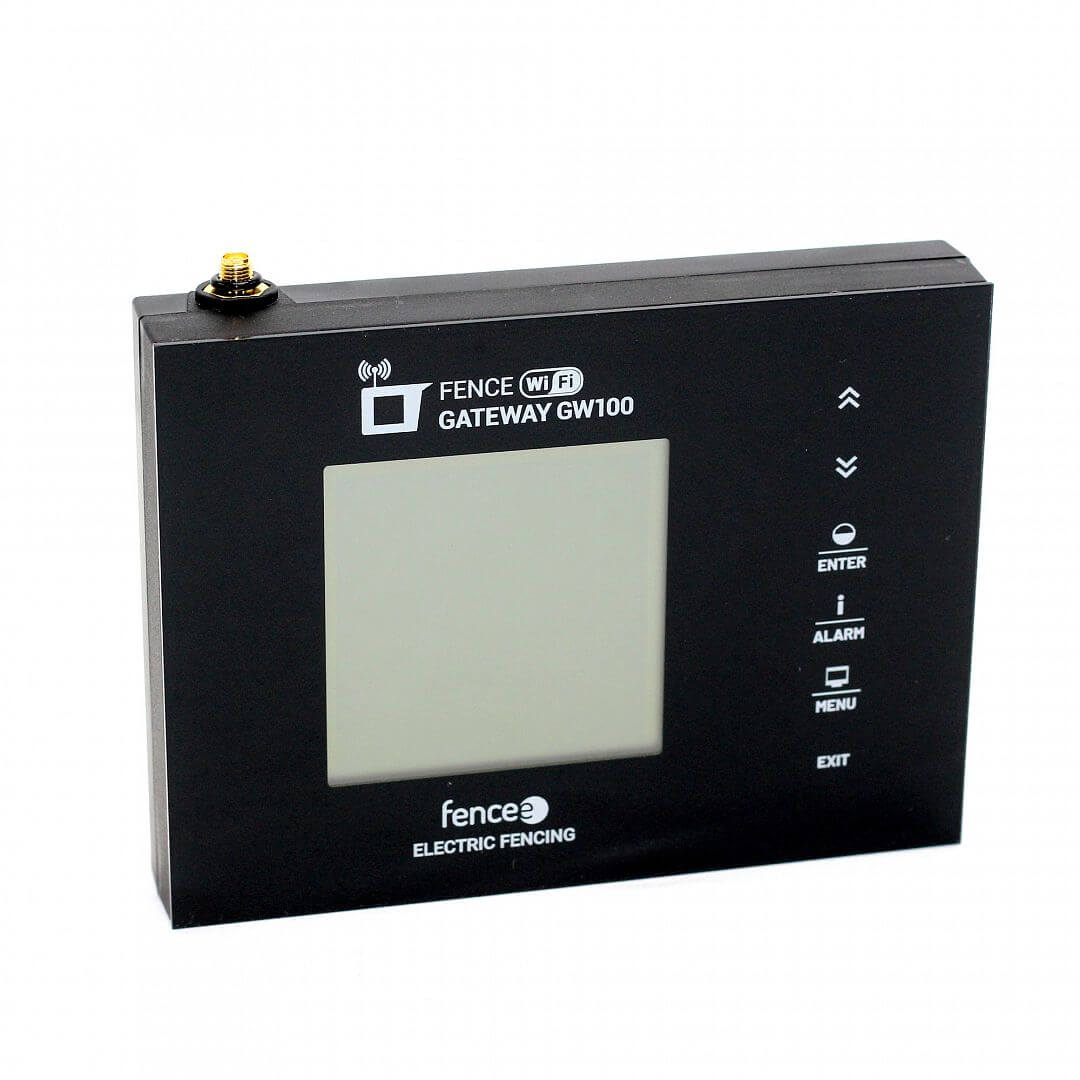

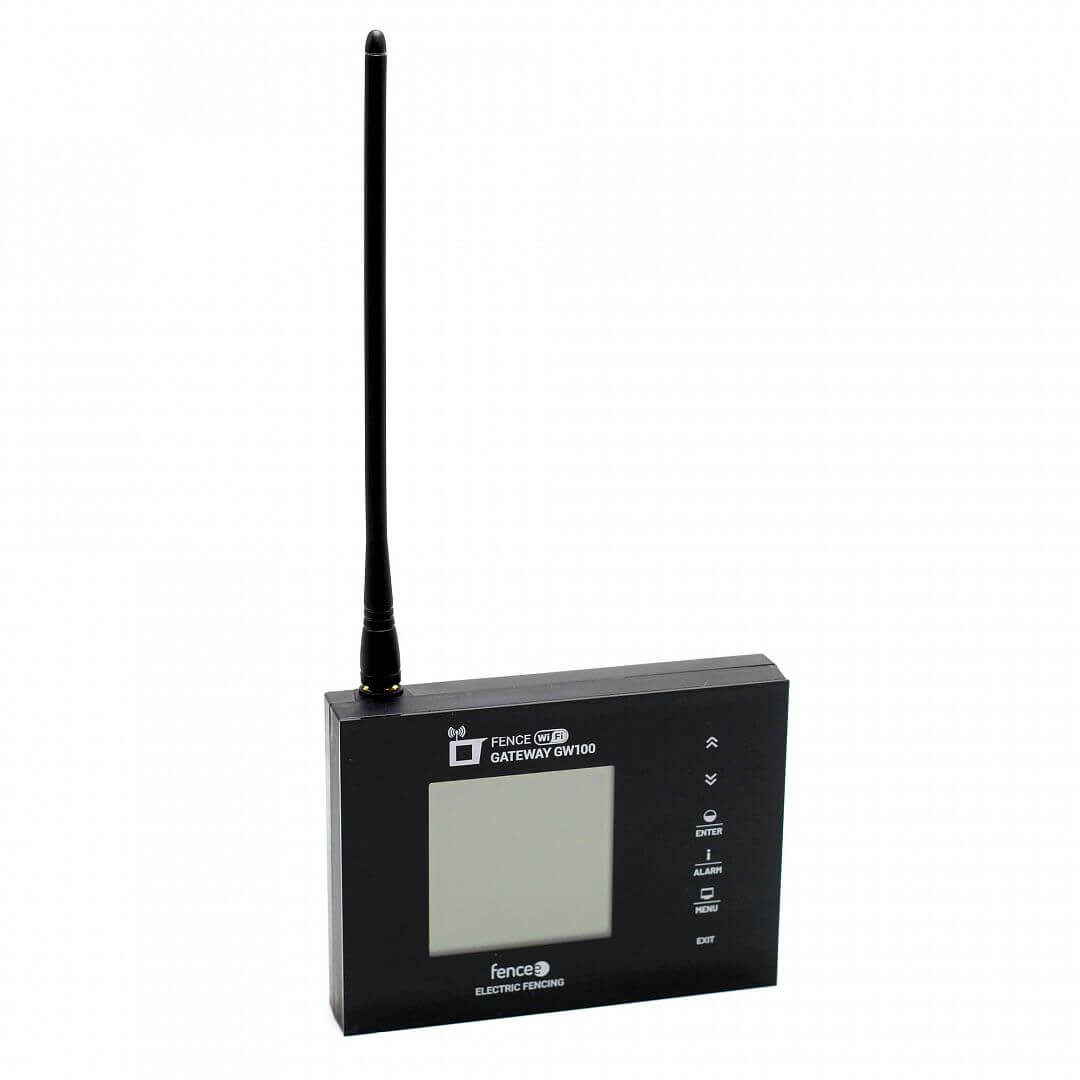

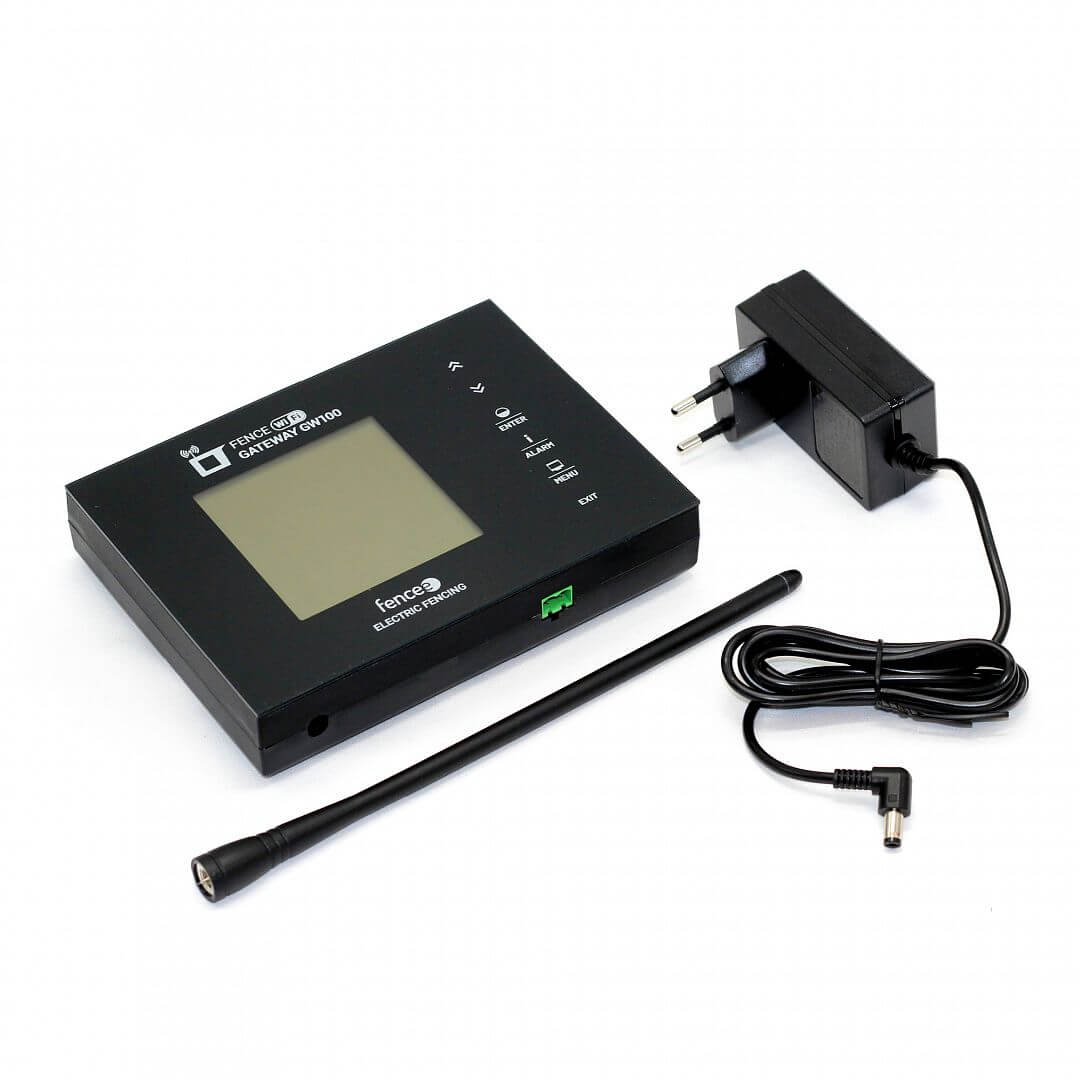

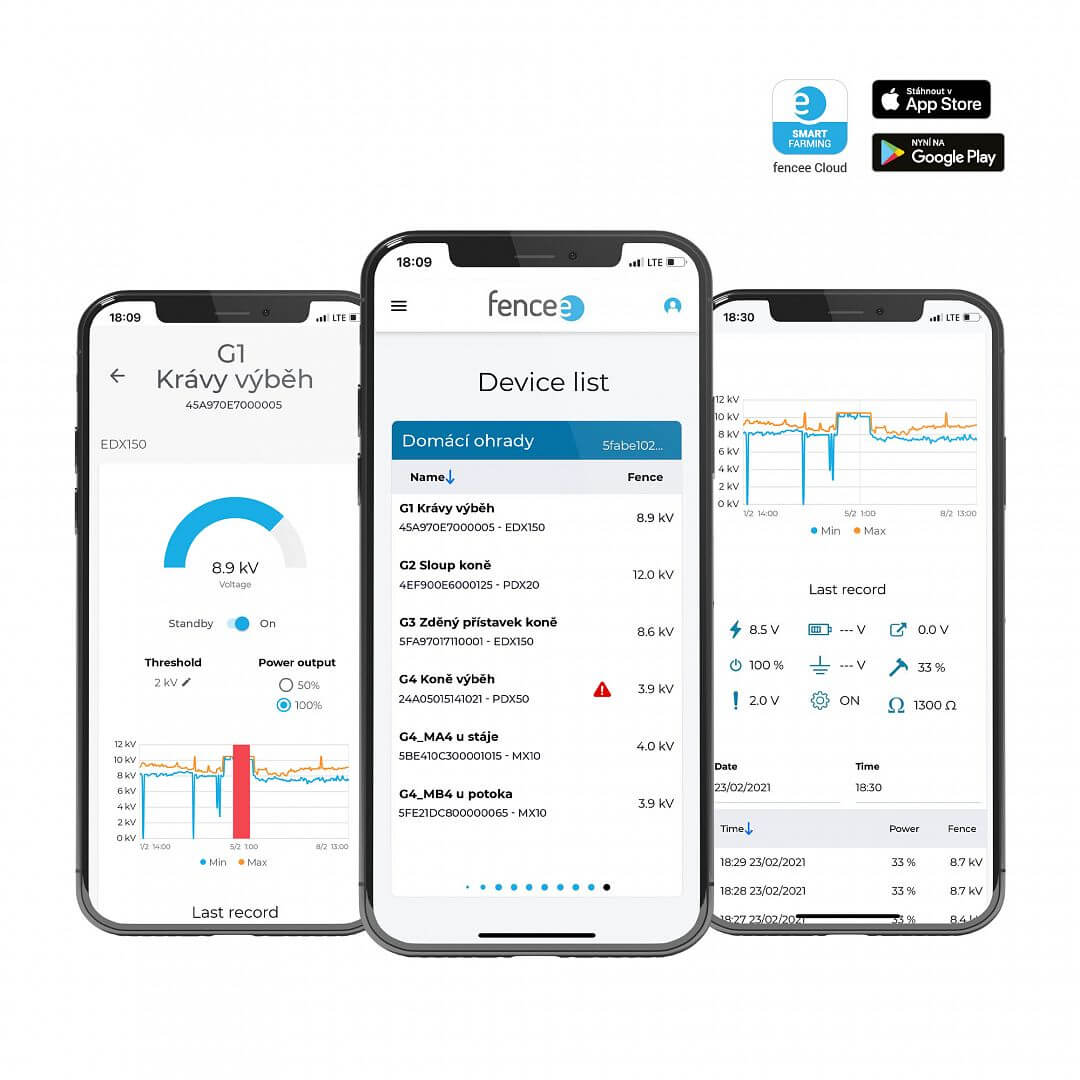

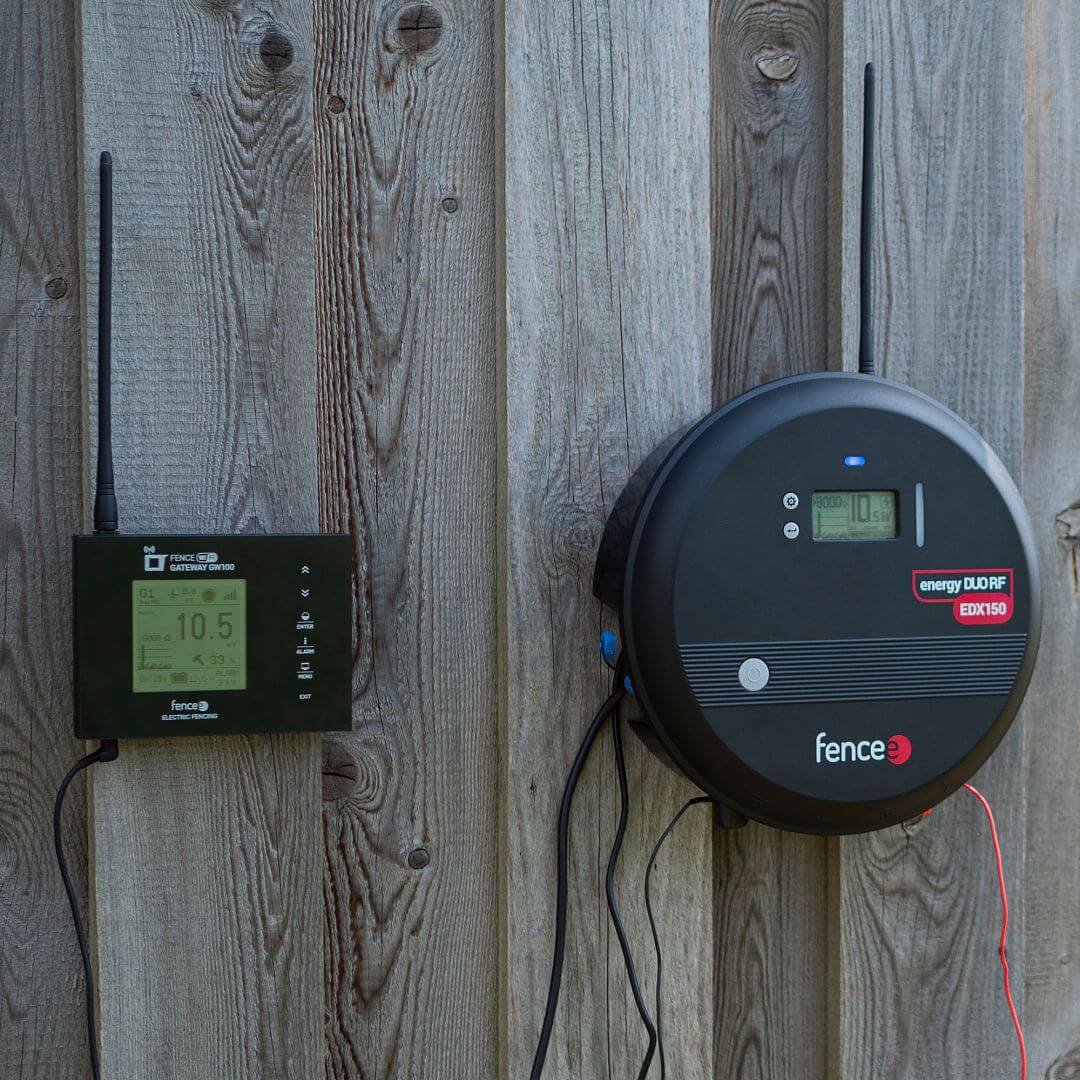

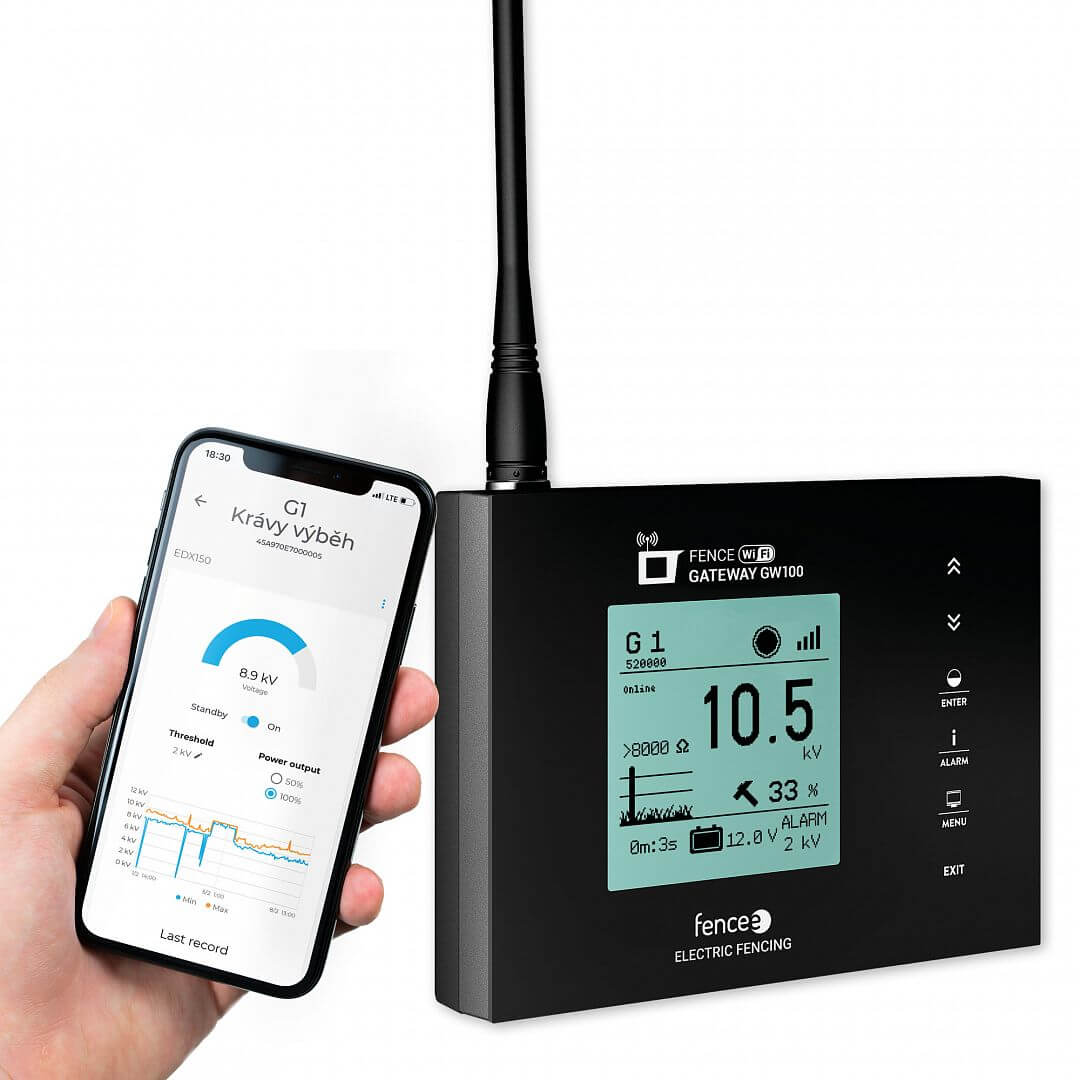

The smart electric fence kit comes with a central control FENCEe WiFi GATEWAY GW100. Use the WiFi Gateway to connect your devices to the fencee Cloud and control the paired devices at any time and virtually anywhere in the world via the free Android and iOS app. You can control up to 12 RF devices via 1 central WiFi Gateway. No registration fees or SIM cards are required to operate the system. No additional expenses, minimizing your costs for running the smart electric fence. Via the fencee Cloud , you not only control the generators, but also check them via notifications that appear instantly on your phone and email.

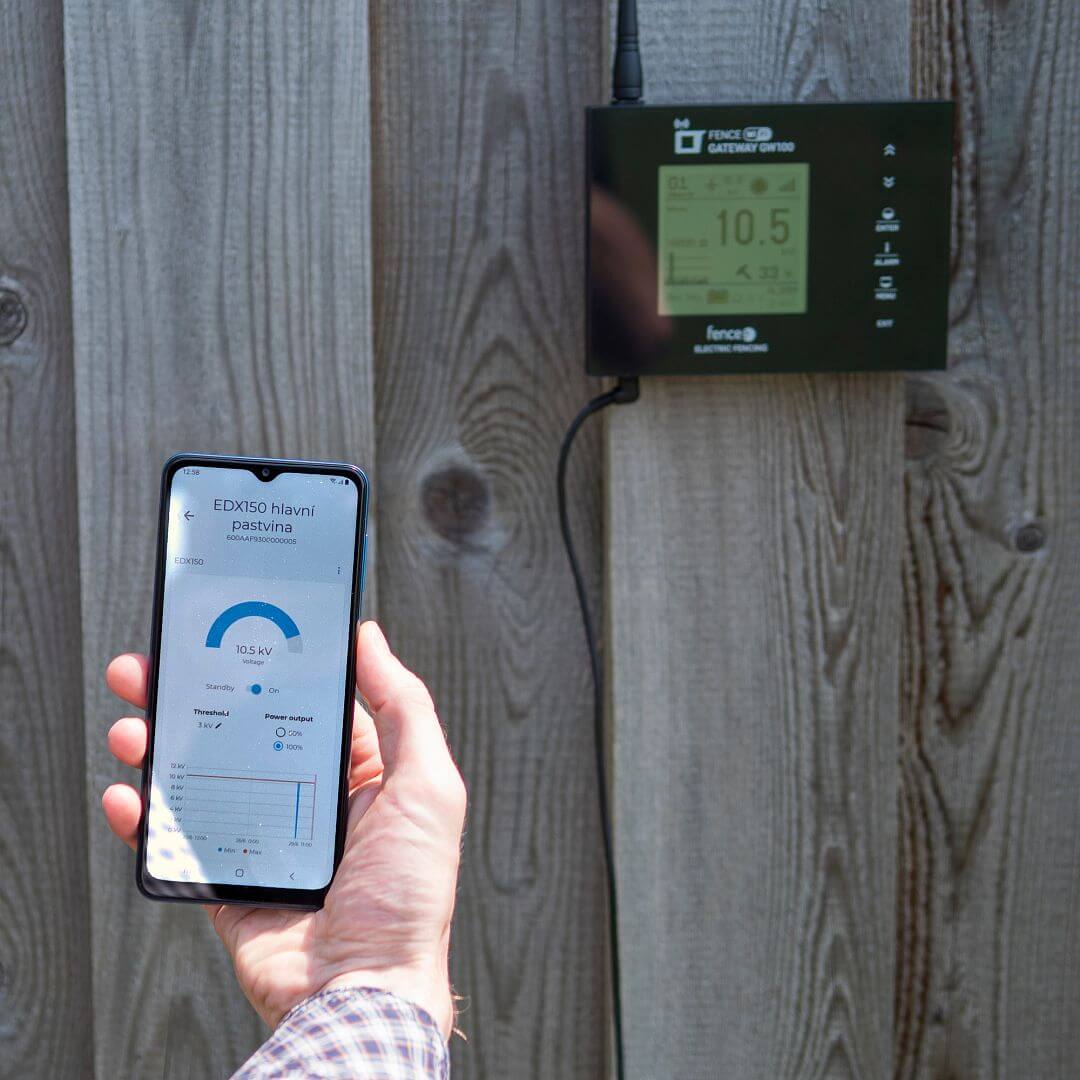

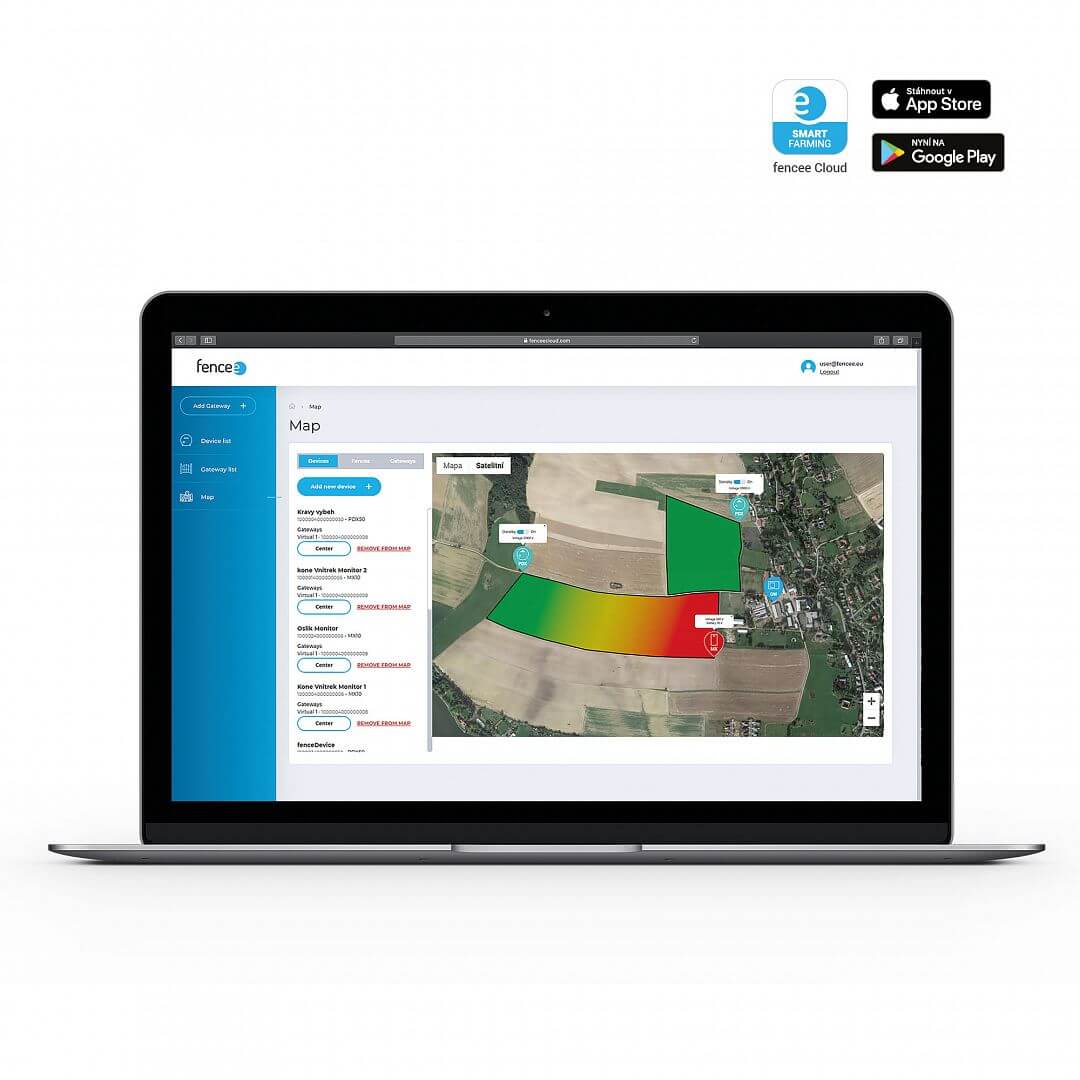

With the fencee smart farm system , you get maximum visibility of your electric fence at any time and from anywhere. You can remotely switch off, control and monitor the device. In the event of a problem, you will receive an immediate alarm on your phone and in your email. Read all the benefits and features of electric fences with the fencee Cloud app in our article.
Monitoring device as a GIFT

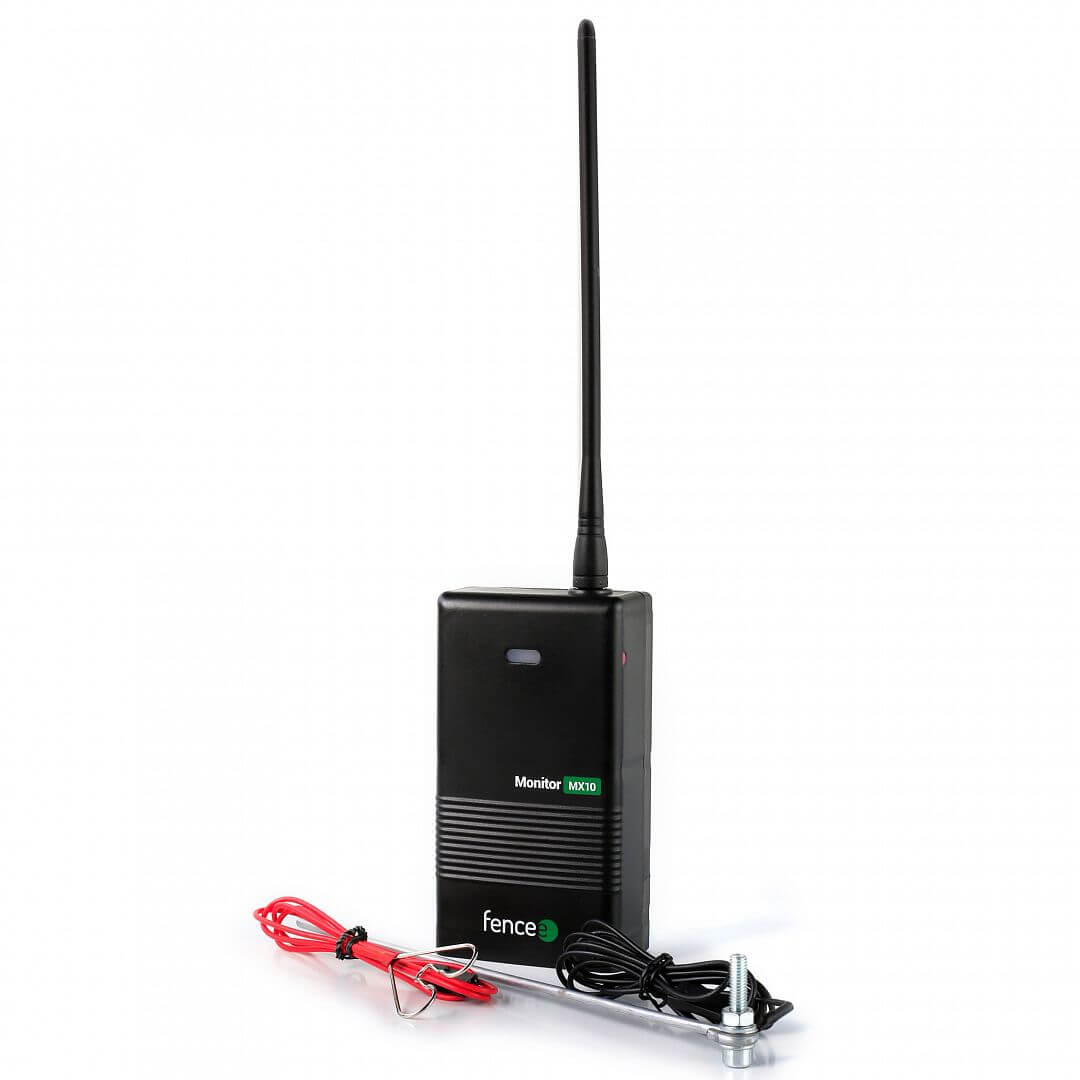

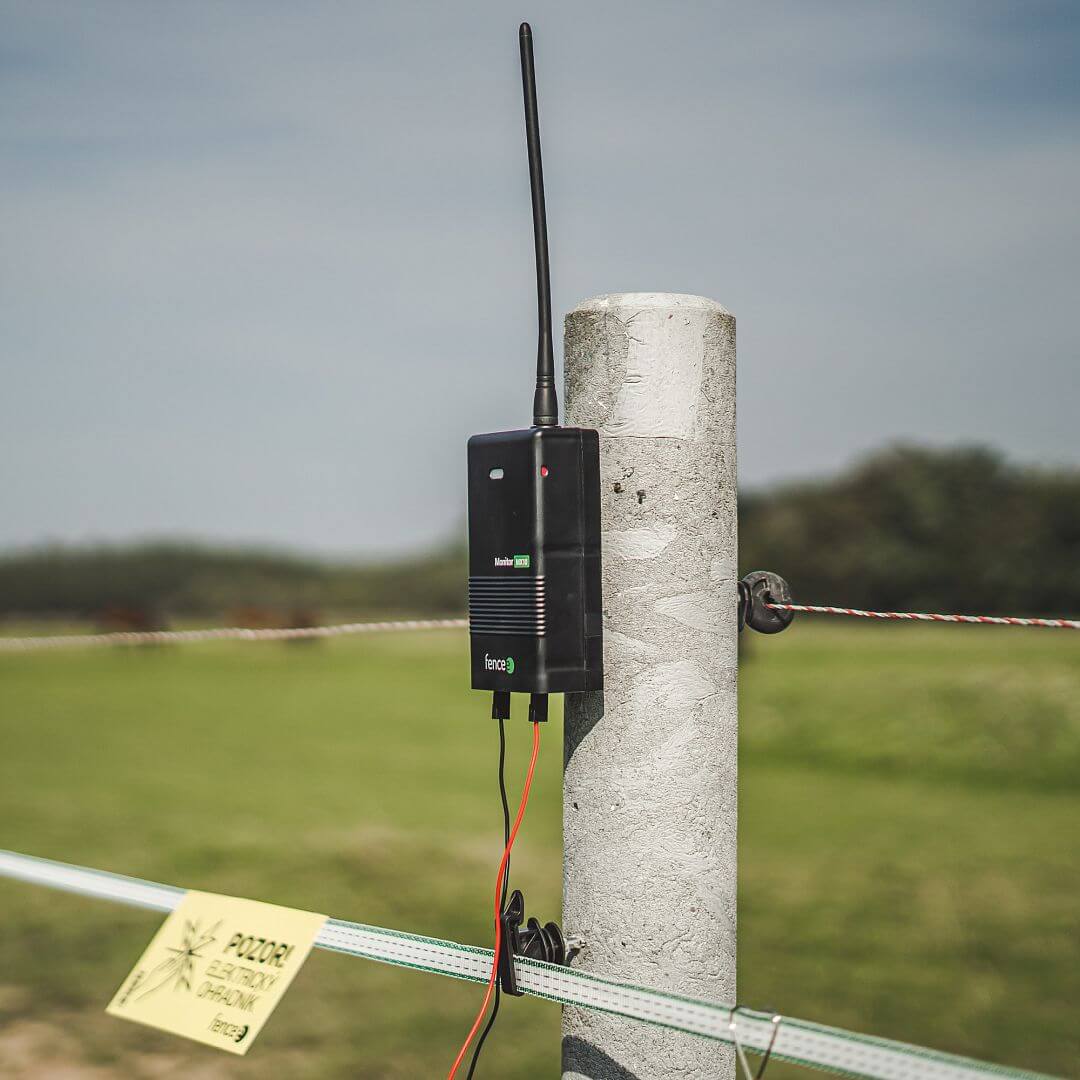

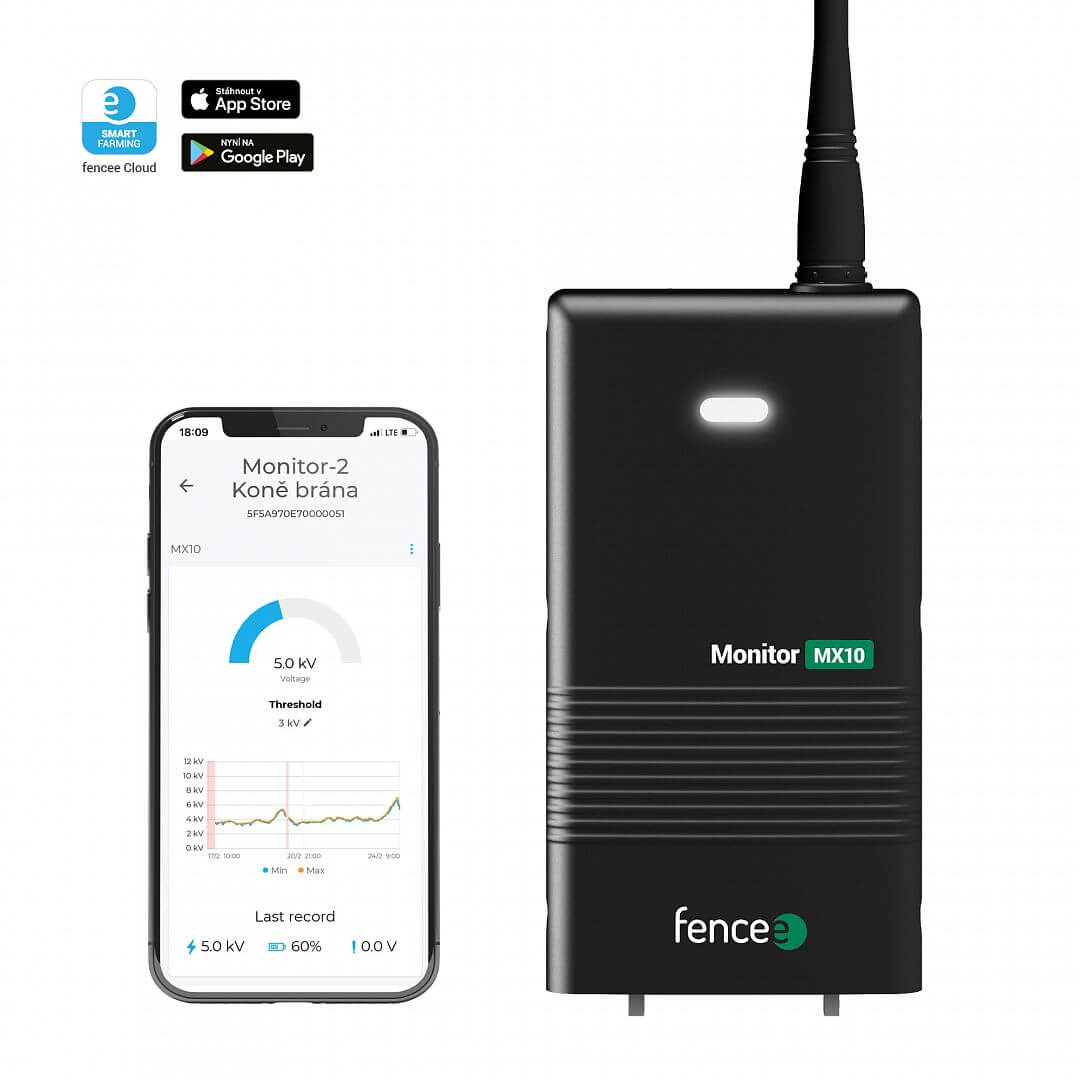

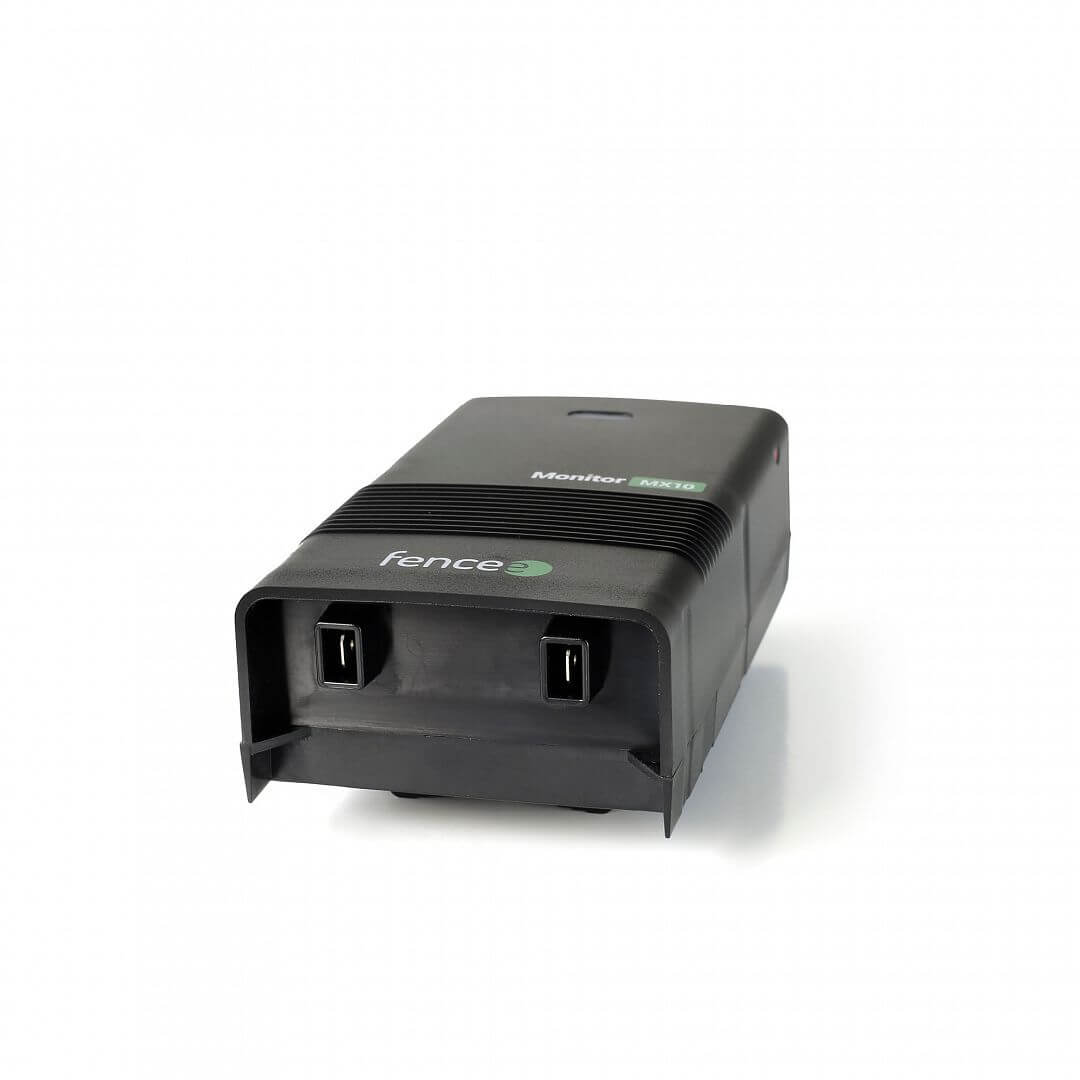

The MX10 Monitoring Monitor is also waiting for you in the kit. When connected to the electric fence , it measures the voltage value. If it drops below the set value , it sends an alert to the central Gateway, which immediately triggers an online alarm about the voltage drop occurring on the fence. You can control the paired MX10 Monitor remotely using the mobile app. Monitoring Monitors have many ways of installation, if you want to learn more, read the article about the different wiring of Monitoring Monitors.
Base and External RF Antenna

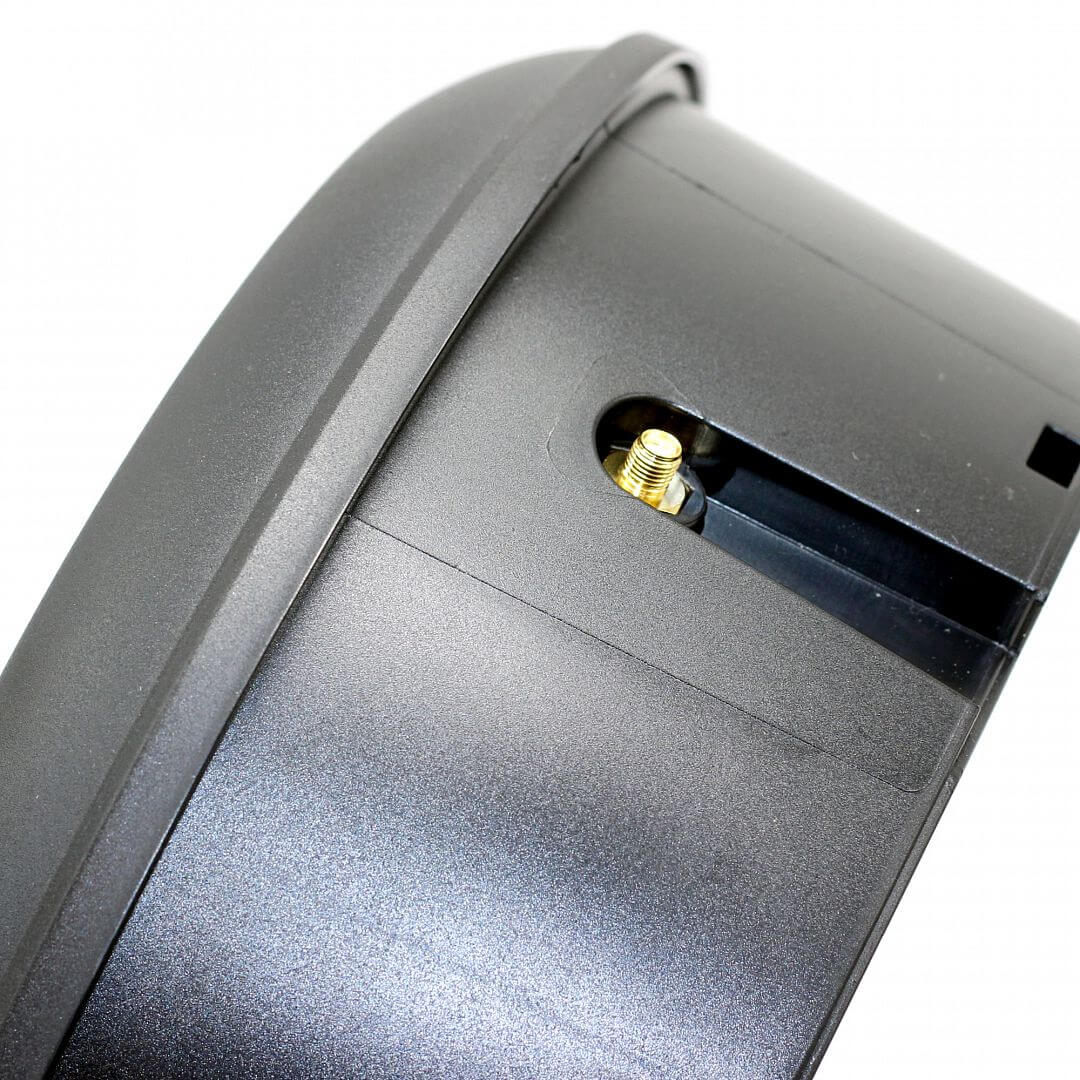

The fencee smart RF devices come with a basic antenna that allows a communication range of 10 km. In case you need to improve the signal quality and transmission range, use the option of installing an external antenna to increase the range up to 30 km. Read more about installing external antennas in our article.
Combined power supply

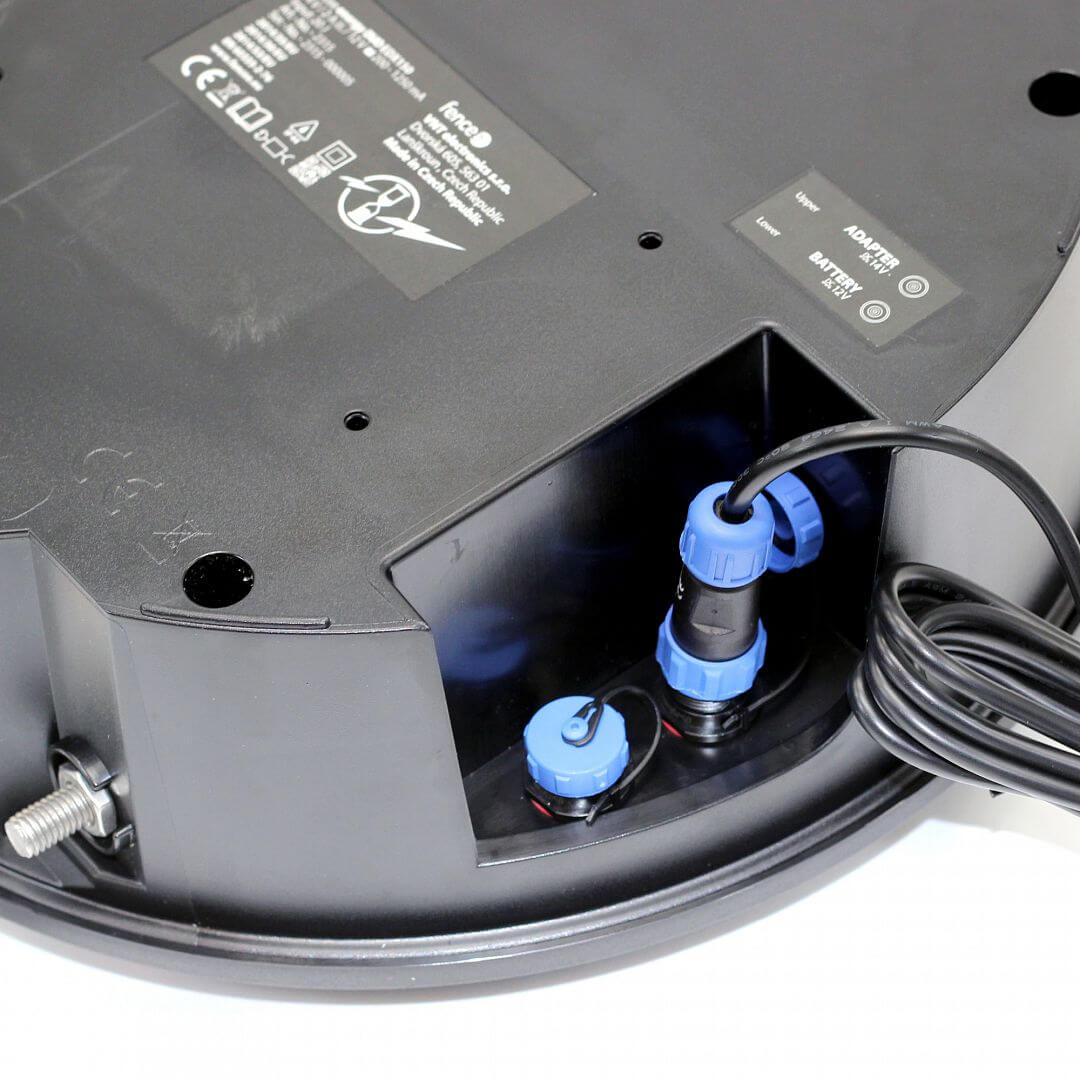

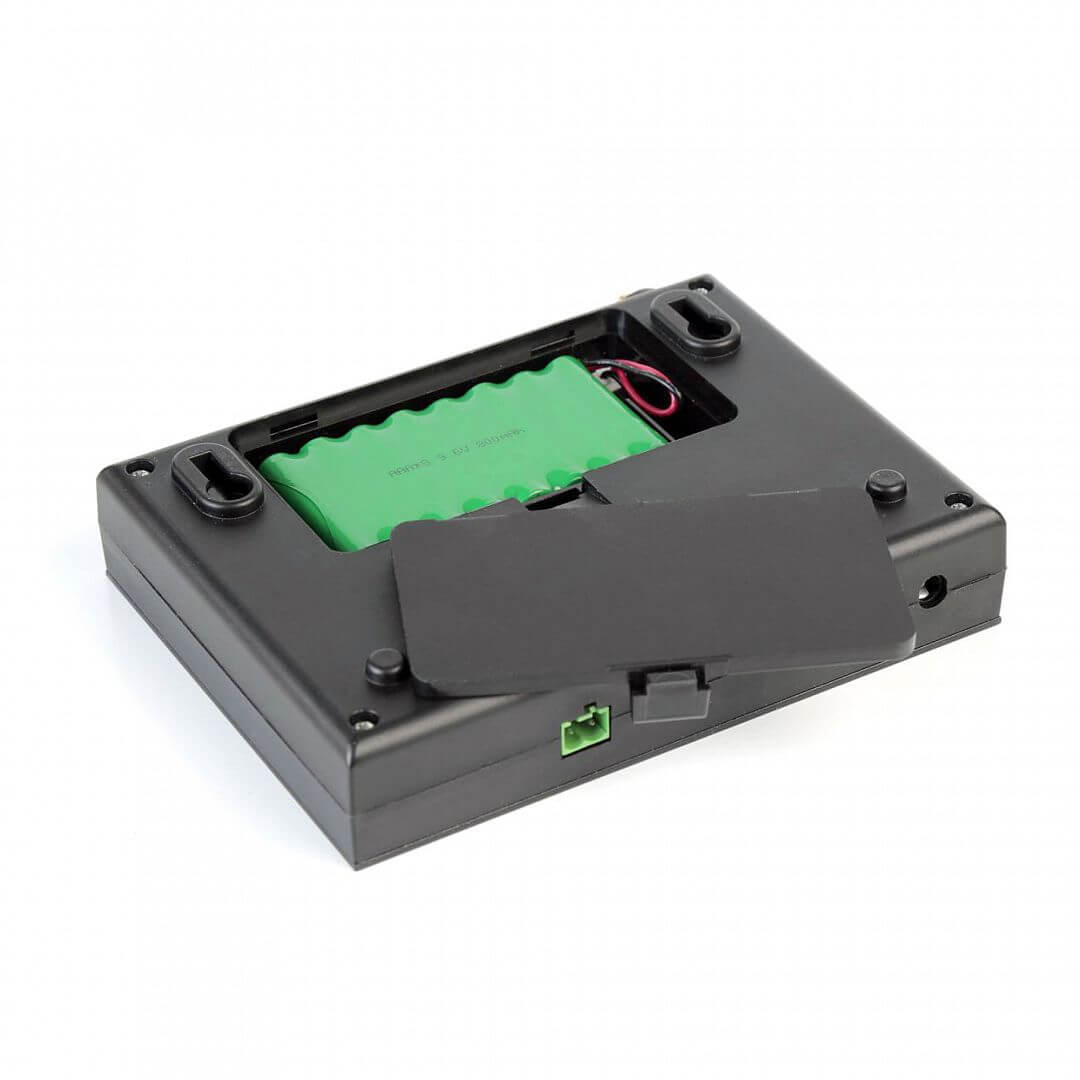

The fencee RF generators can be powered using a 230 V mains adapter or a standard car battery. This can also be used as a backup power supply in the event of a power failure or power outage. The FENCE WiFi GATEWAY GW100 central unit is powered by a 230 V mains adapter as standard. In the event of a power failure , it is equipped with a backup power supply that delivers power for up to 12 hours.
If you need any advice on choosing a suitable power supply or other accessories, please do not hesitate to contact our technical department, we will be happy to help you.
Package contents:
- fencee energy DUO RF EDX100 generator
- central control device FENCE WiFi GATEWAY GW100
- FREEMonitor MX10 monitoring device
Generator package includes:
- 1× fencee energy DUO RF EDX100 generator
- 1× power adapter 14 V / 2 A
- 1× basic RF antenna
- 1× ground cable 150 cm (eye-to-eye)
- 1× connection cable 100 cm (eyelet-heart)
- 1× battery cable for connecting the energy DUO RF to the battery
- 1× fencee warning plate
- operating instructions
Included in the package FENCE WiFi GATEWAY GW100:
- 1×basicRF antenna
- 1× 14 VDCpoweradapter
- 1× 9.6 V batterybackuppower supply
- 2× screw and dowel for installation
- operating instructions
Included with the MX10 Monitor:
- 1× basic RF antenna
- 2× Type C LR14 batteries
- 1× 100 cm connection cable
- 1× ground cable 150 cm with ground pin
- 2× pull-tabs for easy mounting of the monitor
- 1× magnet with lanyard
- operating instructions
Case Studies Smart Farms fencee Cloud
See how Smart Farm with fencee Cloud helps several of our customers, including a zoo, cattle farm, sheep farm or horse ranch.
Energizer consumption 230 V | 6 - 14 W |
Energizer consumption 12 V | 200 - 850 mA |
Output energy | 10 J |
Output voltage | 10500 V |
Output voltage 500 Ω | 7500 V |
ON/OFF | |
LED ON/OFF | |
LED impulse | |
LED low battery voltage | |
LED lower power 50% | |
LED error check | |
Time delay | |
LED impulse bargraph | |
Reduced output terminal | |
Earth measuring terminal | |
LCD display | |
fencee Cloud connection | |
External antenna SMA connector | |
Number of connected devices | 1 - 12 |
Remote control | |
Data encoding | |
Transmission frequency | 869,525 MHz |
Transmitting power | + 22 dBm |
Base antenna range | 10 km |
TEOR. max. CEE | 300 km |
Range with external antenna | 30 km |
Low vegetation | 90 km |
Medium vegetation | 22 km |
High vegetation | 10 km |
Earthing 1 m | 5 × |
El. fence nets | 27 × |
Diameter | 290 mm |
Depth | 108 mm |
Weigth | 3186 g |
